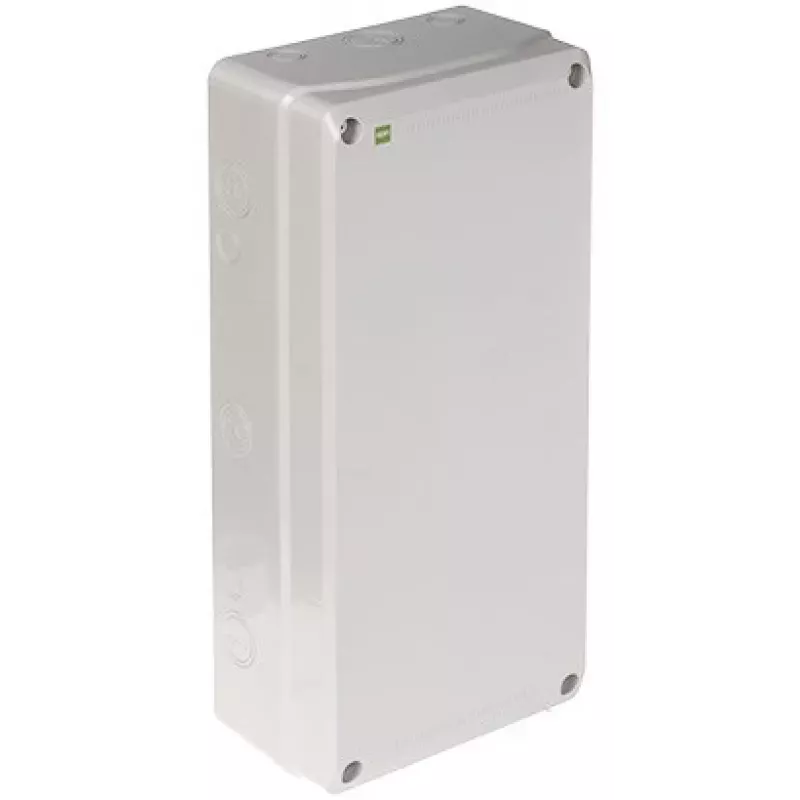

ELEKTRO-PLAST coperchio ermetico industriale ABS 506x230x130 IP65

In a bustling manufacturing plant, technicians need a reliable enclosure to protect sensitive electrical connections from dust and water. The ELEKTRO-PLAST 2752-00 is a robust hermetic cover made from ABS, sized 506x230x130 mm, and rated IP65. It provides a secure, sealed environment for terminal blocks, relays, and other components, ensuring uninterrupted operation even in demanding industrial settings.

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Ingress Protection: IP65 (dust-tight and protected against water jets)
• External dimensions: 506 mm (L) x 230 mm (W) x 130 mm (H)
• Colour: Light Grey (RAL 7035)
• Lid type: Opaque, fastened with 8 plastic screws
• Impact resistance: IK07
• Flammability rating: UL94-HB
• Gasket material: Polyurethane (PU)
• Mounting: Wall mountable, with internal bosses for DIN rail or mounting plate
• Operating temperature: -25°C to +60°C
• UV resistant, halogen-free, RoHS compliant

Why choose it

This enclosure combines durability with ease of installation. The ABS housing offers excellent impact resistance and UV stability, making it suitable for both indoor and outdoor use. The IP65 rating ensures protection against dust ingress and low-pressure water jets from any direction. The polyurethane gasket provides a reliable seal, while the 8 plastic screws allow quick access without tools. Internal mounting bosses simplify the installation of DIN rails or mounting plates, saving time and effort.

Ideal use cases

• Industrial control panels and junction boxes
• Outdoor electrical installations
• Harsh environments with dust and moisture
• Protection of terminal blocks, relays, and PCBs

Good to know

The enclosure is halogen-free and RoHS compliant, meeting environmental standards. It is UV resistant, preventing discolouration and degradation when exposed to sunlight. The operating temperature range of -25°C to +60°C allows use in a wide variety of climates. Wall mounting is straightforward, and the internal bosses provide flexibility for component installation.
