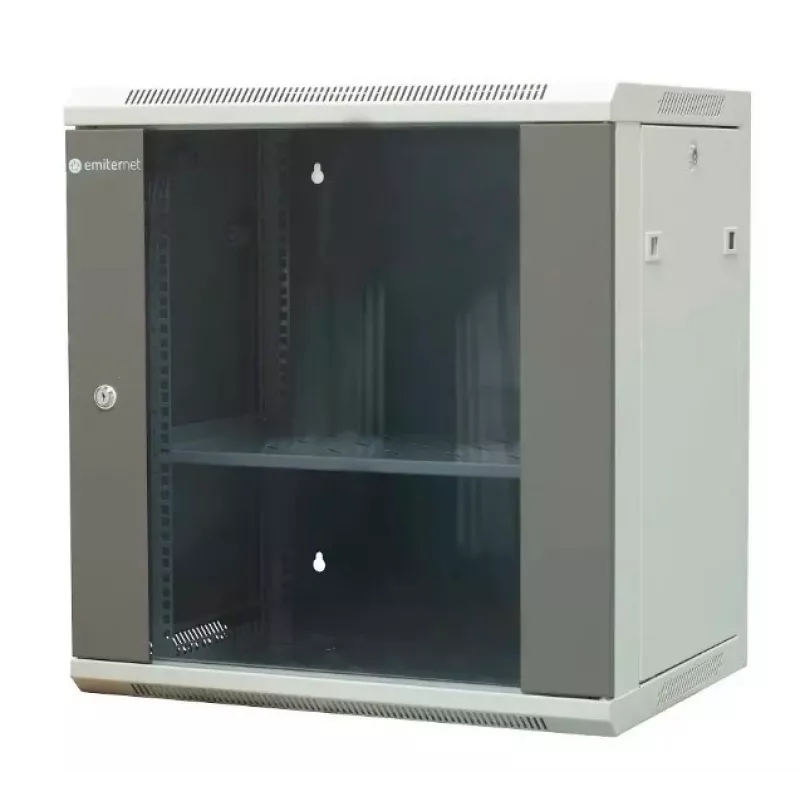

EMITER EM/AP6412 Armadio rack da parete 12U 600x450x635mm frontale in vetro nero

Managing network equipment in limited spaces often means choosing between accessibility and security. The EMITER EM/AP6412 solves this by providing a compact 12U wall-mount enclosure that keeps your patch panels, switches, and small servers organized, protected, and easily accessible. With its tempered glass front door and sturdy steel construction, it is ideal for offices, retail back rooms, or industrial environments where floor space is at a premium.

Who is it for

This cabinet is built for IT administrators, system integrators, and small business owners who need a reliable, space-saving solution for housing 19-inch rack equipment. It is particularly suited for network closets, classrooms, or branch offices where a full-size floor rack is impractical. The lockable glass door provides security while allowing visual monitoring of equipment LEDs without opening the cabinet.

Main features

• 12U capacity for standard 19-inch rack equipment
• Tempered glass front door with lock for security and visibility
• Removable steel side panels for easy access during installation and maintenance
• SPCC cold rolled steel construction with durable powder-coated finish (RAL 9005 black)
• Wall-mount design with included mounting hardware
• Top and bottom cable entry points for flexible cable management
• Passive ventilation slots to promote airflow and prevent overheating
• Pre-assembled for quick deployment
• Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, and DIN41494 PART7 standards

Specifications

• Rack type: Wall-mount
• Rack units: 12U
• External dimensions (W x D x H): 600 x 450 x 635 mm
• Material: SPCC cold rolled steel
• Front door: Tempered glass, lockable
• Side panels: Removable steel
• Colour: Black (RAL 9005)
• Maximum load capacity: 60 kg
• Ventilation: Passive slots
• Cable entry: Top and bottom
• Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7

Tips

For optimal airflow, avoid blocking the ventilation slots and leave at least 5 cm clearance above the cabinet. Use the removable side panels to route cables neatly during installation. The lockable glass door allows visual checks of equipment status without compromising security.
