Equip Cavo patch slim Cat.6A U/UTP 0,25m bianco 10000 Mbit/s

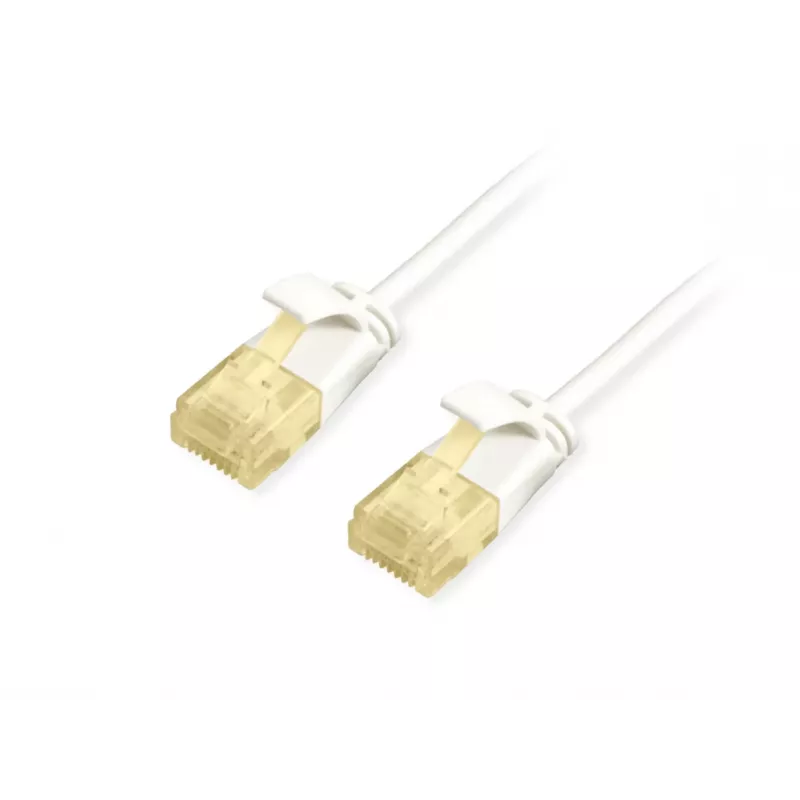

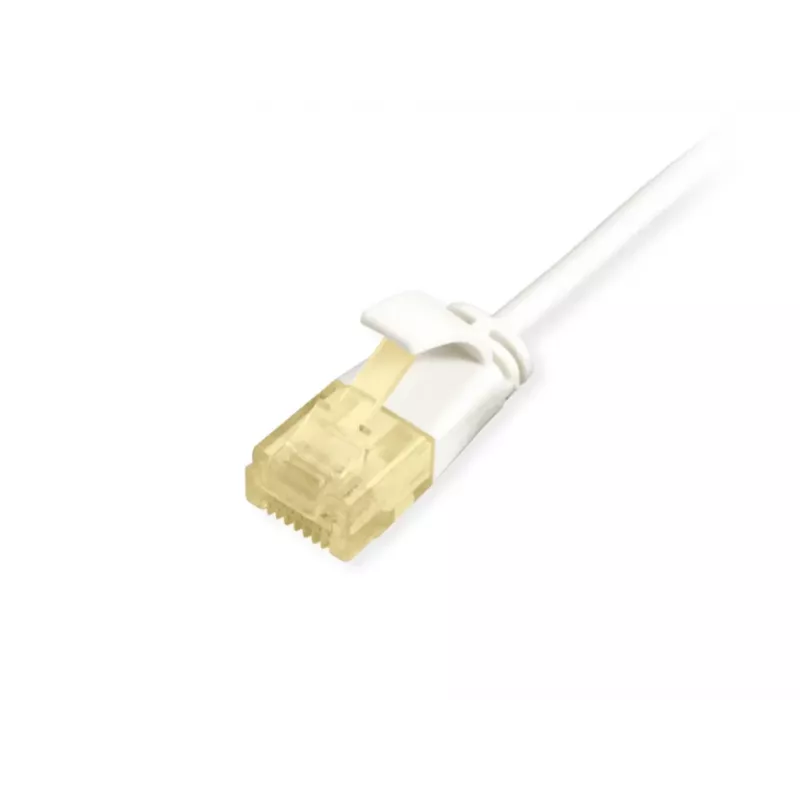

The Equip Cat.6A U/UTP Slim Patch Cable 0.25m in white is a slim, high-performance network patch cable for data centers, enterprise networks and dense installations. With a reduced diameter (32 AWG) and stranded copper conductors, it supports 10 Gigabit Ethernet at frequencies up to 500 MHz while improving cable management and airflow in crowded racks and patch panels.

Advantages

The unshielded twisted-pair (U/UTP) construction provides reliable transmission in low to moderate electromagnetic interference environments while keeping the cable flexible for frequent reconfiguration. Molded RJ-45 connectors with strain relief increase connector durability, and LSZH material combined with RoHS compliance ensures safer installation in confined spaces.

Suitable for

• Short patch connections in racks and patch panels
• 10GBase-T network links up to 10 Gbit/s
• PoE and PoE+ devices requiring short cable runs
• High-density cabling environments where space and airflow matter

Key specifications

• Cable type: Cat.6A U/UTP (unshielded twisted pair)
• Conductor: Stranded bare copper, 32 AWG
• Bandwidth: up to 500 MHz
• Transmission: up to 10 Gbit/s (10GBase-T)
• Length: 0.25 m
• Connectors: RJ-45 straight male to RJ-45 straight male
• PoE support: suitable for PoE, PoE+
• Sheath material: LSZH (Low Smoke Zero Halogen)
• Standards: ISO/IEC 11801, EN 50173
• Colour: White

How to use

Plug one RJ-45 connector into the network port or patch panel and the other into the target device or adjacent patch point. Use the 0.25 m length for short interconnects to minimize cable clutter; ensure connectors click into place to secure the connection. For best performance, avoid tight bends near the connector and maintain proper routing within the rack or cabinet.

Recommendations

For high-density installations, route multiple slim patch cables in organized bundles or cable managers to preserve airflow. Do not exceed recommended bend radius and avoid prolonged exposure to strong electromagnetic sources to maintain optimal signal integrity.
