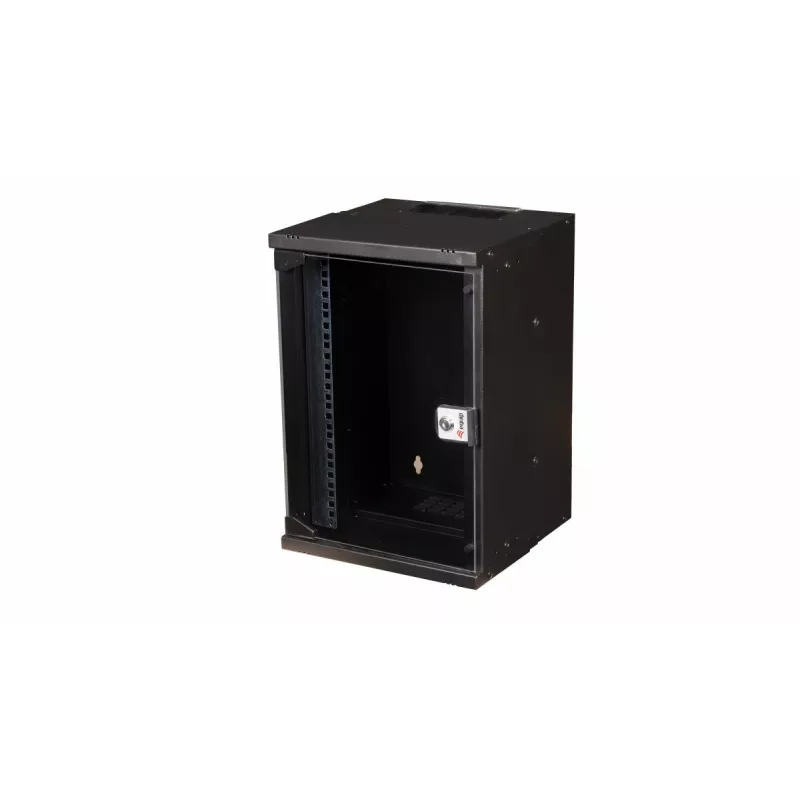

Equip Eco Mount Armadio 10' , 09U, 300X300MM, RAL9005 Nero

The Equip Eco Mount Wall mounted rack EWM-09-3030-B is a 9U, 10" cabinet designed for secure wall installation and neat cable management. Constructed from 1.5 mm steel sheet with a black finish (RAL 9005), this lightweight cabinet (5.93 kg) provides secure housing for network components while allowing ventilation through integrated top slots. The door can be reversed from right to left, and top and bottom cable entries are covered with removable plastic covers for protected cable routing. The product is supplied unassembled and includes an instructional video for straightforward assembly.

Advantages

Durable 1.5 mm steel construction ensures physical protection while keeping the unit lightweight for easy wall mounting. The reversible door and removable cable-entry covers simplify installation and cable routing. Integrated ventilation slots support equipment cooling. Available in a 10" (9U) format compatible with standard rack equipment and finished in RAL 9005 for a discreet appearance.

Suitable for

• Small server or network switches installation
• Patch panels and cable termination points
• Office, retail, or telecom wall-mounted network points
• Environments requiring a compact 9U 10" wall cabinet

Key specifications

• Rack capacity: 9U (10")
• External dimensions (HxWxD): 463 mm x 153 mm x 300 mm
• Maximum mounting depth: 270 mm
• Weight: 5.93 kg
• Material thickness: 1.5 mm steel sheet
• Colour: Black (RAL 9005)

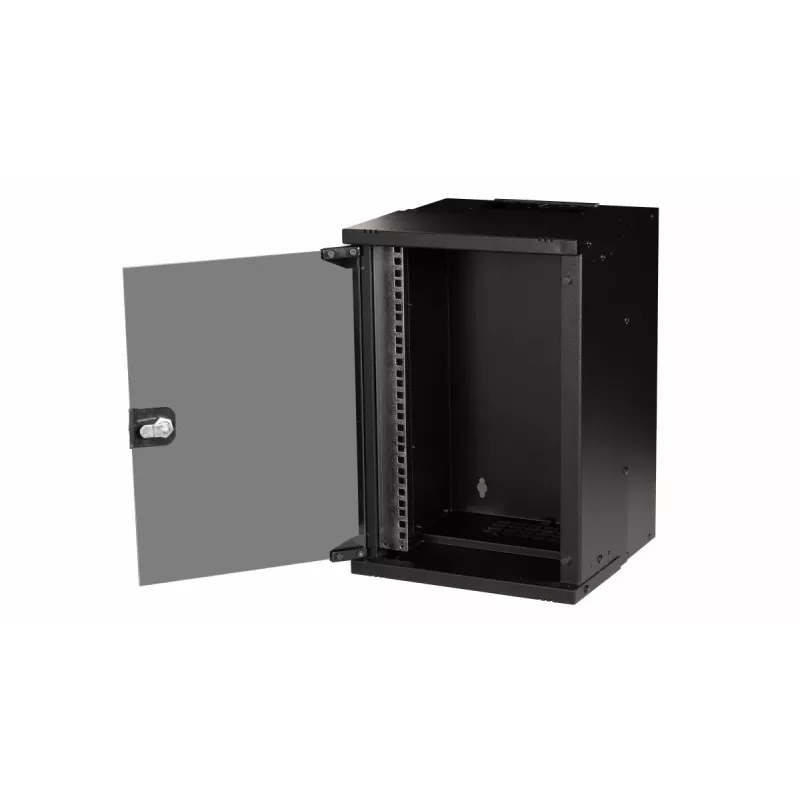

• Door: reversible (right/left)

How to use

Mount the cabinet to a suitable load-bearing wall using appropriate fixings (not included). Open the cabinet door, install 10" rack equipment into the 9U mounting space using standard rack screws, and route cables through the top or bottom cable entries after removing the plastic covers. Ensure devices are mounted within the specified maximum mounting depth (270 mm) and keep ventilation slots unblocked for proper airflow. Follow the supplied assembly video for step-by-step guidance.

Recommendations

Install the cabinet where wall structure can safely support the combined weight of the cabinet and installed equipment. Use proper grounding for network devices and avoid placing heat-generating equipment without additional ventilation or cooling. For tidy cable management, pair the cabinet with appropriate cable management accessories or shelves from the same Equip range.
