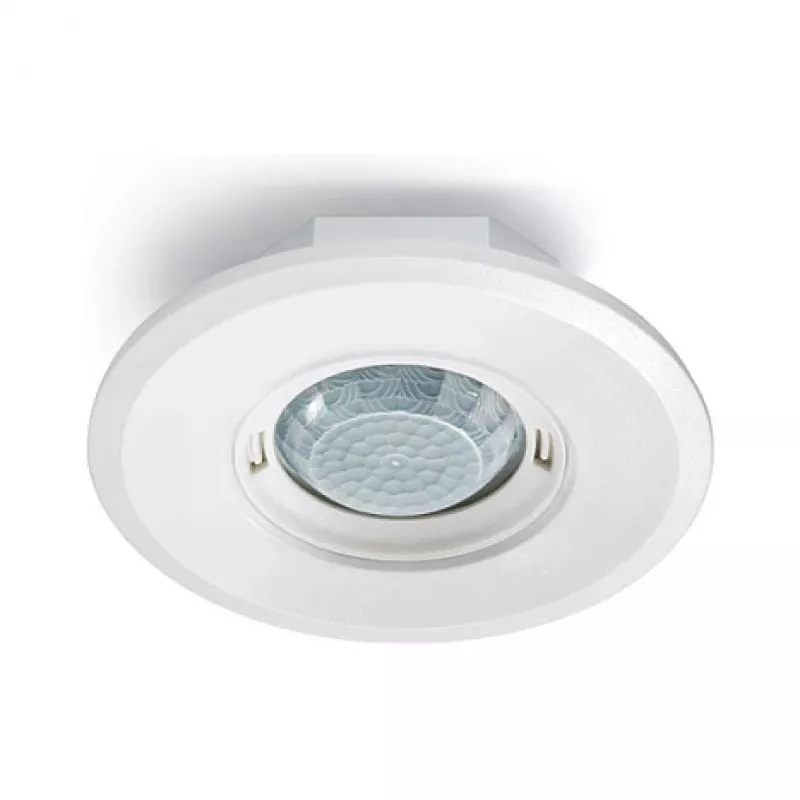

ESYLUX MD-FLAT 360i/8 rilevatore di presenza a soffitto con filo bianco IP20 2000 Lux 2,5m

The ESYLUX MD-FLAT 360i/8 is a high-quality wired presence detector designed for ceiling flush mounting. With a 360° detection angle and an 8-meter radial range at 2.5m mounting height, it provides reliable presence detection for indoor applications. The device features an adjustable light sensor from 10 to 2000 lux, making it ideal for automatic lighting control in offices, corridors, and other commercial spaces.

Advantages

Energy-efficient presence detection with adjustable time delay (10s to 60min) and light threshold. The semi-automatic and fully automatic modes offer flexibility, while the remote control capability allows easy configuration. The UV-stabilised polycarbonate housing ensures durability.

Suitable for

• Office rooms and meeting rooms
• Corridors and stairwells
• Break rooms and restrooms
• Storage areas and warehouses

Key specifications

• Sensor type: Passive Infrared (PIR) & Microwave Sensor
• Detection angle: 360°
• Detection range: Ø 8 m (at 2.5 m mounting height)
• Recommended mounting height: 2.0 - 3.0 m
• Light sensor range: 10 - 2000 Lux
• Protection class: IP20
• Colour: White
• Connection type: Wired
• Operating voltage: 230 V AC / 50 Hz
• Switching capacity (resistive): 2300 W (cos φ = 1)
• Switching capacity (inductive): 1150 VA (cos φ = 0.5)
• Time delay: 10 s - 60 min (adjustable)
• Power consumption: < 0.5 W
• Operating temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Control output: 1x Relay (NO contact)
• Max. inrush current: 165 A / 20 ms
• Application area: Indoor
• Functions: Semi-automatic, fully automatic, test mode, remote control capable

Recommendations

For optimal performance, mount the detector at a height of 2.5 m and ensure no obstructions within the detection zone. Use the remote control for easy parameter adjustment. This device is compatible with standard 230 V AC wiring.
