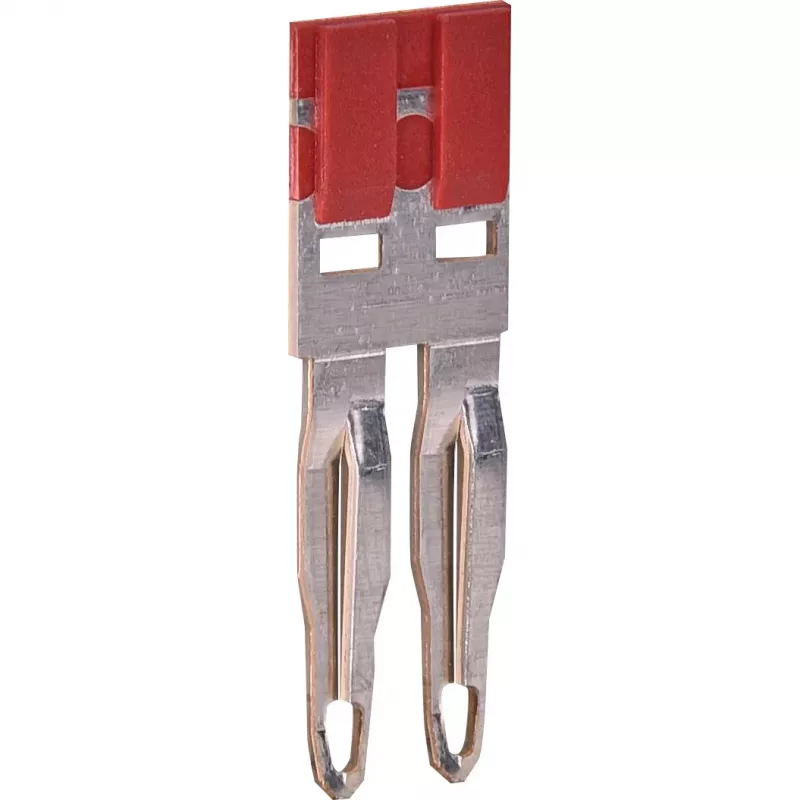

ETI ESC-PTP4/02/R ponte di collegamento per collegamento trasversale, 2 morsetti ponticellati, rosso 003903028

In industrial control cabinets and distribution boards, electricians use the ETI ESC-PTP4/02/R connecting bridge to jumper two adjacent terminals on ETI ESC-CBC.4 or ESC-CBC.4B terminal blocks. This red push-in bridge creates a reliable potential distribution point without additional wiring.

Key specifications

• Number of poles: 2
• Compatible terminal blocks: ETI ESC-CBC.4, ETI ESC-CBC.4B
• Rated current: 32 A
• Rated voltage: 1000 V AC/DC
• Connection type: Push-in
• Colour: Red
• Insulation material: Polyamide (PA)
• Conductor material: Nickel-plated copper alloy
• Operating temperature range: -40°C to +105°C
• Series: ESC-PTP

Why choose it

The bridge plugs directly into the terminal block, saving time compared to wire jumpers. Its compact design keeps the assembly neat, and the red colour allows quick identification of cross-connections.

Ideal use cases

• Potential distribution in control panels
• Bridging terminals in motor control circuits
• Creating common power or signal rails on DIN rail assemblies

Good to know

The bridge is rated for 4 mm² terminal blocks and complies with IEC 60947-7-1. It is part of the ESC-PTP series and has a flammability rating of UL94 V-0.
