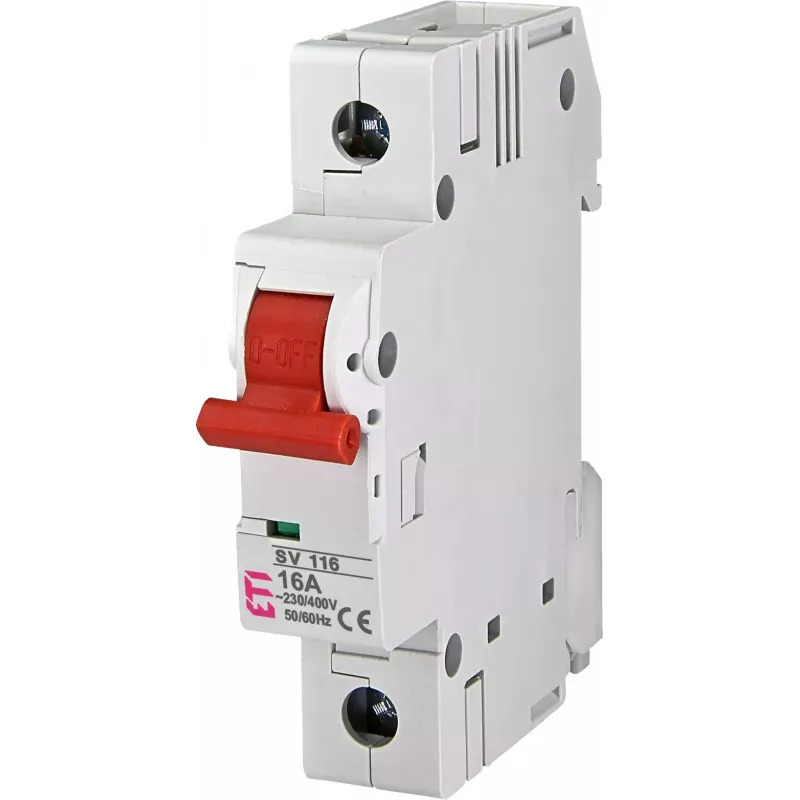

ETI SV 116 Interruttore di carico modulare 1 polo 16A 002423121

The ETI SV 116 is a compact 1-pole modular load switch for DIN rail mounting, offering a rated current of 16 A and a wide operating voltage range up to 400 V AC. Its single-module width (18 mm) makes it a space-efficient choice for distribution boards where every millimeter counts.

Highlights

• 1-pole switching with clear I-O position indicator
• Rated current 16 A, rated operational voltage 230/400 V AC
• DIN rail mounting (EN 60715), 1 module wide
• Terminal capacity 1–25 mm² for flexible or rigid conductors
• Mechanical life 20,000 cycles, electrical life 10,000 cycles

In daily use

The SV 116 handles load switching in residential and commercial installations. Screw terminals accept conductors from 1 to 25 mm², and the front IP40 protection helps keep dust out of the mechanism. The switch operates reliably from -25°C to +55°C.

Full specifications

• Switch type: Modular load switch
• Number of poles: 1P
• Rated current (In): 16 A
• Rated operational voltage (Ue): 230/400 V AC
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Frequency: 50/60 Hz
• Mounting type: DIN rail (EN 60715)
• Module width: 1 module (18 mm)
• Terminal capacity: 1–25 mm² (flexible/rigid)
• Degree of protection: IP20 (terminals), IP40 (front)
• Electrical life: 10,000 cycles
• Mechanical life: 20,000 cycles
• Standard: IEC/EN 60947-3
• Operating temperature: -25°C to +55°C
• Connection type: Screw terminals
• Switching position indicator: I-O (ON-OFF)

Final note

The ETI SV 116 combines a slim profile with robust switching performance, making it a practical choice for modern electrical installations.
