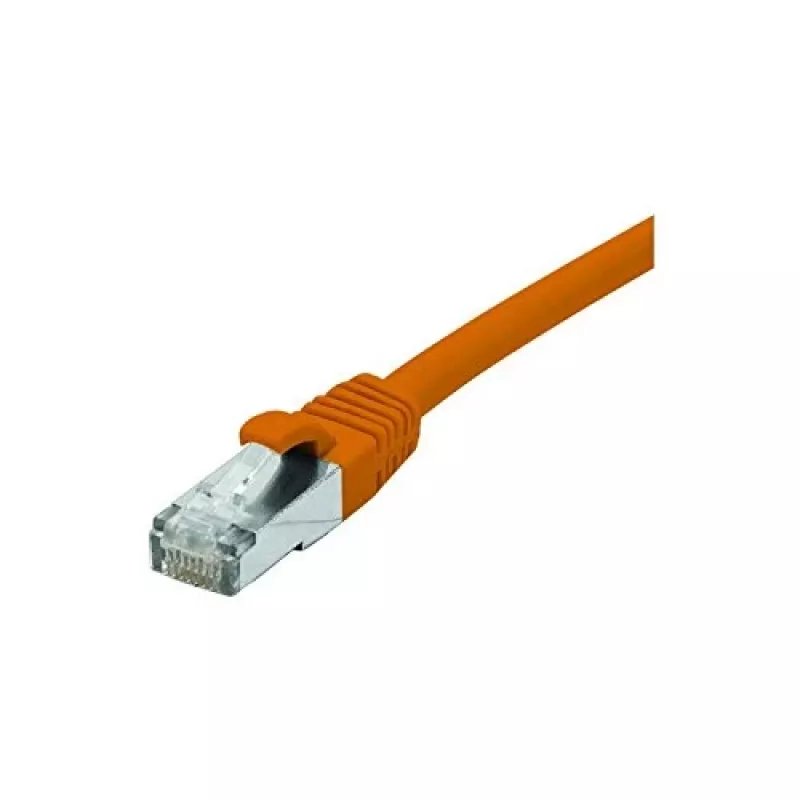

EXERTIS CONNECT Cavo patch CAT 6 F/UTP, PoE, senza alogeni, arancione, 25 m, RJ45, snagless 854429

This 25-meter CAT 6 patch cable delivers up to 1 Gigabit Ethernet with a bandwidth of 250 MHz, making it a reliable choice for high-speed network connections. The F/UTP shielding with an LSZH jacket ensures both performance and safety in commercial and residential installations.

Overview

Engineered for modern networks, this patch cable features gold-plated RJ45 connectors and a snagless molded boot with latch protection to prevent accidental disconnections. The stranded copper conductors (AWG 26/7) offer flexibility for easy routing, while the halogen-free LSZH jacket reduces toxic smoke in case of fire.

What stands out

• Supports Power over Ethernet (PoE, PoE+, and 4PPoE/PoE++) for powering devices like IP cameras and access points.
• F/UTP shielding (foiled twisted pair) minimizes electromagnetic interference for stable data transmission.
• Snagless boot protects the locking tab from damage during installation.
• Halogen-free LSZH jacket meets strict safety requirements for public buildings.
• Backward compatible with CAT 5e and CAT 5 networks.

Technical details

• Category: CAT 6
• Shielding: F/UTP (Foiled/Unshielded Twisted Pair)
• Length: 25 m
• Connector: RJ45 male to RJ45 male, gold-plated (3µ)
• Conductor: Copper (Cu), AWG 26/7 stranded
• Jacket: LSZH (Low Smoke Zero Halogen)
• Bandwidth: 250 MHz
• Data rate: 1 Gbps
• PoE support: PoE, PoE+, 4PPoE/PoE++
• Wiring: TIA/EIA 568B
• Outer diameter: 6.0 mm
• Operating temperature: -20 °C to +60 °C
• Standards: ISO/IEC 11801, EN 50173, EIA/TIA 568C.2

Our verdict

A robust and future-ready patch cable that combines high-speed performance with safety and durability, ideal for demanding network environments.
