EXERTIS CONNECT cavo patch Cat.6 S/FTP PiMF, RJ45, verde, 3 m 856875

Engineered for 10 Gigabit Ethernet, this Cat.6 patch cable delivers up to 250 MHz bandwidth with S/FTP shielding and PiMF construction, ensuring signal integrity in high-density environments.

Overview

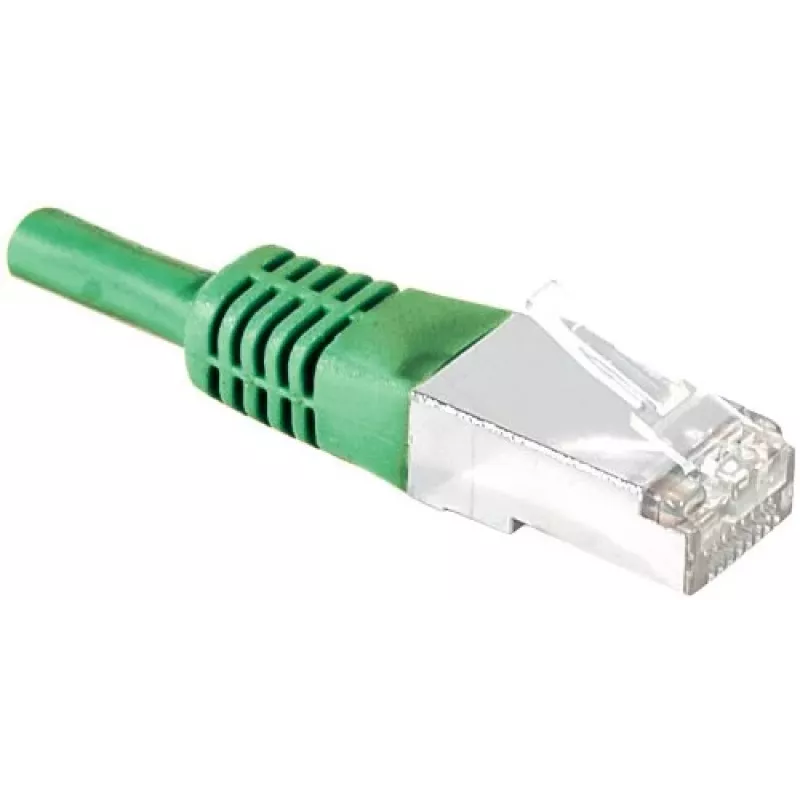

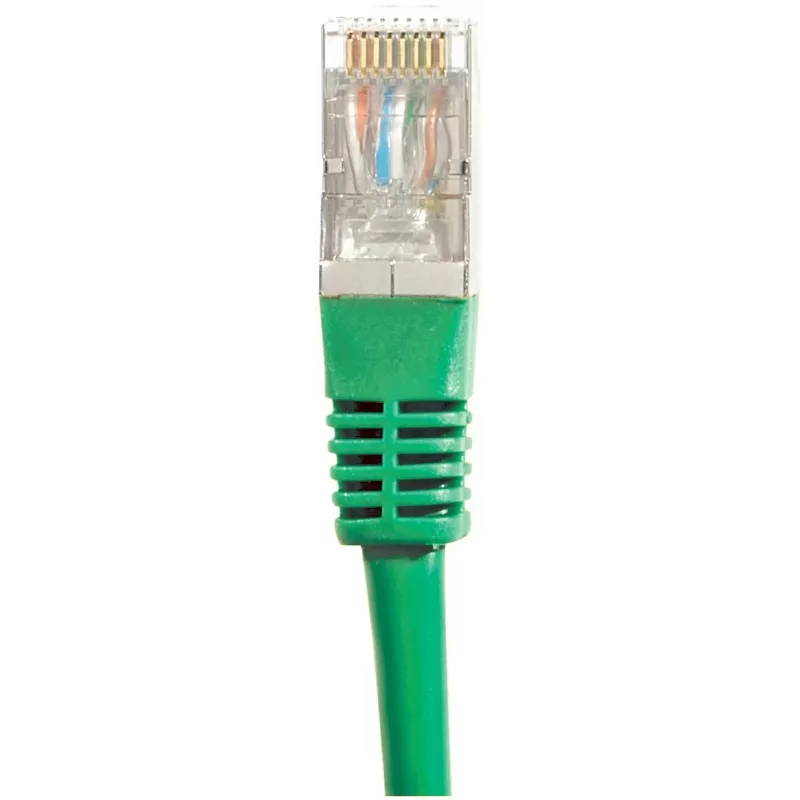

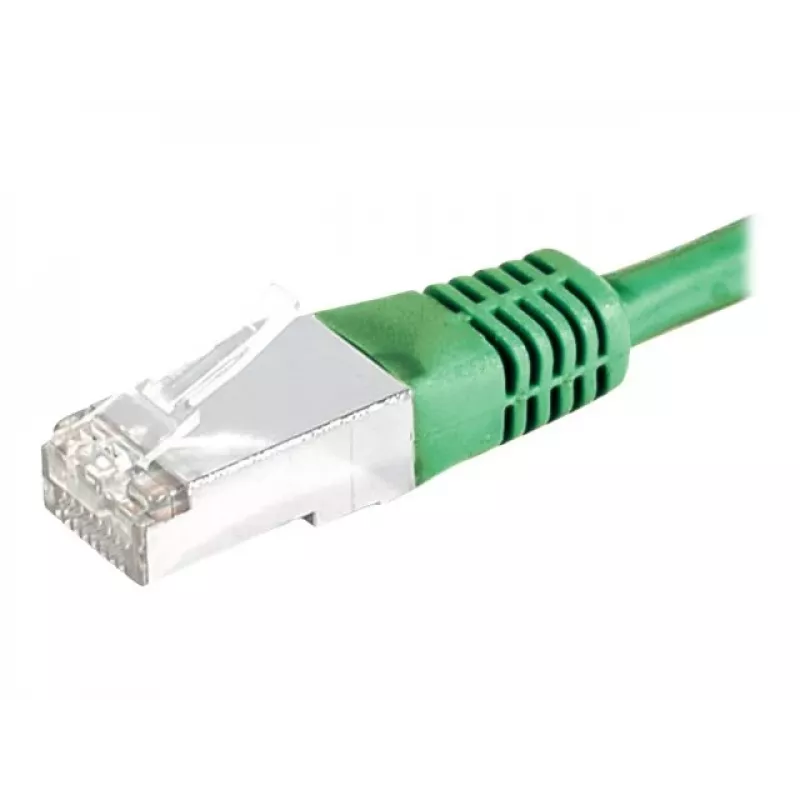

The EXERTIS CONNECT 856875 is a 3-meter green patch cable with RJ45 male connectors on both ends. It features stranded copper conductors (AWG 27/7) and gold-plated contacts for reliable connectivity.

What stands out

• Pairs in Metal Foil (PiMF) plus overall braid shielding (S/FTP) for superior crosstalk resistance
• Slim snagless boot with bend protection for easy routing in tight spaces
• LSZH jacket: low smoke, zero halogen for safer installations

Technical details

• Category: CAT.6
• Shielding: S/FTP, PiMF
• Length: 3.0 m
• Connectors: RJ45 (8P8C) male to male, gold-plated (50µm)
• Conductor: Copper, stranded, AWG 27/7
• Jacket: LSZH
• Bandwidth: 250 MHz
• Data rate: up to 10 Gbps (10GBASE-T)
• Wiring: TIA/EIA 568B
• Operating temperature: -20°C to 60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-1

Our verdict

A high-performance shielded Cat.6 cable ideal for noise-sensitive 10G networks, with a slim profile and halogen-free jacket.
