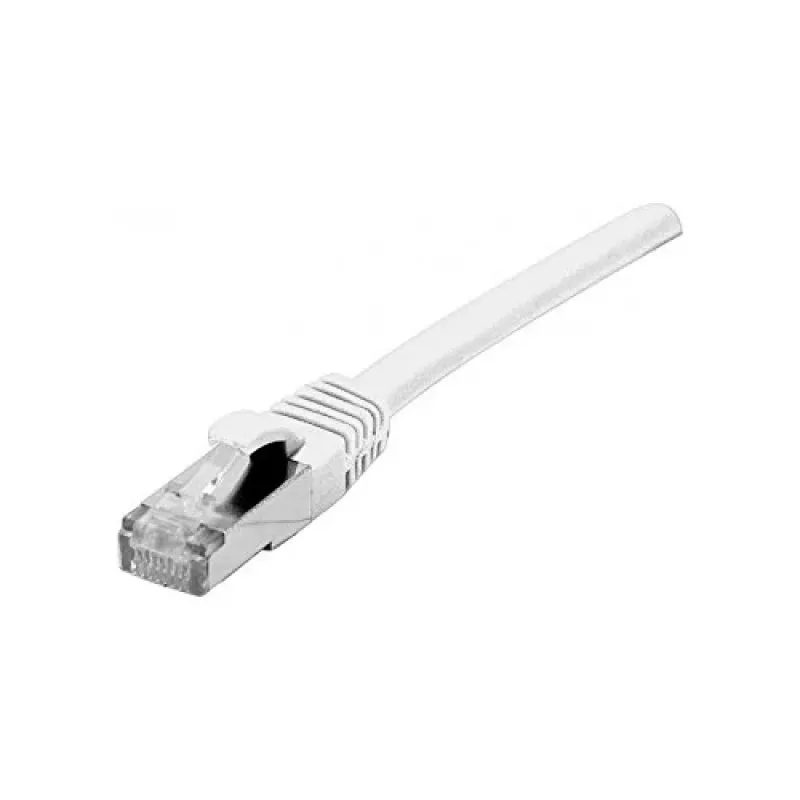

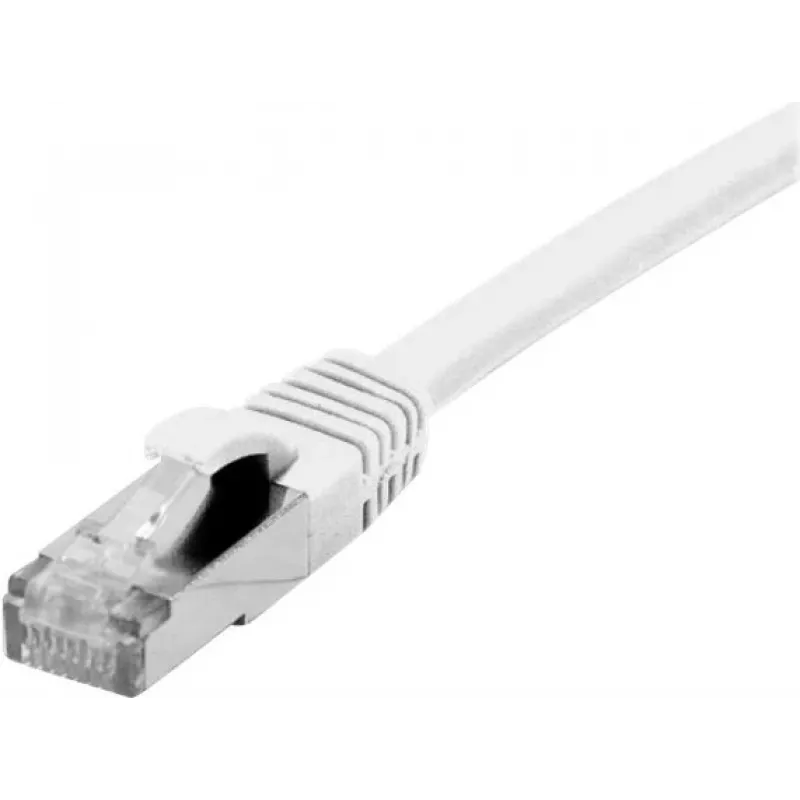

EXERTIS CONNECT Cavo patch Cat 6A S/FTP, 0,15 m, bianco 858497

In a high-density data center or a crowded patch panel, this 0.15 m Cat 6A S/FTP patch cable connects adjacent ports with minimal slack and maximum signal integrity. The slimline snagless boot allows easy insertion and removal in tight spaces, while the white LSZH jacket blends into cable management trays.

Key specifications

• Category: Cat 6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 0.15 m
• Colour: White
• Connector: RJ45 male to RJ45 male, gold-plated contacts
• Conductor: Copper, AWG 26/7
• Jacket: LSZH
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801 Class EA

Why choose it

The S/FTP construction with individually foil-shielded pairs and an overall braid shield provides superior alien crosstalk resistance, essential for 10GBASE-T in dense installations. The slim boot reduces the bend radius at the connector, preventing cable damage in high-movement environments.

Ideal use cases

• Short-distance patching in server racks and patch panels
• High-speed Ethernet connections in data centers
• PoE applications up to 10 Gbps

Good to know

LSZH jacket emits low smoke and no halogen when exposed to fire, making it suitable for enclosed spaces. The cable is compliant with IEC 60332-1 flame retardancy.
