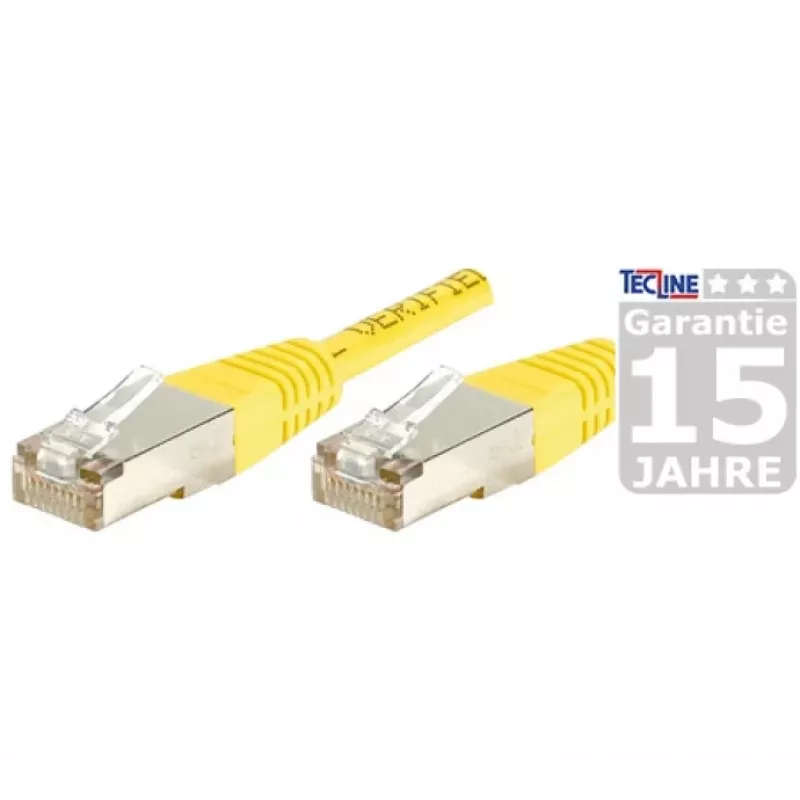

EXERTIS CONNECT Cavo patch Cat.6A S/FTP, 10 m, giallo, Slim Snagless Boot, 10 Gbps 858337

Experience 10 Gigabit Ethernet with this 10-meter Cat.6A S/FTP patch cable. Its S/FTP shielding with PIMF (pairs in metal foil) virtually eliminates crosstalk and EMI, ensuring reliable high-speed data transfer up to 500 MHz. The slim snagless boot design protects the locking tab and allows easy installation in high-density patch panels.

Overview

This yellow patch cable is built for demanding network environments. It features gold-plated RJ45 connectors (50µm) for superior conductivity and corrosion resistance. The stranded copper conductors (AWG 26/7) offer flexibility without compromising performance, while the PVC jacket provides durability.

What stands out

• Cat.6A performance: supports 10GBASE-T up to 100 meters
• S/FTP shielding: overall braid plus foil on each pair for maximum noise immunity
• Slim snagless boot: prevents cable snags and protects the connector clip
• Gold-plated contacts: ensure reliable connections and long life
• Flexible stranded copper: easy to route in tight spaces

Technical details

• Cable type: Ethernet patch cable (Cat.6A, Class EA)
• Shielding: S/FTP (PIMF)
• Length: 10 m
• Colour: Yellow
• Connectors: RJ45 male to RJ45 male, gold-plated (50µm)
• Conductor: Copper, AWG 26/7 (stranded)
• Jacket: PVC
• Bandwidth: 500 MHz
• Data transfer rate: up to 10 Gbps
• Wiring: TIA/EIA 568B
• Standards: TIA/EIA 568-C.2, ISO/IEC 11801, EN 50173
• Operating temperature: -20°C to 60°C

Our verdict

A high-performance, shielded Cat.6A patch cable ideal for 10G networks where interference is a concern. The slim boot design is a practical touch for dense installations.
