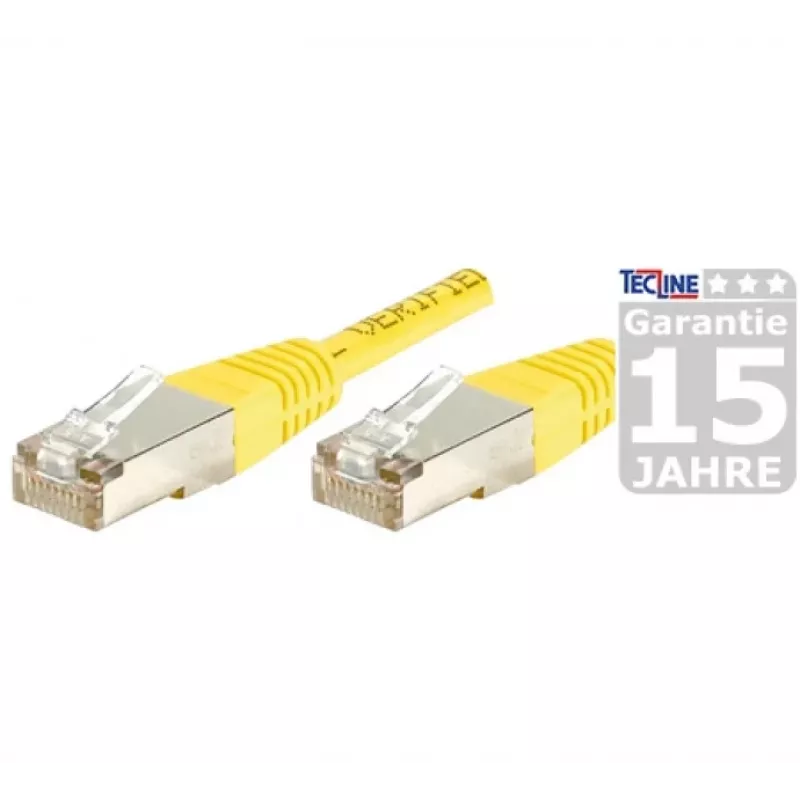

EXERTIS CONNECT cavo patch Cat.6A S/FTP, 15 m, giallo, Slim Snagless Boot 858338

Long cable runs in dense patch panels often suffer from crosstalk and alien interference, and the bulky strain relief on standard connectors makes it hard to unplug a single link without disturbing neighbours. This 15-metre yellow patch cable solves both problems with Cat.6A S/FTP (PIMF) shielding and a particularly slim snagless boot.

Who is it for

Network installers and IT administrators who need a reliable 10-Gigabit link over longer distances in high-density racks, where alien crosstalk and difficult connector access are daily issues.

Main features

• Cat.6A performance, Class EA, tested to 500 MHz
• S/FTP (PIMF) shielding: foil around each pair plus overall braid for excellent alien crosstalk rejection
• 10GBASE-T support for 10 Gigabit Ethernet up to 100 m
• 15 m length, yellow LSZH jacket
• Slim snagless boot protects the locking tab and allows easy removal in dense patch fields
• Gold-plated RJ45 connectors (50 µ) for reliable contact
• Stranded copper conductors, AWG 26/7, for flexibility
• Halogen-free and flame-retardant jacket for safer installations

Specifications

• Cable type: Ethernet Patch Cable, S/FTP (PIMF)
• Category: Cat.6A, Class EA
• Bandwidth: 500 MHz
• Data transfer rate: 10 Gbps
• Length: 15 m
• Colour: Yellow
• Connector type: RJ45 male to RJ45 male, gold-plated (50 µ)
• Conductor: Copper, AWG 26/7, stranded
• Jacket: LSZH, halogen-free, flame-retardant
• Boot: Slim snagless
• Wiring: TIA/EIA 568B
• Standards: ISO/IEC 11801, EN 50173, EIA/TIA-568-C.2

Tips

For best performance, keep the cable away from power lines and avoid sharp bends. The slim boot is ideal for high-density switches where adjacent ports are fully populated.
