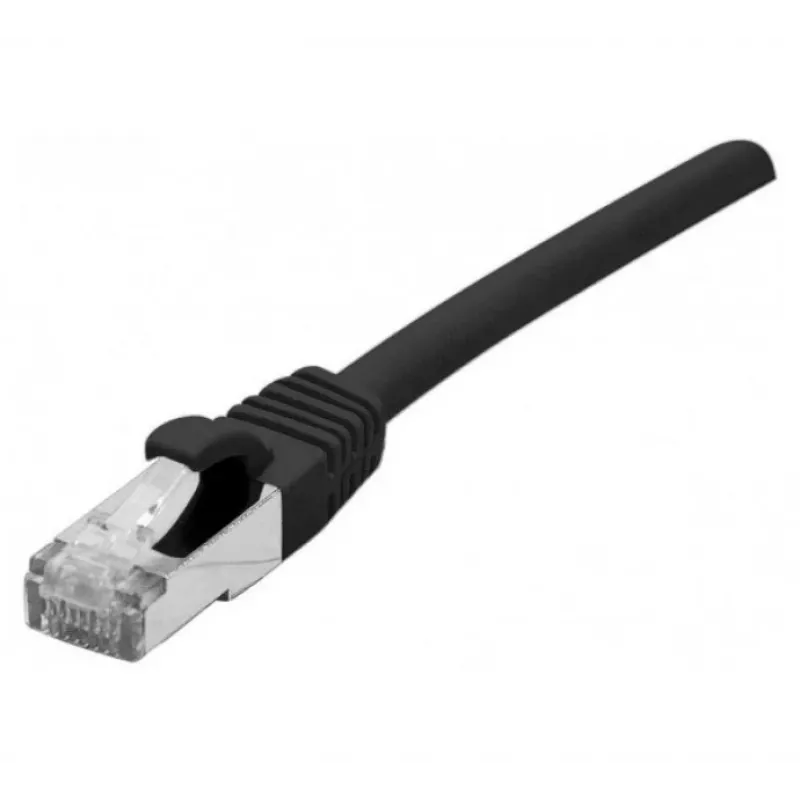

EXERTIS CONNECT Cavo patch Cat 6A S/FTP, 7,5 m, nero 858489

This patch cable stands out with its slim bend protection, making it easier to route in tight spaces behind desks or patch panels without sacrificing the robust shielding needed for 10 Gigabit Ethernet. The S/FTP construction with PiMF (pairs in metal foil) ensures excellent crosstalk resistance, while the LSZH jacket adds safety in case of fire.

Highlights

• Cat 6A performance up to 500 MHz for 10GBASE-T networks
• S/FTP shielding with individually foiled pairs (PiMF) for minimal interference
• Snagless boot with especially narrow bend protection for high-density installations
• Halogen-free LSZH jacket, flame retardant per IEC 60332-1
• Gold-plated RJ45 connectors (50µm) for reliable contacts

In daily use

With stranded AWG 26/7 copper conductors, the cable remains flexible and easy to handle. It supports Power over Ethernet up to PoE++ (IEEE 802.3bt) when used with compliant equipment, and the TIA/EIA 568B wiring ensures compatibility with standard installations. The black jacket keeps a professional look in visible areas.

Full specifications

• Cable type: Shielded Ethernet Patch Cable (S/FTP)
• Category: Cat 6A (Class EA)
• Length: 7.5 m
• Colour: Black
• Connector type: RJ45 (8P8C), gold-plated 50µm
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: Copper, AWG 26/7 stranded
• Jacket: LSZH, halogen-free, flame retardant
• Boot: Snagless, slim bend protection
• Wiring: TIA/EIA 568B
• Standards: ISO/IEC 11801, EN 50173, EIA/TIA-568-C.2
• Operating temperature: -20°C to +60°C

Final note

Engineered for high-density 10G networks where space is tight and performance is critical, this cable combines slim design with full Cat 6A shielding.
