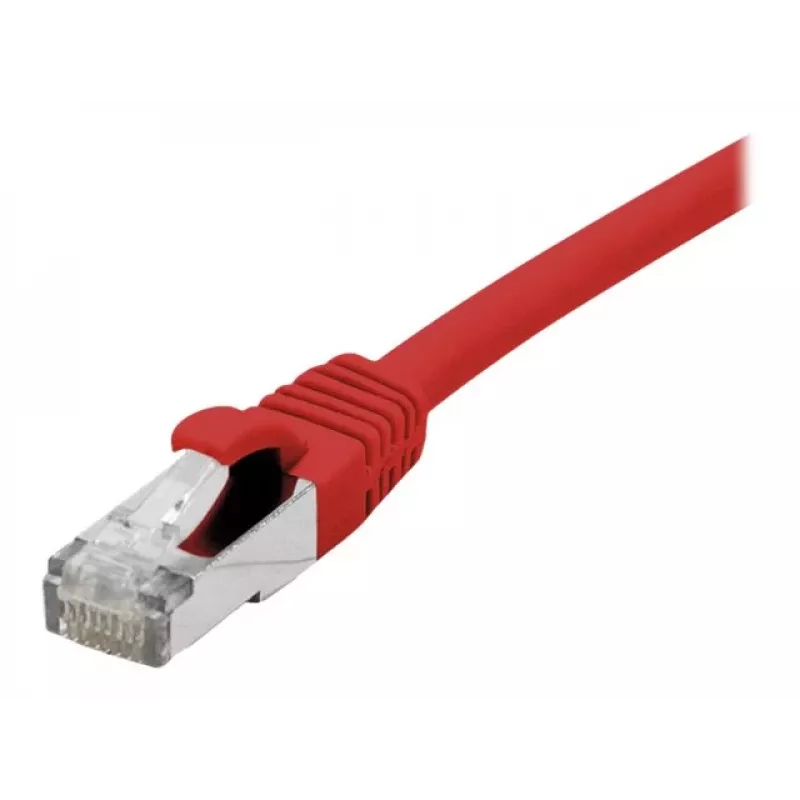

EXERTIS CONNECT Cavo patch Cat. 6A S/FTP, TPE, senza alogeni, certificato GRS, rosso, 0,5 m 854520

Experience 10 Gigabit Ethernet performance with this EXERTIS CONNECT Cat. 6A S/FTP patch cable, engineered for high-speed, interference-free networking in a compact 0.5 m length.

Overview

This red patch cable features S/FTP (PiMF) shielding with individually foiled twisted pairs and an overall braided screen, ensuring superior protection against EMI and crosstalk. The TPE jacket is halogen-free and GRS-certified, making it a responsible choice for modern installations. A molded boot protects the RJ45 latch from snagging, while gold-plated contacts deliver reliable connectivity.

What stands out

• Supports 10GBASE-T Ethernet up to 500 MHz bandwidth
• S/FTP (PiMF) shielding for maximum signal integrity
• Halogen-free TPE jacket, GRS-certified for sustainability
• Rastnasenschutz (latch protection) prevents accidental disconnection
• Stranded copper conductors (AWG 26/7) for flexibility
• PoE++ support for powering devices up to 60W

Technical details

• Category: Cat. 6A (Class EA)
• Shielding: S/FTP (PiMF)
• Jacket material: TPE, halogen-free, GRS-certified
• Connector: RJ45 male to RJ45 male, gold-plated (50µ)
• Length: 0.5 m
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor gauge: AWG 26/7 stranded copper
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Flame retardancy: IEC 60332-1-2
• Operating temperature: -20°C to +60°C
• Outer diameter: 6.0 mm
• Wiring standard: TIA/EIA 568B

Our verdict

A high-performance, eco-conscious patch cable that delivers 10G speeds with robust shielding and latch protection in a short, manageable length.
