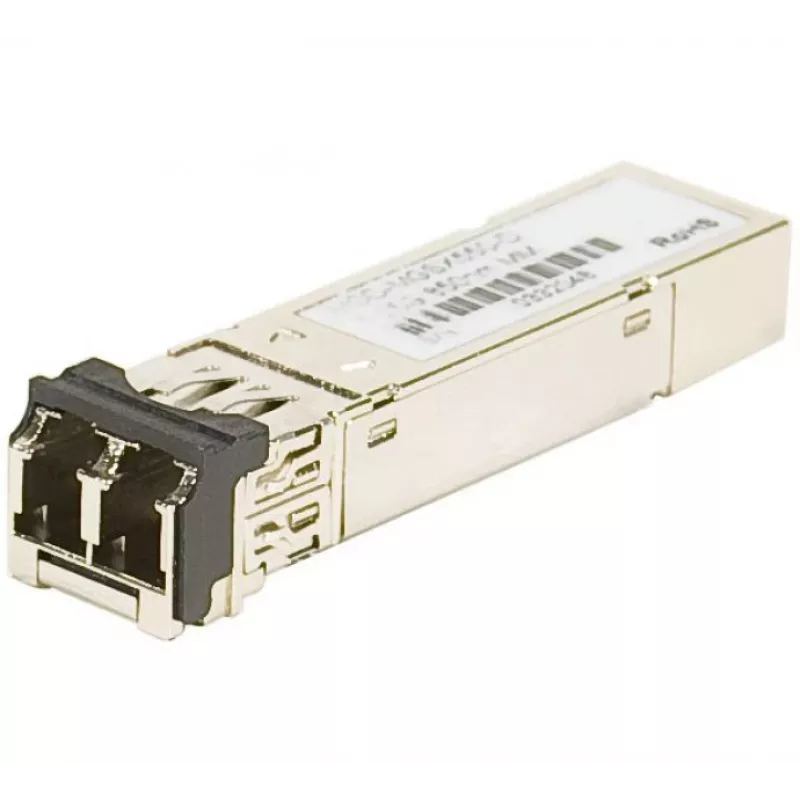

EXERTIS CONNECT modulo Mini GBIC (SFP) LC, 1 Gigabit/s, fibra ottica, modulo uplink Gigabit 1000Base-SX multimodale per espansione switch (311799)

Network administrators expanding switch capacity in data centres and enterprise LANs can add a fibre optic uplink with this EXERTIS CONNECT Mini GBIC (SFP) module. It provides a 1 Gigabit/s 1000Base-SX connection over multimode fibre with an LC duplex connector, enabling high-speed backbone links.

Key specifications

• Transceiver type: SFP (Mini GBIC)
• Data rate: 1 Gigabit/s (1.25 Gbps)
• Ethernet standard: 1000Base-SX
• Connector: LC duplex
• Fibre type: Multimode (MMF)
• Wavelength: 850 nm
• Maximum transfer distance: 550 m
• Hot-swappable: Yes
• Digital diagnostics monitoring (DDM): Yes
• Operating temperature: 0°C to 70°C

Why choose it

This module is MSA compliant, ensuring compatibility with a wide range of switches. It consumes less than 1 W and supports hot-swapping, so you can install or replace it without powering down the network.

Ideal use cases

• Adding a fibre uplink to a Gigabit Ethernet switch
• Connecting switches across floors or buildings within 550 m
• Upgrading backbone links in campus networks

Good to know

The module uses a VCSEL transmitter and PIN diode receiver, designed for multimode fibre. It operates in full-duplex mode and includes digital diagnostics for monitoring link health.
