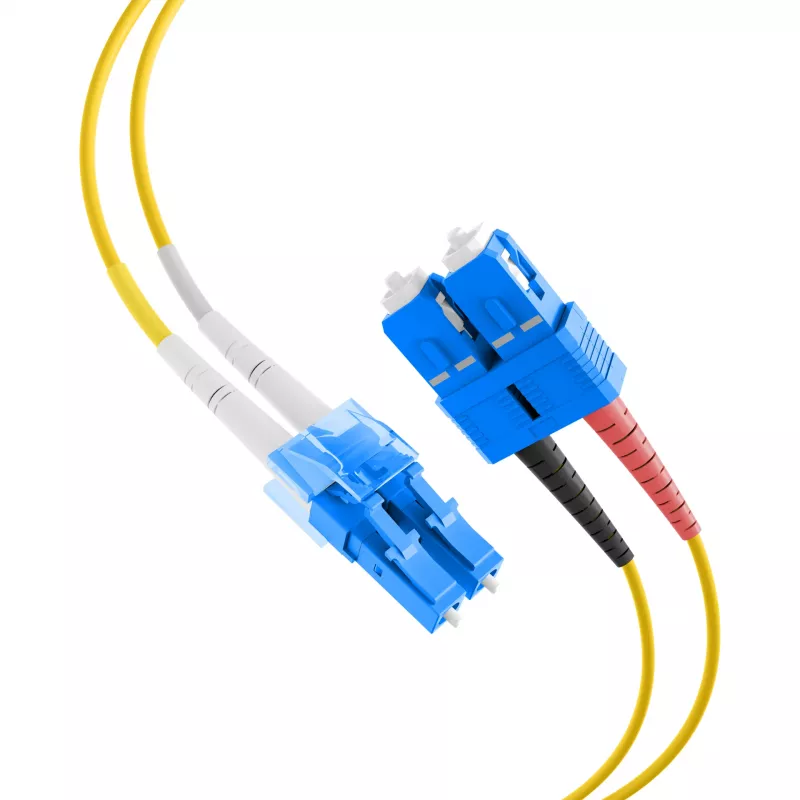

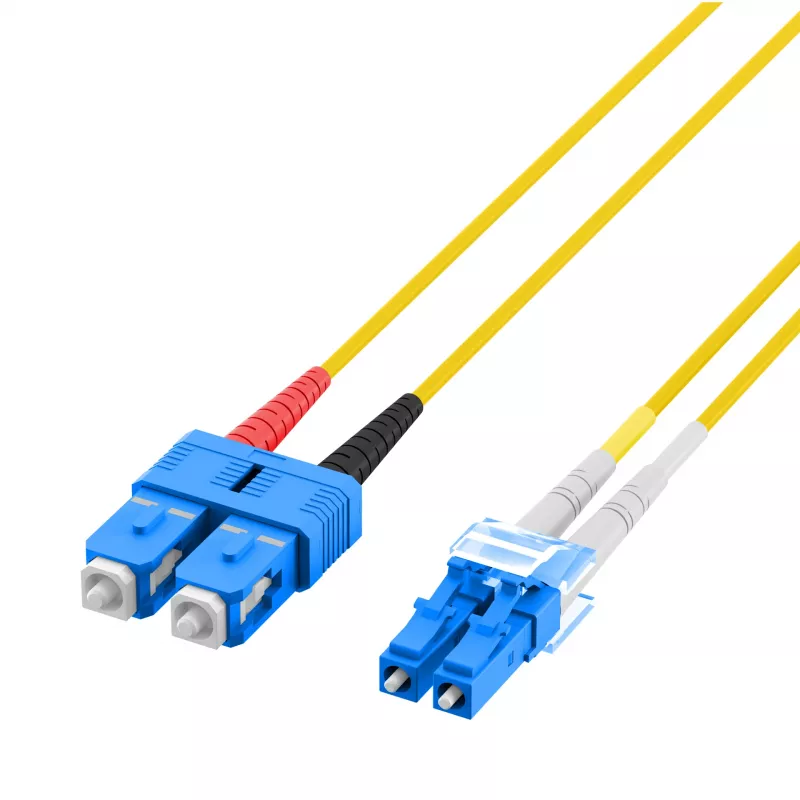

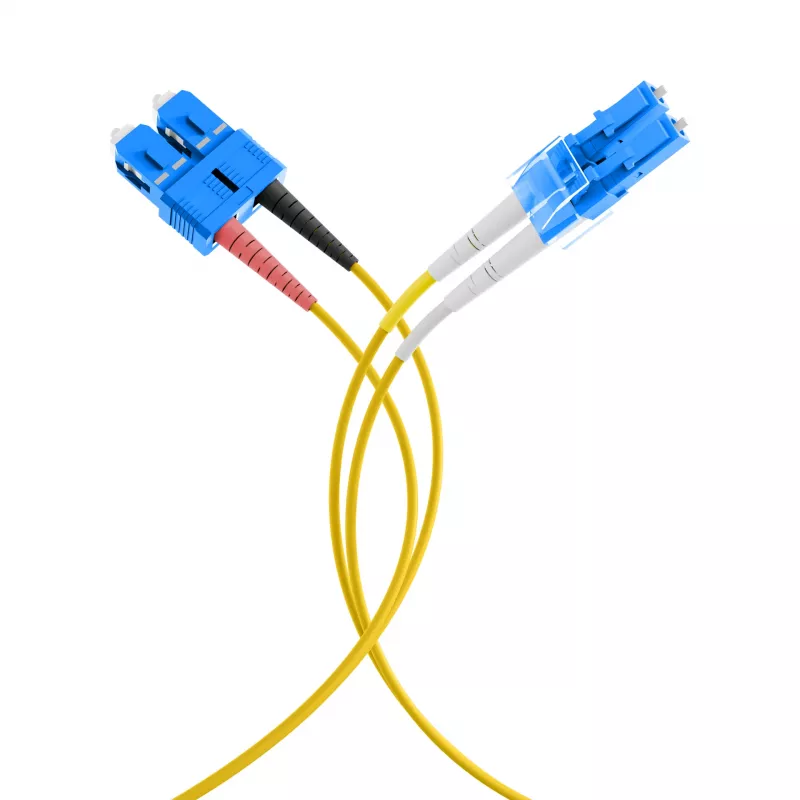

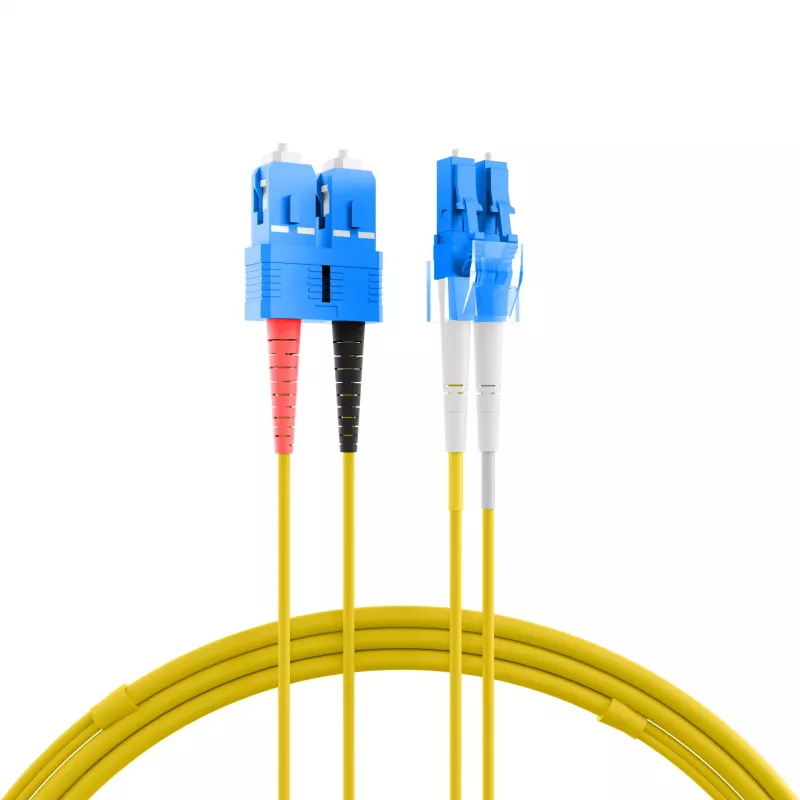

EFB Elektronik IPL-DF-LCUSCU-2-0500 cavo patch in fibra ottica OS2 duplex LC/UPC su SC/UPC 5 m giallo

The EFB Elektronik IPL-DF-LCUSCU-2-0500 is a high-quality OS2 single-mode duplex fiber optic patch cable designed for reliable data transmission in data centers, LAN, SAN, and FTTx applications. With a length of 5 meters and LC/UPC to SC/UPC connectors, this cable ensures low insertion loss and high return loss for optimal performance.

Advantages

This patch cable offers excellent signal integrity with insertion loss ≤0.3 dB and return loss ≥50 dB. The LSZH (Low Smoke Zero Halogen) jacket provides safety in enclosed spaces, while the 9/125 µm core/cladding diameter ensures compatibility with standard single-mode equipment. The duplex structure allows for bidirectional communication.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fiber to the x (FTTx) deployments

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode OS2
• Length: 5 m
• Connector A: LC/UPC
• Connector B: SC/UPC
• Jacket Material: LSZH
• Jacket Color: Yellow
• Core/Cladding: 9/125 µm
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥50 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is polarity A-B (crossed) and complies with IEC 61754, IEC 60793, and IEC 60332 standards.
