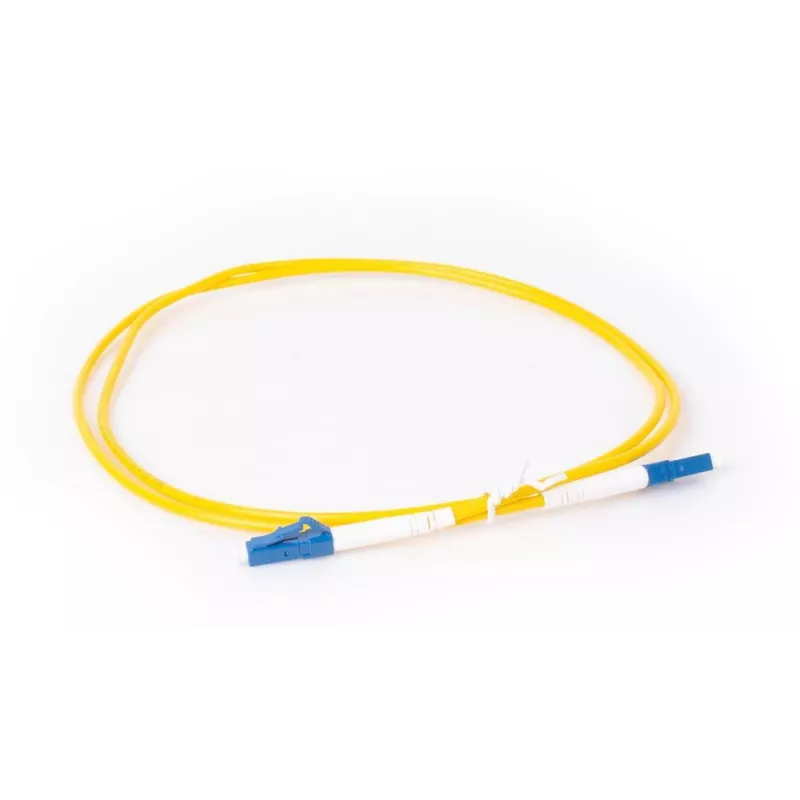

GETFORT GF-LULUS5 cavo patch in fibra ottica monomodale LC/UPC su LC/UPC simplex, 5m, 9/125µm, giallo

With an insertion loss of ≤0.3 dB and return loss ≥50 dB, this GETFORT 5-metre single-mode simplex patch cable delivers exceptional signal integrity for high-speed optical networks. Pre-terminated with LC/UPC connectors on both ends, it's ready for immediate deployment in data centres, FTTH, and enterprise LAN environments.

Overview

The GETFORT GF-LULUS5 is a premium single-mode fibre optic patch cord featuring a 9/125µm core/cladding diameter, ideal for long-distance, high-bandwidth applications. Its simplex configuration with one fibre supports bidirectional communication over a single wavelength or unidirectional transmission, commonly used in transceiver connections and fibre-to-the-desk setups. The cable is jacketed in a durable yellow PVC that provides protection and easy identification of single-mode fibre, while the 2.0mm outer diameter offers flexibility for routing in tight spaces.

What stands out

• Ultra-low insertion loss (≤0.3 dB) and high return loss (≥50 dB) ensure minimal signal degradation.
• Zirconia ceramic ferrules provide precise alignment and long-term reliability.
• Compliant with RoHS, CE, and TIA/EIA-568-C.3 standards for assured quality and safety.
• Wide operating temperature range (-20°C to +70°C) suits various indoor environments.
• Yellow PVC jacket is flame-retardant and clearly identifies single-mode fibre.
• Attenuation of 0.35 dB/km at 1310nm and 0.25 dB/km at 1550nm supports long-haul transmission.

Technical details

• Fibre type: Single-mode (SM), 9/125µm core/cladding

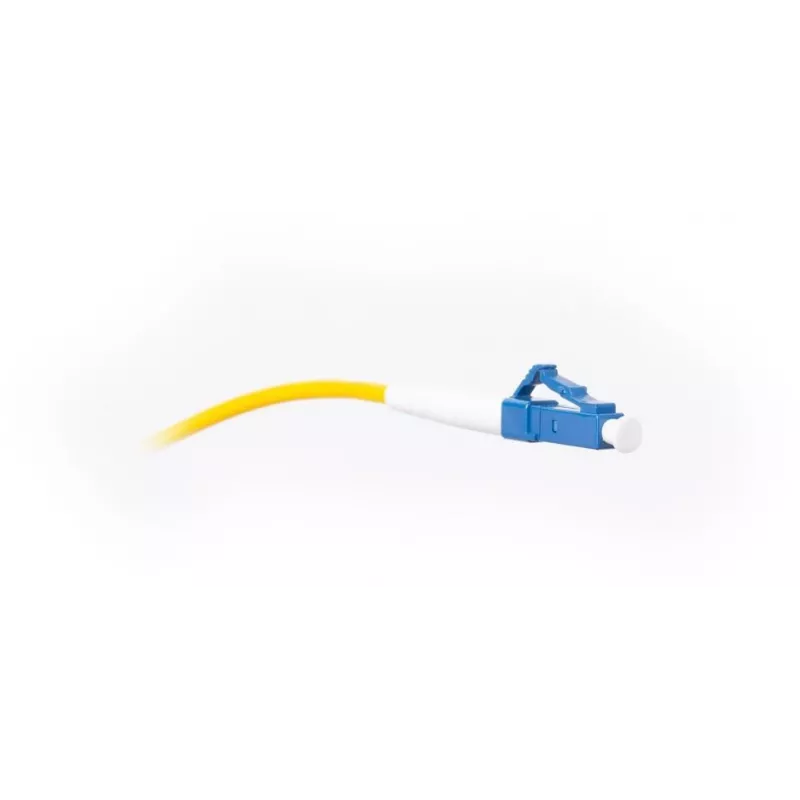

• Connectors: LC/UPC to LC/UPC, simplex (1 fibre)
• Cable length: 5 metres
• Polishing: UPC (Ultra Physical Contact)
• Insertion loss: ≤0.3 dB
• Return loss: ≥50 dB
• Jacket material: PVC, yellow
• Cable diameter: 2.0 mm
• Operating wavelengths: 1310 nm, 1550 nm
• Minimum bend radius: 30 mm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Ferrule material: Zirconia ceramic
• Compliance: RoHS, CE, TIA/EIA-568-C.3
• Applications: Data centres, telecommunications, FTTH, LAN

Our verdict

The GETFORT GF-LULUS5 is a reliable, high-performance patch cable that meets stringent industry standards. Its low loss and robust construction make it an excellent choice for professionals seeking dependable fibre connectivity in critical network infrastructures.
