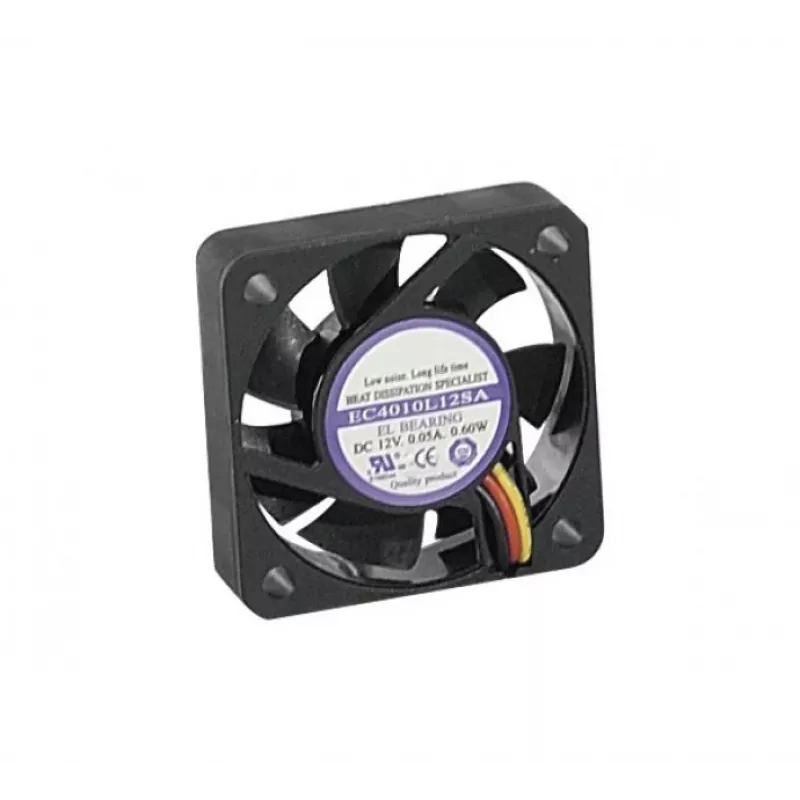

Exertis Connect Ventola per case 40 mm – cuscinetto a strisciamento durevole, 3 pin, 2500 RPM, 19 dBA, nero 910181

Small form-factor PCs, Mini-ITX builds, and embedded systems often run hot because their compact cases leave little room for airflow. The Exertis Connect 40 mm case fan solves that by delivering reliable cooling in a space-saving 40 mm frame. Its long-life sleeve bearing is lubricated for smooth, quiet operation, making it a dependable choice for systems that need to stay cool without adding noise.

Who is it for

This fan is ideal for PC builders and system integrators working with Mini-ITX cases, small network appliances, or industrial embedded systems. It suits anyone who needs a compact cooling solution that fits tight spaces and runs quietly for years.

Main features

• 40 mm diameter and 10 mm thickness – fits standard small case fan mounts
• Long-life sleeve bearing with lubrication – smooth, durable operation
• 3-pin DC connector – easy connection to motherboard fan headers
• 2500 RPM rotational speed – balanced airflow and noise
• 5.5 CFM airflow and 19 dBA noise level – efficient cooling without distraction
• Low power draw: 0.07 A, 0.84 W – minimal impact on system power budget
• 30 cm cable length – flexible routing in compact enclosures

Specifications

• Fan diameter: 40 mm
• Fan thickness: 10 mm
• Bearing type: Long-life sleeve bearing
• Rated voltage: 12 V DC
• Connector: 3-pin
• Rotational speed: 2500 RPM
• Airflow: 5.5 CFM
• Noise level: 19 dBA
• Current draw: 0.07 A
• Power consumption: 0.84 W
• Mean time between failures (MTBF): 30,000 hours
• Material: Plastic
• Colour: Black
• Cable length: 30 cm
• Mounting type: Screw-in

Tips

For best results, mount the fan as an exhaust to pull warm air out of the case. If your motherboard lacks a 3-pin header, a simple 3-pin to Molex adapter can power the fan directly from the PSU. Regularly clean dust from the blades to maintain airflow and extend bearing life.
