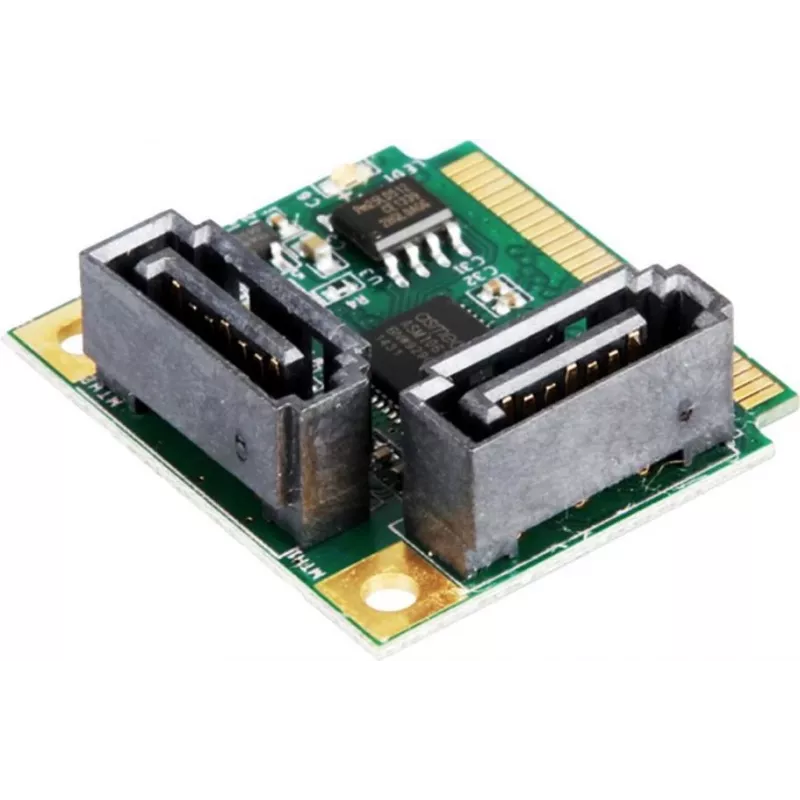

EXSYS controller Mini PCIe SATA III, 2 porte, 6Gbps, ASM1061, full-height EX-48080-2

Embedded systems and compact industrial PCs often lack sufficient storage connectivity, limiting expansion to additional hard drives or SSDs. The EXSYS EX-48080-2 Mini PCIe SATA III Controller solves this by adding two high-speed SATA 6Gbps ports through a standard Mini PCIe slot, enabling reliable storage expansion in space-constrained environments.

Who is it for

System integrators, industrial PC builders, and enthusiasts working with small form factor or embedded platforms who need to connect additional SATA drives without sacrificing performance or space. Ideal for applications such as digital signage, edge computing, and compact servers.

Main features

• Adds two internal SATA III ports via Mini PCIe full-height slot
• ASMedia ASM1061 chipset ensures stable and efficient operation
• Supports data transfer rates up to 6 Gbps per port
• Backward compatible with SATA II and SATA I devices
• AHCI support with hot-plug and Native Command Queuing (NCQ)
• Bus-powered—no external power required
• Broad OS compatibility: Windows, Linux, macOS

Specifications

• Host Interface: Mini PCI Express (Mini PCIe)
• SATA Standard: SATA III (6 Gbps)
• Number of SATA Ports: 2
• SATA Connector Type: Internal 7-pin SATA
• Chipset: ASMedia ASM1061
• Form Factor: Mini PCIe Full-height
• Supported Devices: HDD, SSD, Optical Drives
• Features: AHCI, Hot-Plug, NCQ
• Operating System Support: Windows 7/8/10/11, Windows Server, Linux Kernel, macOS
• Power Source: Mini PCIe bus power
• Compliance: RoHS, CE, FCC
• Backward Compatibility: SATA II (3 Gbps), SATA I (1.5 Gbps)

Tips

Ensure your Mini PCIe slot is full-height and provides sufficient power for connected drives. For optimal performance, use SATA III cables and drives. Driver installation may be required depending on the operating system; check the EXSYS website for the latest drivers.
