Scheda di interfaccia DeLOCK 89577

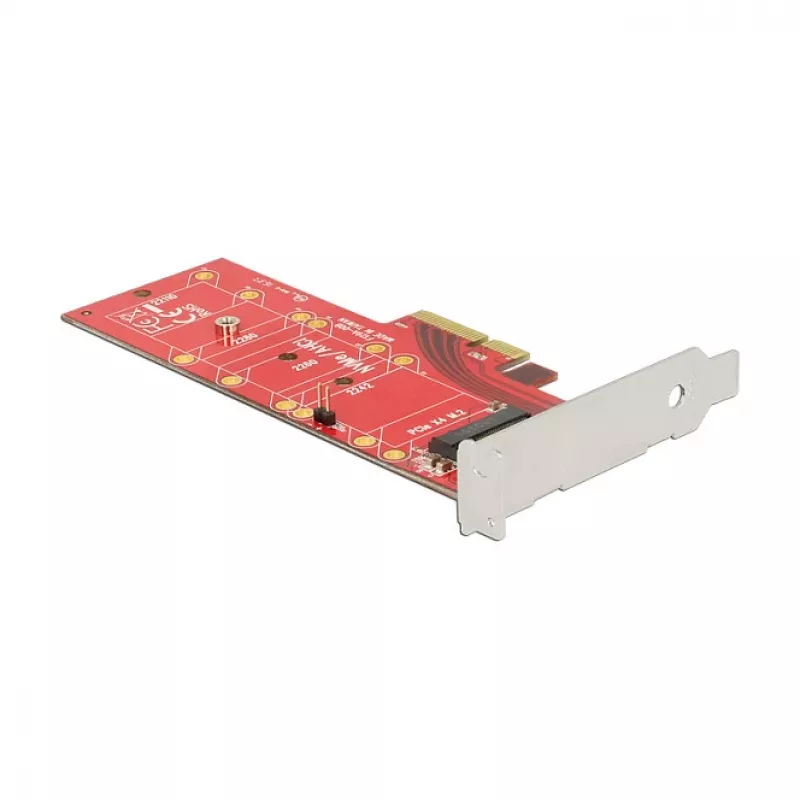

This PCI Express card by Delock expands a desktop PC with one M.2 slot, allowing installation of an M.2 SSD in sizes 22110, 2280, 2260 and 2242. The card uses a PCIe host interface and supports the PCIe 3.0 standard with a maximum data transfer rate of 39 Gbit/s. A separately positionable heat sink improves heat dissipation for the memory module while the card retains a black, red and silver design.

Advantages

The DeLOCK 89577 provides a straightforward way to add an internal M.2 interface via a PCIe slot, supporting multiple M.2 lengths (22110/2280/2260/2242). PCIe 3.0 compatibility and a rated maximum throughput of 39 Gbit/s enable high-speed data transfer. The adjustable heat sink helps maintain lower operating temperatures for installed SSDs, and the compact internal design fits standard desktop systems.

Suitable for (tasks / use cases)

Key specifications

How to use

Power off the PC and disconnect from mains. Insert the DeLOCK 89577 into an available PCIe slot on the motherboard and fasten it to the chassis. Mount a compatible M.2 SSD onto the M.2 connector and secure it at the appropriate standoff for the module length. Position the heat sink over the SSD in the most suitable location and fasten it according to the included instructions. Reconnect power and boot the system; the operating system should detect the new M.2 interface and installed SSD.

Recommendations

Use the adjustable heat sink to ensure adequate cooling for high-performance NVMe SSDs, and verify BIOS/UEFI and OS support for PCIe 3.0 M.2 devices before installation. Follow anti-static precautions during installation to protect components.
