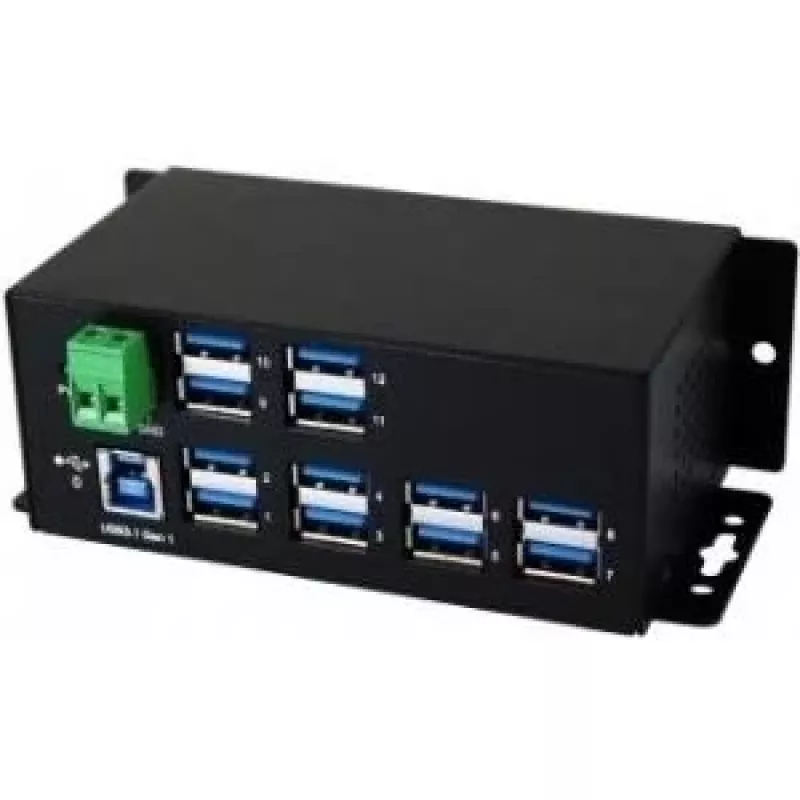

EXSYS EX-1112HMS Hub USB 3.2 Gen 1 industriale per guida DIN 12-Port

Industrial USB expansion often fails when equipment is mounted on DIN rails or powered by DC sources—standard hubs cannot handle harsh environments or non-standard power inputs. The EXSYS EX-1112HMS solves this by providing 12 SuperSpeed USB 3.2 Gen 1 ports in a rugged metal housing designed for DIN-rail mounting and 9-24V DC terminal block power.

Who is it for

This hub is built for system integrators, industrial automation engineers, and anyone deploying USB devices in control cabinets, kiosks, or factory floors where reliability and mounting flexibility are critical.

Main features

• 12 downstream USB Type-A ports with SuperSpeed 5Gbps data transfer
• 1 upstream USB Type-B port for host connection
• DIN-rail mountable metal housing (SECC) for secure installation
• Wide 9-24V DC power input via terminal block, with per-port over-current protection
• ESD protection: 15kV air, 8kV contact
• Operating temperature range: -40°C to 85°C
• LED indicators for power and link/activity per port
• Compatible with Windows, macOS, and Linux

Specifications

• USB Standard: USB 3.2 Gen 1 (SuperSpeed 5Gbps)
• Downstream Ports: 12 x USB Type-A
• Upstream Port: 1 x USB Type-B
• Data Transfer Rate: Up to 5 Gbps
• Power Input: 9-24V DC (Terminal Block)
• Power Output per Port: 5V / 900mA
• Housing Material: SECC Metal
• Operating Temperature: -40°C to 85°C
• Storage Temperature: -40°C to 85°C
• ESD Protection: 15kV Air, 8kV Contact
• Over-Current Protection: Yes, per port
• Chipset: VIA VL812
• LED Indicators: Power, Link/Activity per port
• Certifications: CE, FCC, RoHS

Tips

Ensure your DC power supply can deliver sufficient current for all connected devices. For industrial environments, use shielded USB cables to maintain signal integrity.
