EXSYS EX-49502 adattatore Industrial Ethernet da connettore maschio M12 A-coded 8 poli a connettore femmina RJ45 90°

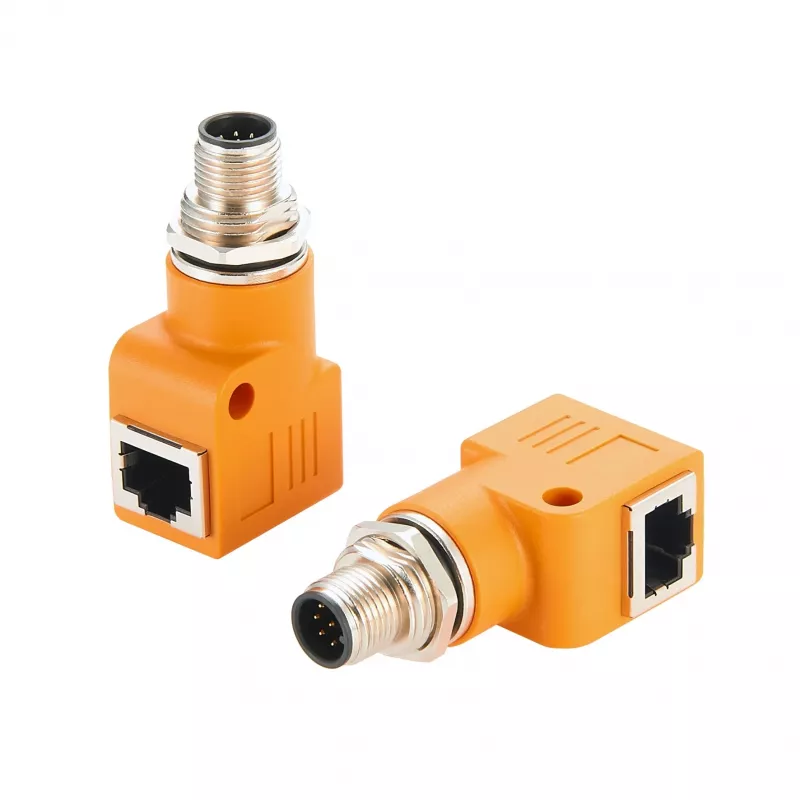

This EXSYS adapter converts an M12 A-coded 8-pin male connector to an RJ45 female jack at a 90° angle, enabling reliable industrial Ethernet connections in tight spaces. With an IP67 rating, it withstands harsh environments including dust and temporary immersion.

Overview

The EX-49502 is built for industrial Ethernet and sensor/actuator connectivity. Its metal housing (nickel-plated brass) ensures durability, while the shielded design maintains signal integrity. It supports 10/100 Mbps Fast Ethernet and is PoE/PoE+ compatible for power delivery over the same cable.

What stands out

• IP67 protection against dust and water
• 90° angled design for space-constrained installations
• Shielded metal housing for EMI resistance
• PoE support for simplified cabling
• Wide operating temperature range: -25°C to +85°C

Technical details

• Connector 1: M12, male, A-coded, 8-pin
• Connector 2: RJ45, female
• Data rate: 10/100 Mbps
• Compliance: IEC 61076-2-101
• Mounting: Inline / cable mount

Our verdict

A rugged, space-saving adapter for industrial Ethernet applications, offering solid performance and PoE convenience.
