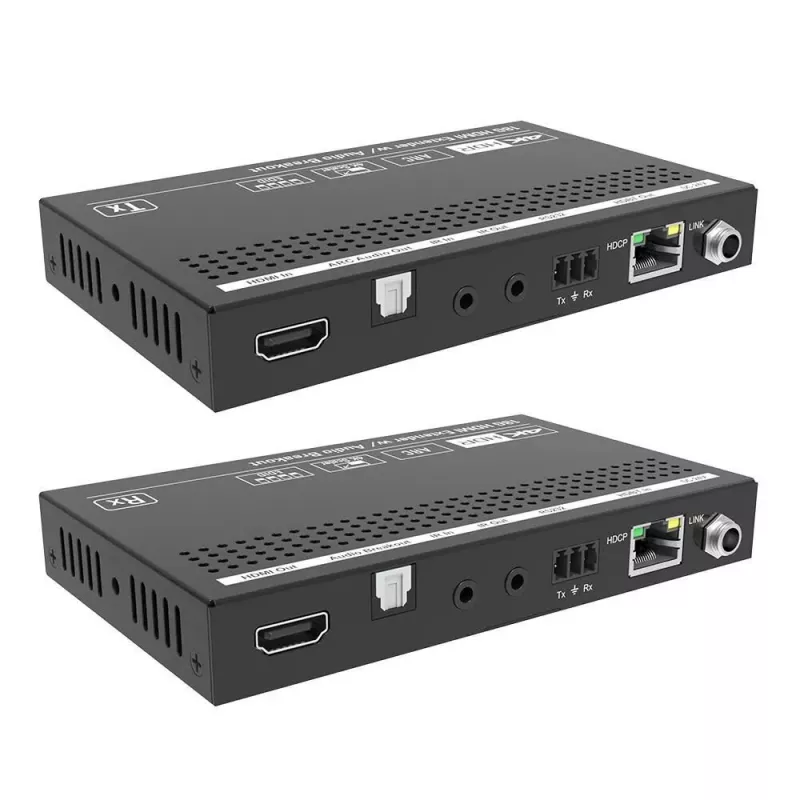

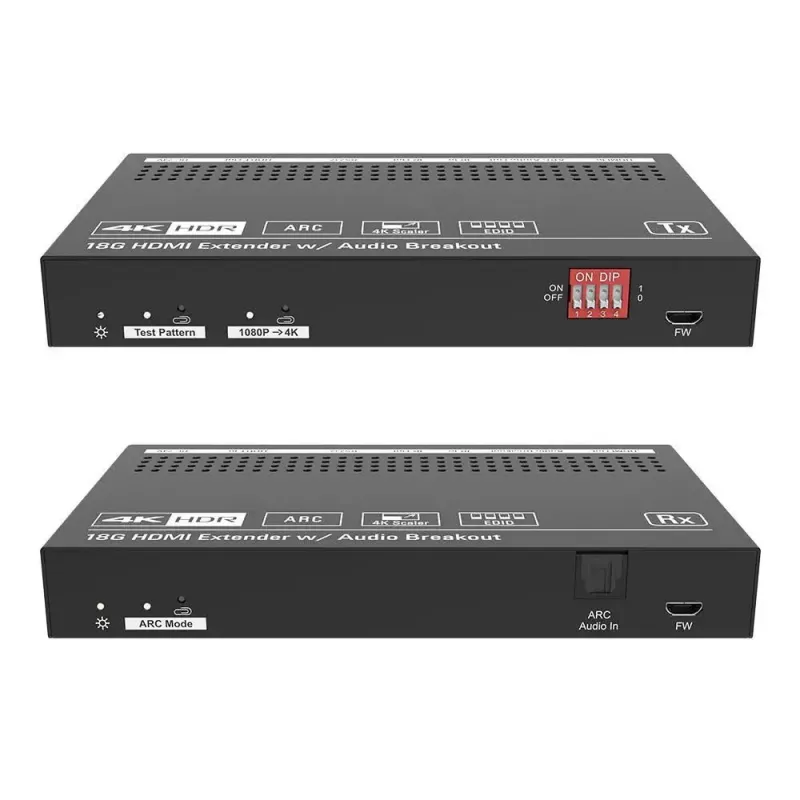

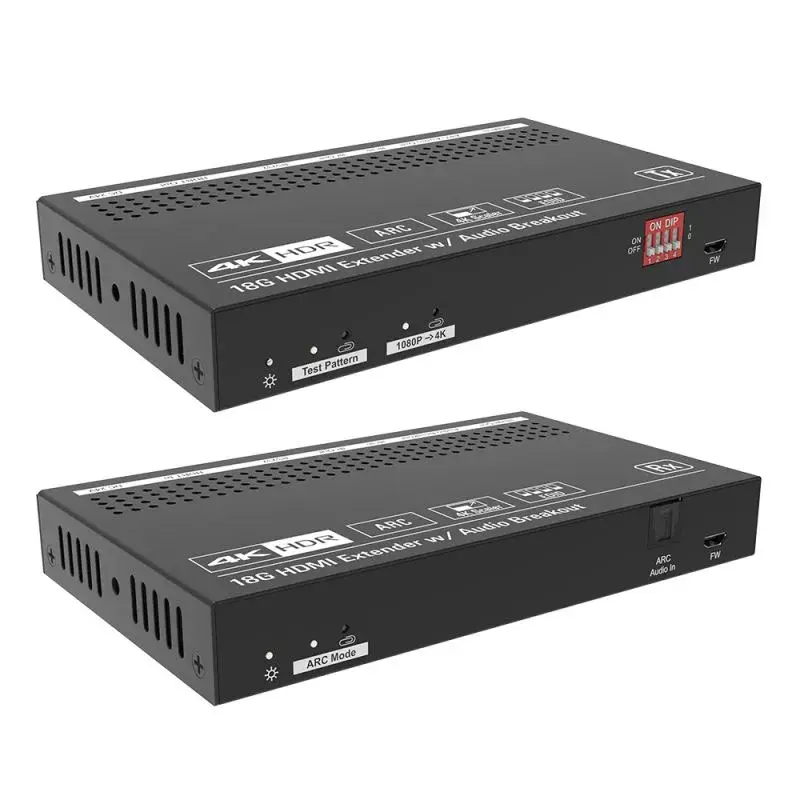

Extender AV Vivolink VLHDMIEXTHDB2.0S HDMI 2.0 4K 60Hz

The Vivolink VLHDMIEXTHDB2.0S is an AV extender that supports HDMI 2.0 with 18 Gbps bandwidth and audio breakout. It extends HDMI, IR and RS232 control signals over distance and can upscale a 1080p input to a 4K output automatically. The unit is suitable for installations where HDMI signal extension and remote control pass-through are required, such as meeting rooms, residential systems and digital signage.

Advantages

This HDMI 2.0 extender provides support for 4K@60Hz 4:4:4 and transmits full HD and UHD signals with minimal signal degradation. It includes audio breakout functionality and supports point-to-point Tx to Rx operation. The device enables signal extension up to 70 m for 1080p content and up to 40 m for 4K@60Hz 4:4:4, simplifying installation in professional AV setups.

Suitable for

• Meeting rooms and conference facilities
• Residential home theatre systems
• Digital signage and retail displays
• Classrooms and lecture halls

Key specifications

• Standard: HDMI 2.0, 18 Gbps
• Resolution support: up to 4K@60Hz 4:4:4; 1080p input can be upscaled to 4K output
• Transmission range: up to 70 m at 1080p; up to 40 m at 4K@60Hz 4:4:4
• Functionality: Tx–Rx point-to-point extender with IR and RS232 control passthrough
• Audio: audio breakout supported
• Brand / MPN / EAN: VivoLink / VLHDMIEXTHDB2.0S / 5715063697863

How to use

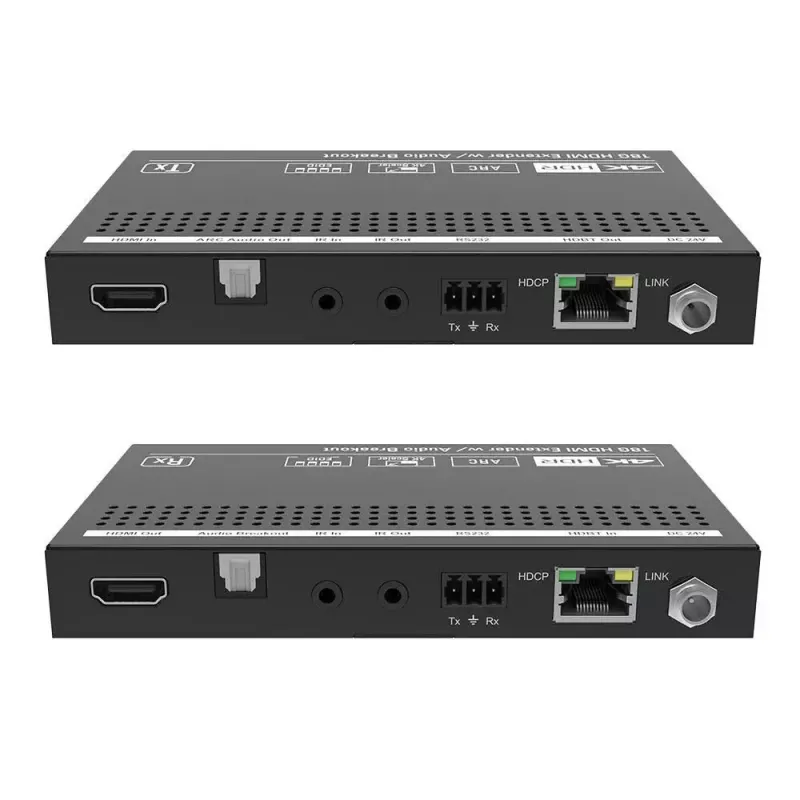

Connect the HDMI source to the transmitter (Tx) and the display to the receiver (Rx). Use the provided IR and RS232 ports to pass control signals between source and display as required. Power both units, and the extender will automatically handle signal transmission and can upscale a 1080p input to a 4K output when supported by the connected devices.

Recommendations

Install cables in accordance with recommended HDMI cable quality for the required distance. For 4K@60Hz 4:4:4 transmission use high-quality HDMI 2.0 cables and keep cable runs within the specified maximum distances (40 m for 4K, 70 m for 1080p). Ensure source and display devices support the desired resolutions and color formats.
