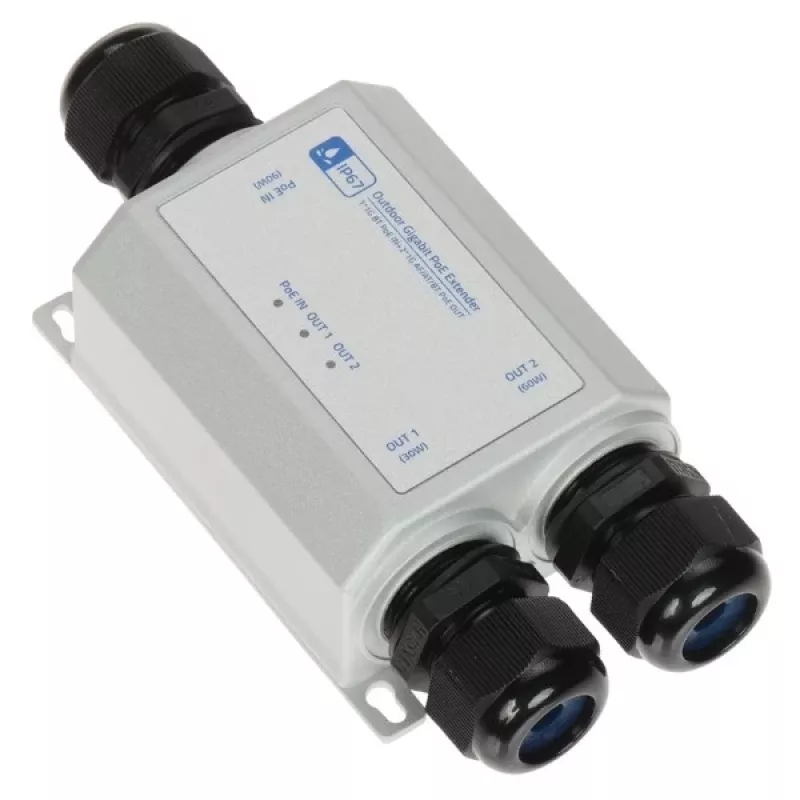

Extender Ethernet + PoE SPT-POE/2-POE-1G-IP67 Gigabit PoE+ IP67

The SPT-POE/2-POE-1G-IP67 is a robust Ethernet and Power over Ethernet (PoE) extender designed for industrial and outdoor environments. It extends both data and power up to 200 meters over a single Cat.5e/6 cable, supporting Gigabit speeds and PoE+ output up to 30W. With an IP67-rated aluminum housing, it withstands harsh conditions, making it ideal for surveillance, access control, and remote networking.

Advantages

This extender simplifies network expansion by eliminating the need for additional power sources. Its plug-and-play installation and rugged design ensure reliable performance in extreme temperatures (-40°C to +75°C) and high humidity. The integrated surge and ESD protection safeguard connected equipment.

Suitable for

• Extending PoE cameras, access points, and IoT devices in outdoor or industrial settings
• Deploying network infrastructure in warehouses, parking lots, and smart city projects
• Connecting remote devices where AC power is unavailable

Key specifications

• Product Type: Ethernet and PoE Extender
• Ethernet Speed: 10/100/1000 Mbps (Gigabit)
• PoE Standard: IEEE 802.3af/at (PoE/PoE+)
• Ports: 1x RJ45 PoE Input, 1x RJ45 PoE Output
• Max Extension Distance: Up to 200 m (100 m per segment)
• PoE Input Voltage: 48-57V DC
• Max PoE Output Power: 30W
• IP Rating: IP67
• Operating Temperature: -40°C to +75°C
• Housing Material: Aluminum Alloy
• Mounting: Wall/Pole mountable
• Power Consumption: <2W
• LED Indicators: Power, Link/Activity, PoE Status
• Protection: ESD, Surge
• Transmission Medium: UTP Cat.5e/6
• Installation: Plug & Play, no external power required
• Humidity: 0-95% non-condensing
• Certifications: CE, FCC

Recommendations

For optimal performance, use high-quality Cat.6 cable and ensure the PoE source provides sufficient power (48-57V). This extender is best suited for point-to-point extensions; avoid daisy-chaining multiple units without verifying power budgets.
