Extralink armadio rack 9U 600x450 ASP grigio montaggio a parete, porta in metallo

EXTRALINK 9U rack cabinet, 600x450, with tin doors

The Extralink rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The external walls are made of cold-rolled steel sheet. Cabinet doors are made of solid sheet metal with the possibility of opening to the left or right side.

Clearly marked cabinet height

Vertical rails have a corresponding height designation, which is 9U (unit). The total height of the cabinet is 50.5 cm.

Easy removal of side walls

Snap fasteners on the side walls allow for their disassembly. Locks and keys are included.

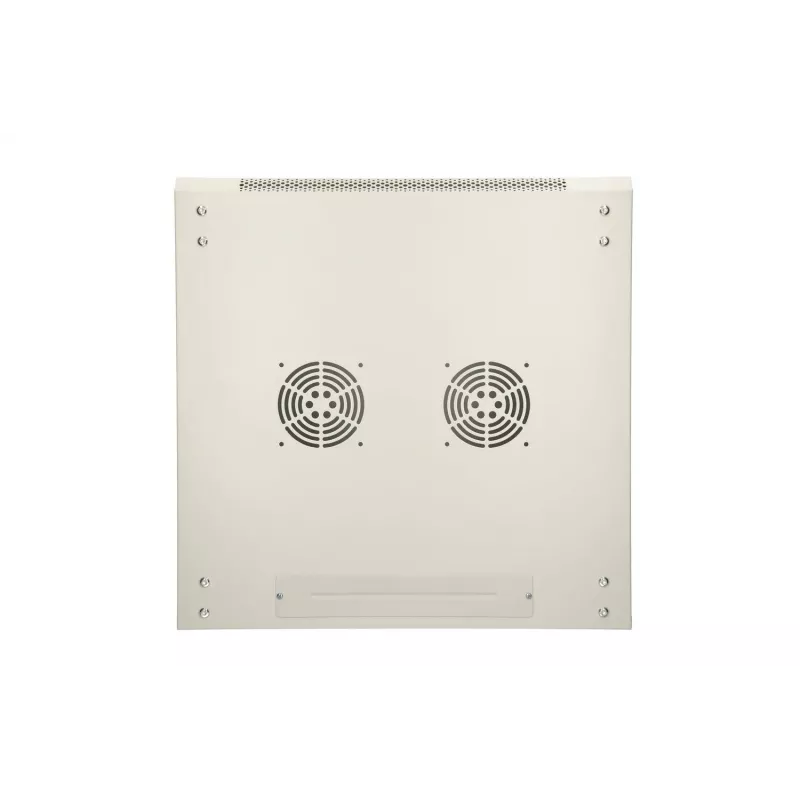

Fan-installed ceiling

On the ceiling of the cabinet there are 2 places to install fans for better cooling of the devices, as well as additional conduit for pulling out cables.

Cabinet construction - drawing

Features

• Standard 19'' mounting, welded frame, reliable design
• The frame construction is prepared for self-assembly, which facilitates transport and saves shipping costs
• Standing/Wall Mounting
• Easy installation (patent)
• Removable side panels
• Holes for cable entry, both on the top cover and on the bottom panel
• Door opening angle exceeding 180 degrees
