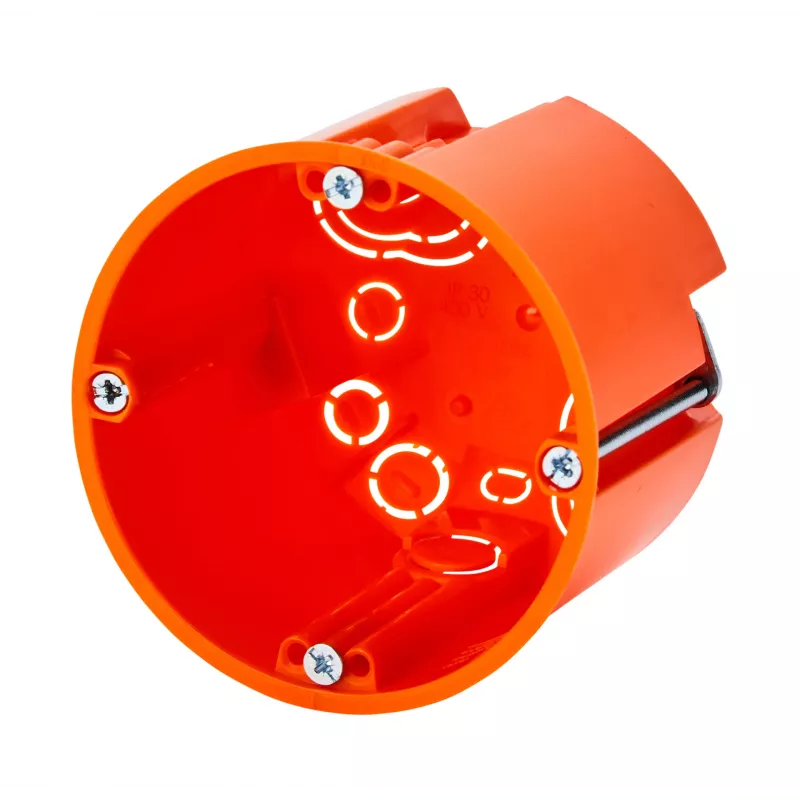

f-tronic HW scatola da incasso E117, Ø 68 mm, profondità 61 mm, senza alogeni, arancione 7350165

Electricians and installers working on cavity wall installations will find this f-tronic device box essential for mounting switches, sockets, and other electrical devices securely in hollow walls. The box features a mounting diameter of 68 mm and an installation depth of 61 mm, making it suitable for a wide range of standard devices. Its halogen-free plastic construction ensures safety in case of fire, and the orange colour provides high visibility during installation.

Key specifications

• Type: Cavity Wall Device Box
• Mounting diameter: 68 mm
• Installation depth: 61 mm
• Material: Halogen-free plastic
• Colour: Orange
• Glow wire test temperature: 850 °C
• Ingress protection: IP20
• Suitable for plate thickness: 7 - 35 mm
• With screw domes for device mounting
• Number of device screws: 2
• Multiple cable entries (knock-out)
• Standard compliance: DIN VDE 0606-1
• Replaced article number: 7350165

Why choose it

This device box is halogen-free and flame retardant, contributing to safer installations. The screw domes provide a secure mounting point for devices, and the multiple knock-out cable entries offer flexibility in wiring. Its compliance with DIN VDE 0606-1 ensures it meets relevant standards for such components.

Ideal use cases

• Installing light switches in plasterboard walls
• Mounting power sockets in hollow wall constructions
• Fixing data or TV outlets in cavity walls
• Use in residential and commercial buildings where halogen-free materials are required

Good to know

The box is designed for plate thicknesses from 7 to 35 mm, accommodating various wall finishes. It replaces the previous article number 7350165, ensuring continuity for existing projects.
