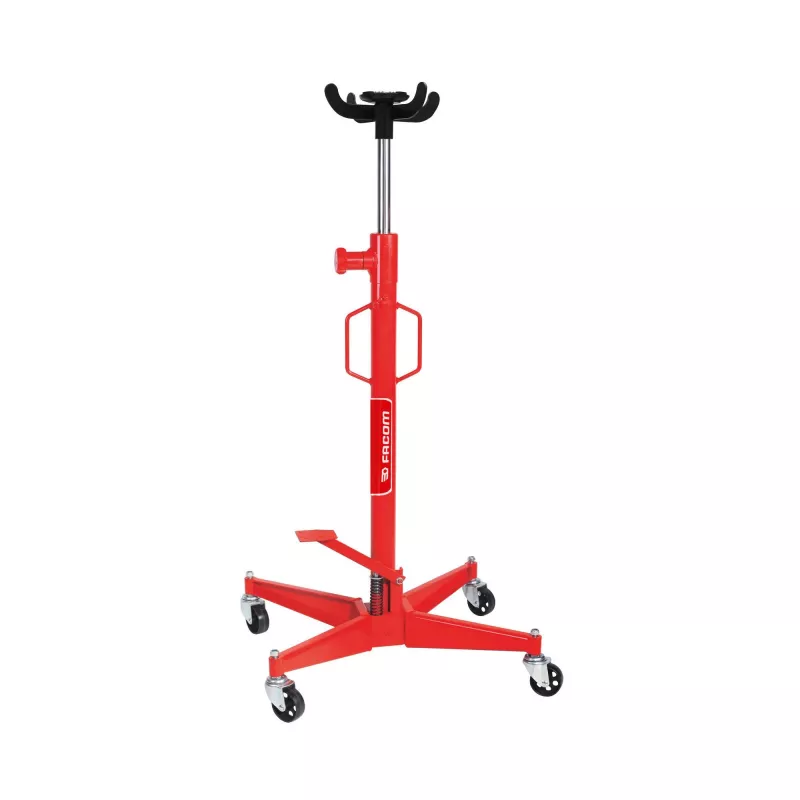

Facom DL.50 martinetto idraulico per trasmissione 500 kg portata, 1160-1960 mm altezza di sollevamento

The Facom DL.50 is a hydraulic transmission jack engineered for lifting and positioning gearboxes and other heavy components in automotive workshops. With a 500 kg lifting capacity and a telescopic two-stage ram, it provides a lifting range from 1160 mm to 1960 mm, making it suitable for a wide range of vehicles including light commercial vehicles.

Advantages

The DL.50 features a foot pedal with quick-release valve for controlled lowering, an overload safety valve to prevent damage from excessive load, and four swivel castors for easy manoeuvring. The universal adjustable saddle and swivel handle enhance versatility and operator comfort.

Suitable for

• Automotive repair shops and garages
• Transmission and gearbox installation and removal
• Supporting heavy components during vehicle servicing

Key specifications

• Product type: Transmission Jack
• Operation type: Hydraulic
• Lifting capacity: 500 kg
• Minimum lifting height: 1160 mm
• Maximum lifting height: 1960 mm
• Number of stages: 2-stage telescopic
• Base dimensions: 570 x 570 mm
• Number of wheels: 4
• Wheel type: Swivel castors
• Lowering control: Foot pedal with quick-release valve
• Safety features: Overload safety valve

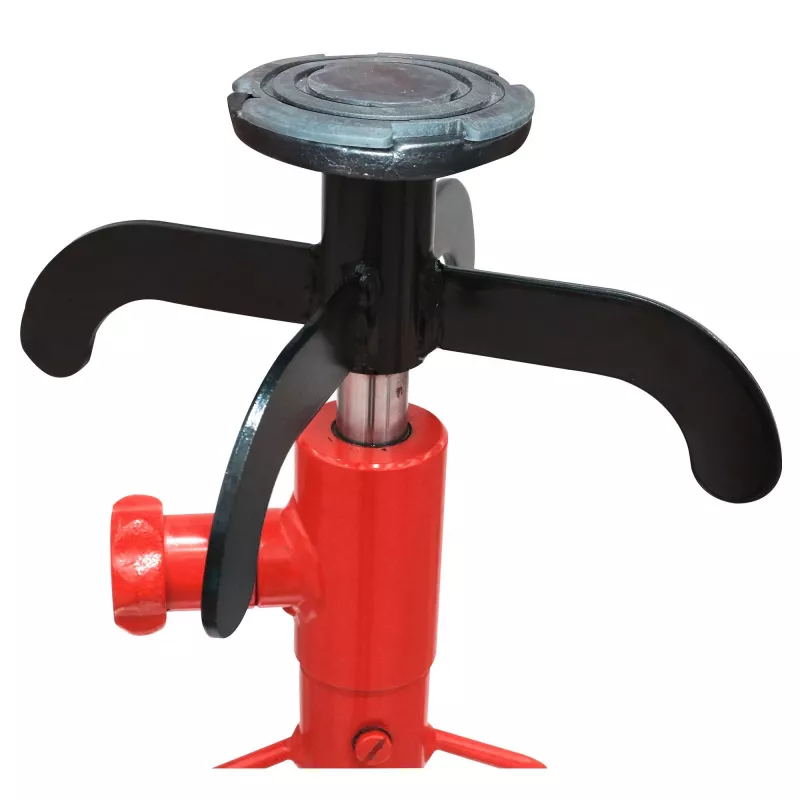

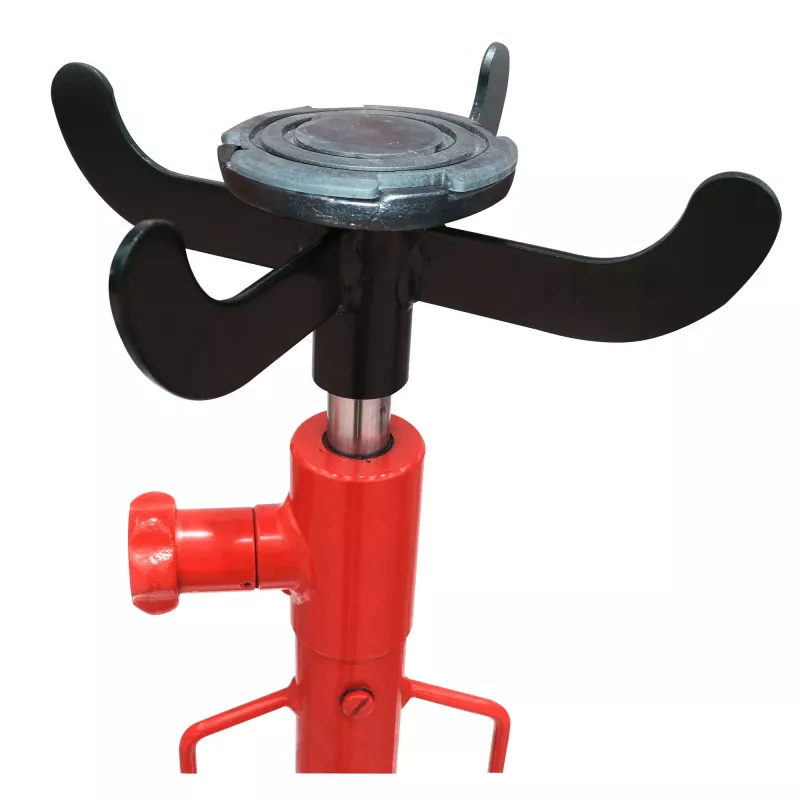

• Saddle type: Universal, adjustable
• Handle type: Swivel handle
• Construction material: High-strength steel
• Piston material: Chrome-plated

Recommendations

For professional workshops seeking a reliable and stable transmission jack, the Facom DL.50 offers robust construction and precise control, ensuring safe and efficient handling of heavy components.
