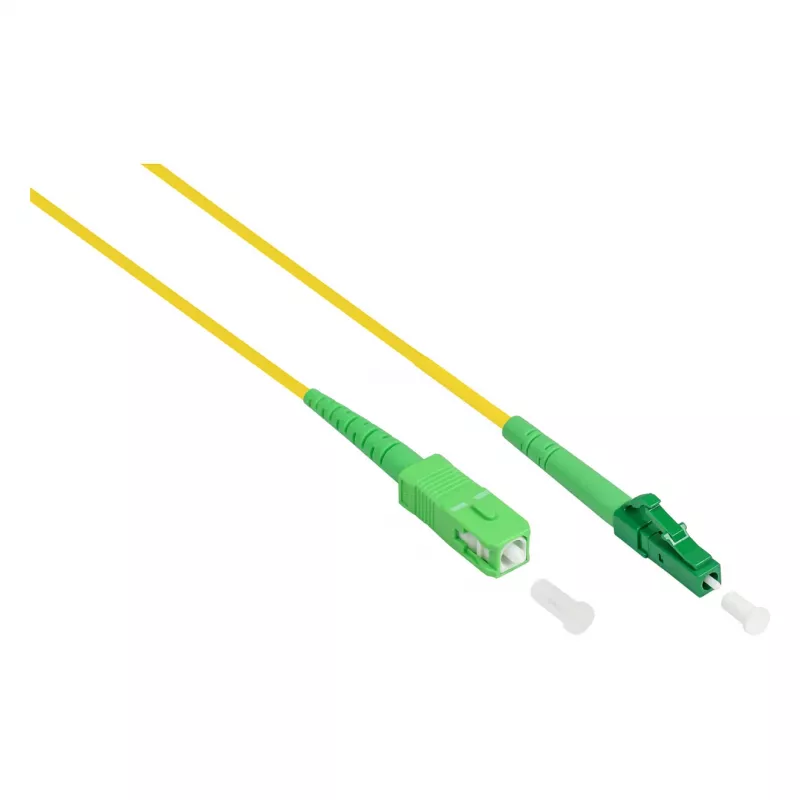

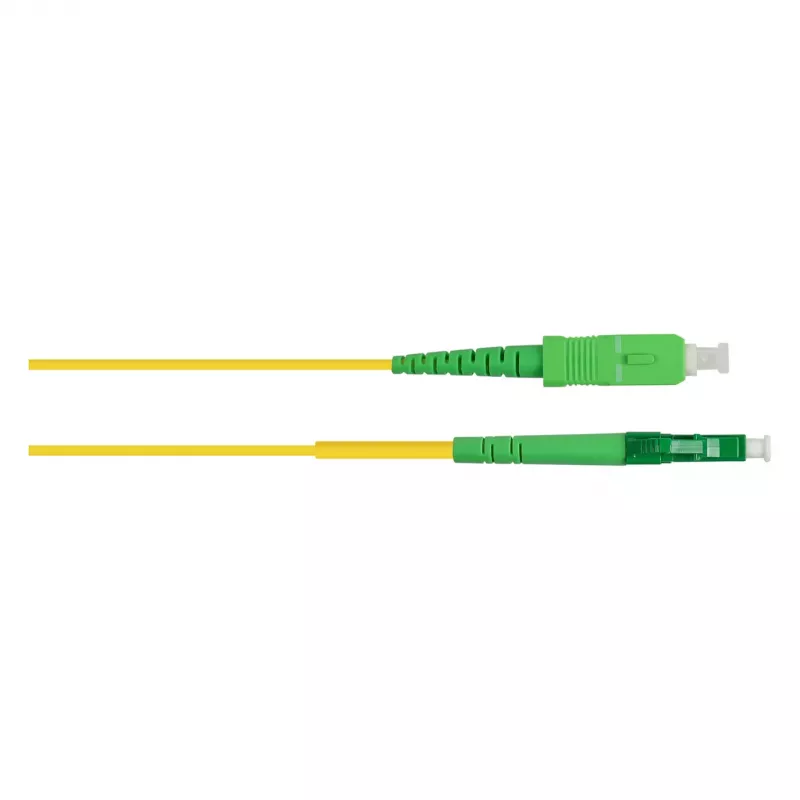

Good Connections cavo patch in fibra ottica OS2 simplex LC/SC SM 9/125µm 2m giallo

The Good Connections OS2 LWL Simplex Patch Cable LC/SC SM 9/125µm 2m is a high-performance fiber optic patch cable designed for reliable data transmission in data centers, telecommunication networks, LANs, and FTTx applications. Engineered with precision, this single-mode OS2 cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥50 dB. The LC to SC connectors with UPC polish provide a secure and stable connection. The yellow PVC jacket is durable and easy to identify, while the simplex construction saves space and simplifies cable management.

Suitable for

• Data centers requiring high-speed, reliable fiber connections
• Telecommunication networks for long-distance transmission
• Local Area Networks (LAN) and FTTx installations
• Connecting switches, routers, and patch panels

Key specifications

• Cable Type: Fiber Optic Patch Cable, Simplex
• Fiber Mode: Single-mode (SM), OS2
• Connectors: LC to SC, UPC polish
• Core/Cladding: 9/125 µm
• Length: 2 m
• Jacket: PVC, Yellow
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥50 dB (typical)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Store in a clean, dry environment within -40°C to +85°C.
