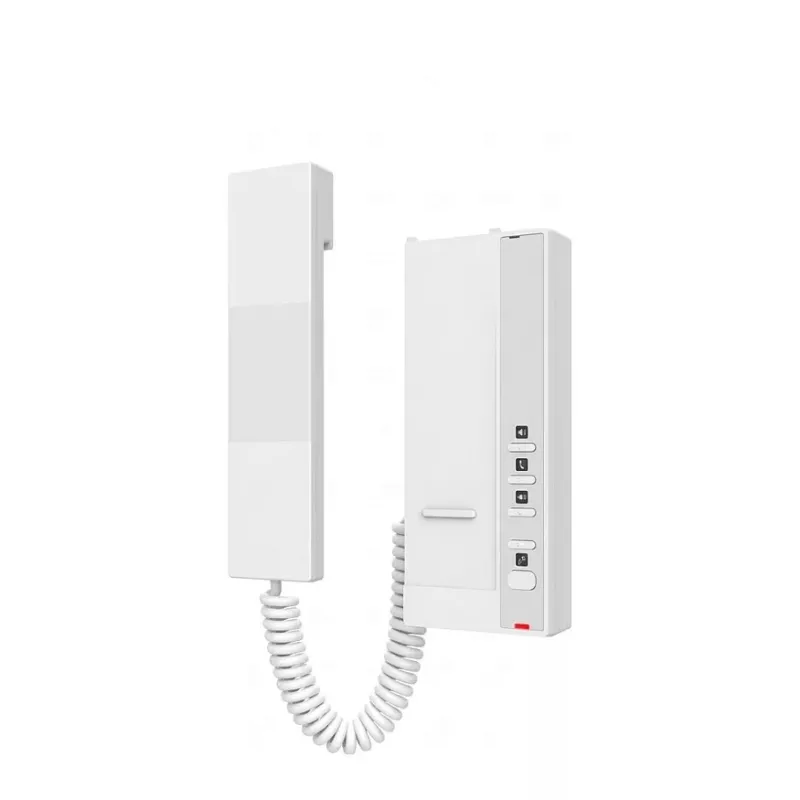

Fanvil i501W stazione interna SIP WiFi-6

The Fanvil i501W is a modern SIP indoor station with integrated WiFi-6, designed for IP video intercom and access control in residential and commercial buildings. It combines a 4-inch color TFT display, HD audio, and flexible networking options including PoE and dual-band WiFi-6.

Advantages

WiFi-6 ensures fast and reliable wireless connectivity, while the 4-inch color display provides clear video and intuitive menu navigation. The station supports 2 SIP lines, real-time monitoring, remote door opening, intercom, and alarm linkage, making it a versatile solution for security and communication.

Suitable for

• Apartment buildings and gated communities
• Office and commercial access control
• Smart home integration
• Replacing outdated analog door stations

Key specifications

• Display: 4-inch Color TFT LCD, 480x480 pixels
• Operating System: Linux
• SIP Lines: 2
• WiFi: WiFi-6 (802.11ax), 2.4GHz & 5GHz
• Ethernet: 1x 10/100 Mbps RJ45 with PoE (802.3af)
• DC Power: 12V/1A
• Audio: HD Audio, full-duplex speakerphone, AEC
• Video Decoding: H.264
• Alarm Inputs/Outputs: 8 inputs / 2 outputs
• RS485 Port: 1
• USB Port: 1 (Type A)
• Installation: Wall-mount (86 box compatible)
• Housing Material: Plastic
• Operating Temperature: -10°C to 50°C
• Operating Humidity: 10% to 90% (non-condensing)

Recommendations

For optimal performance, use a PoE switch or injector compliant with 802.3af. The i501W is ideal for new installations or upgrades where WiFi-6 infrastructure is available.
