Fanvil TFE stazione SIP da interno i506W

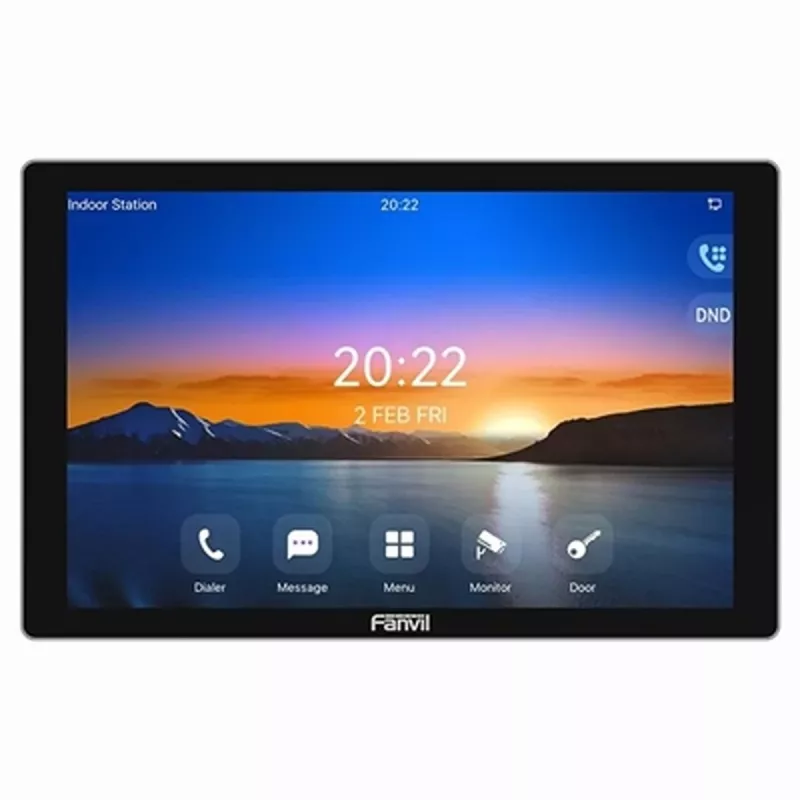

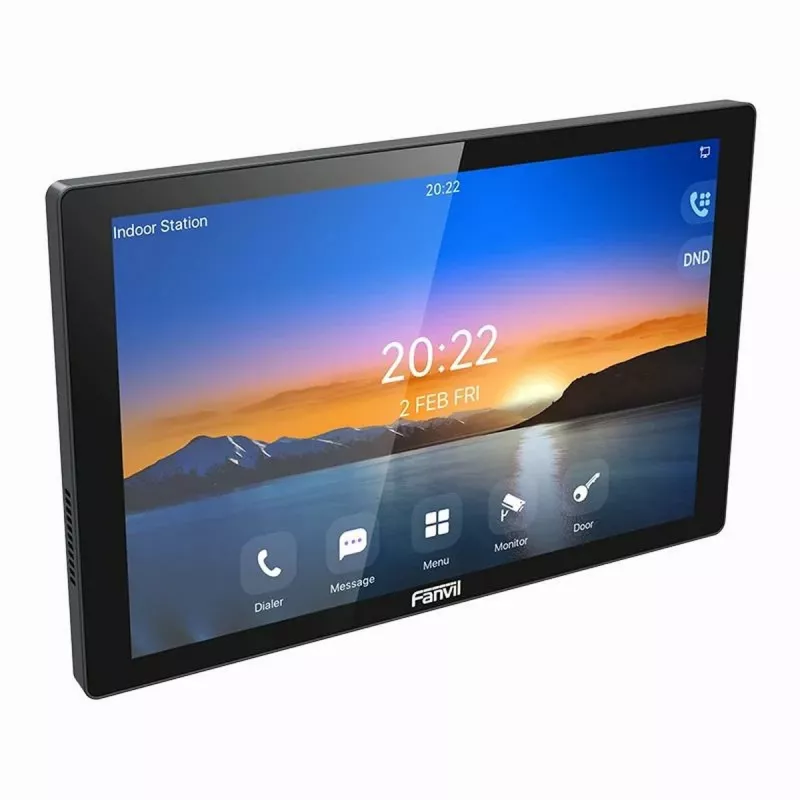

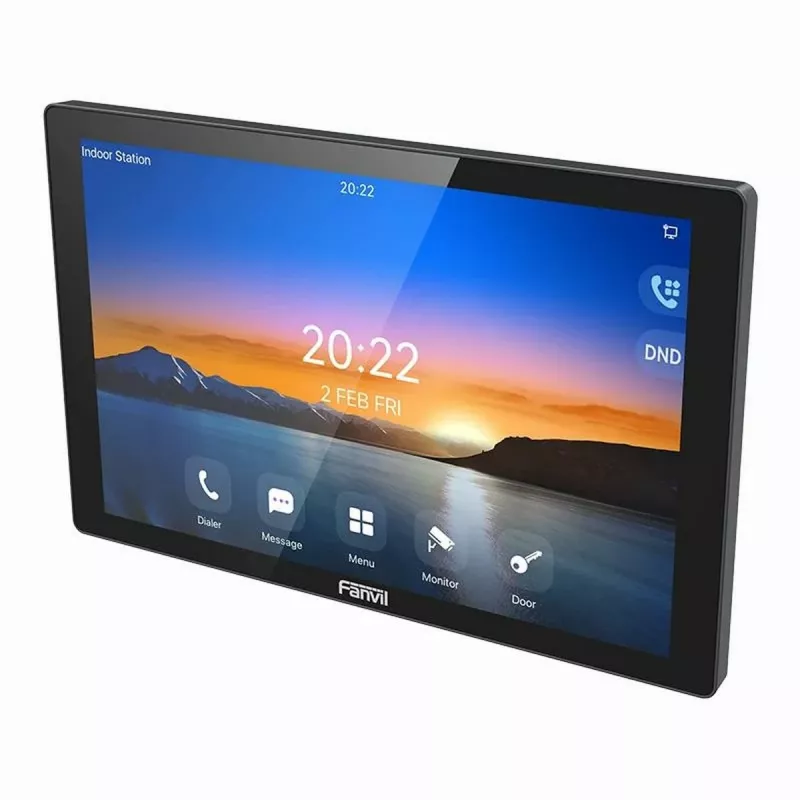

The Fanvil TFE SIP Indoor Station i506W is a high-performance IP video intercom designed for modern residential and commercial access control. Featuring a 7-inch capacitive touch screen with 1024x600 resolution, it delivers crisp video and intuitive operation. Built on Linux, it supports 2 SIP lines, Wi-Fi (2.4GHz 802.11b/g/n), Bluetooth 4.0, and PoE (802.3af) for flexible installation. With 8 alarm inputs, 2 outputs, RS485, USB, and TF card slot, it integrates seamlessly into security systems. Full-duplex hands-free audio with AEC and H.264 video up to 720P ensure clear communication.

Advantages

This indoor station offers a sleek, wall-mountable design with a vibrant touch interface. Its dual SIP lines and wide codec support (G.711, G.729, Opus, etc.) guarantee compatibility with major VoIP platforms. The built-in Wi-Fi and Bluetooth reduce wiring, while PoE simplifies power. Advanced security features include multiple alarm I/O and local storage via TF card.

Suitable for

• Apartment buildings and gated communities
• Office access control systems
• Smart home integration
• Hospitality and healthcare facilities

Key specifications

• Display: 7-inch capacitive touch, 1024x600
• OS: Linux
• SIP Lines: 2
• Ethernet: 1x 10/100 Mbps RJ45
• Wireless: Wi-Fi 802.11b/g/n, Bluetooth 4.0
• Power: 12V DC/1A or PoE 802.3af
• Audio Codecs: G.711a/u, G.723.1, G.726, G.729AB, iLBC, Opus
• Video Codec: H.264, up to 720P
• Alarm I/O: 8 inputs, 2 outputs
• Ports: RS485, USB, TF card slot
• Memory: 1GB RAM, 8GB Flash
• Mounting: Wall-mount (optional stand)

Recommendations

For optimal performance, pair with a PoE switch and compatible SIP server. Use the TF card for local recording. Ensure Wi-Fi signal strength for wireless deployment.
