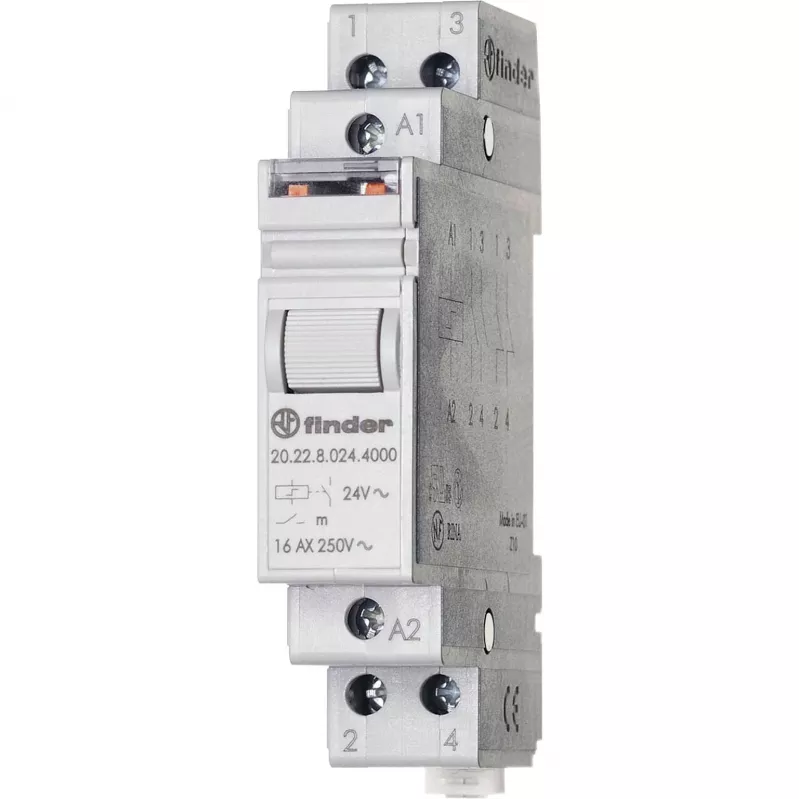

FINDER 20.22.8.024.4000 Interruttore a impulsi 24 V AC 2 NO 16 A guida DIN

With a rated contact current of 16 A and a coil voltage of 24 V AC, the FINDER 20.22.8.024.4000 step relay delivers robust switching for lighting and automation circuits. This DIN rail mounted module provides two normally open contacts and is engineered for high electrical endurance.

Overview

The FINDER 20.22.8.024.4000 is a step relay (impulse switch) designed for staircase lighting, corridor lighting, and other applications where a single pushbutton controls a load from multiple locations. Each pulse of the coil toggles the relay state, eliminating the need for latching switches. It features screw terminals for secure wiring and a compact 1-module width (17.5 mm) for efficient use of distribution board space.

What stands out

• High switching capacity: 16 A at 250 V AC, max 4000 VA
• Long mechanical life: 1,000,000 operations
• Electrical life: 100,000 cycles at AC1
• Wide operating temperature range: -40 to +40 °C
• DIN rail mounting for quick installation
• Silver tin oxide (AgSnO2) contacts for reliable performance

Technical details

• Contact configuration: 2 NO (normally open)
• Coil voltage: 24 V AC
• Coil power consumption (pull-in): 15 VA
• Minimum impulse duration: 50 ms
• Dielectric strength (coil-contacts): 4 kV AC
• Terminal type: screw terminals
• Protection degree: IP20 (terminals)
• Module width: 1 module (17.5 mm)

Our verdict

A reliable and durable step relay for residential and commercial lighting control, offering high switching capacity and easy DIN rail mounting.
