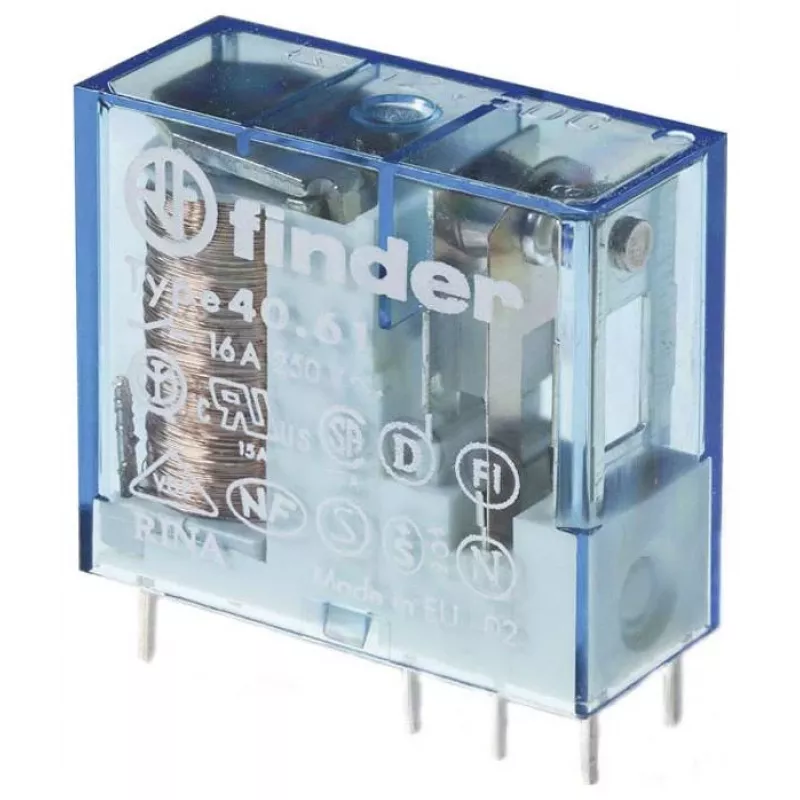

Finder 40.61.7.012.1000 relè di potenza 12 V DC 16 A SPDT relè a innesto

With a 16 A SPDT contact and 4000 VA switching capability, this power relay handles demanding AC loads while consuming only 0.5 W coil power.

Overview

The Finder 40.61.7.012.1000 is a plug-in power relay with one changeover contact (SPDT), rated for 16 A at 250 V AC. It operates on a 12 V DC coil and offers a maximum switching voltage of 400 V AC. The contact material is silver nickel (AgNi), ensuring reliable performance in general-purpose applications.

What stands out

• High switching power: 4000 VA (AC1)
• Flux-proof construction (RT I protection)
• Fast operation: 7 ms operate, 3 ms release
• Wide operating temperature range: -40 to +70 °C
• Long mechanical life: 10 million cycles

Technical details

• Contact configuration: 1 CO (SPDT)
• Coil voltage: 12 V DC
• Contact current rating: 16 A
• Contact voltage rating: 250 V AC
• Max switching voltage: 400 V AC
• Contact material: AgNi
• Coil power: 0.5 W
• Number of pins: 5
• Mounting type: Plug-in
• Dielectric strength (coil-contact): 5500 V AC
• Insulation resistance: 1000 MΩ
• Electrical life (at rated load): 100,000 cycles
• Mechanical life: 10,000,000 cycles
• Terminal type: Faston 187 (4.8 x 0.5 mm)
• Protection degree: RT I (Flux proof)
• Max switching power (AC1): 4000 VA
• Operate time: 7 ms
• Release time: 3 ms

Our verdict

A robust plug-in relay for industrial control and power switching, offering high contact ratings and reliable operation in a compact package.
