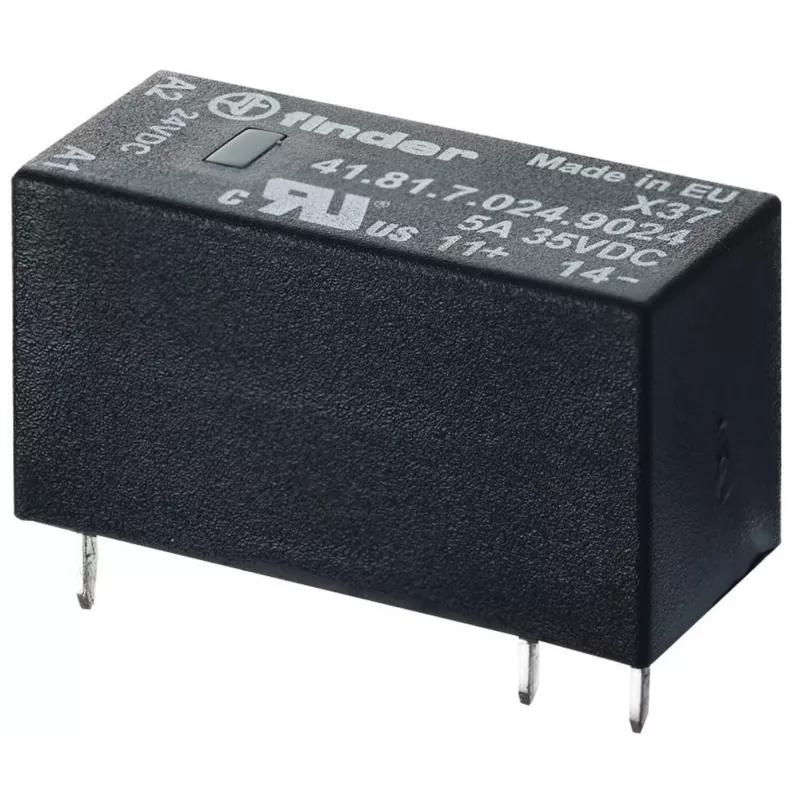

Finder 41.81.7.024.9024 relè a stato solido optoisolatore 5A DC 24V

Rated for a continuous 5 A DC load with a 24 V DC control input, the Finder 41.81.7.024.9024 optocoupler relay switches in under 0.1 ms and handles peak currents up to 10 A for 10 ms. Its 6.2 mm plug-in housing fits standard 90 Series sockets, making it a compact solution for high-frequency DC switching up to 300 Hz.

Overview

The Finder 41.81.7.024.9024 is a solid state relay (SSR) with optocoupler isolation, designed for DC load switching in industrial control systems. It features a normally open (1 NO) contact, a nominal input voltage of 24 V DC (range 19.2–28.8 V DC), and a nominal output voltage of 24 V DC with a maximum output voltage of 30 V DC. The relay provides galvanic isolation of 2.5 kV AC between input and output and operates within a temperature range of -20 to +60 °C.

What stands out

• Fast switching: response time under 0.1 ms ON and 0.5 ms OFF
• High inrush capability: 10 A peak for 10 ms
• Low voltage drop: less than 0.2 V at 5 A
• Compact plug-in design: 6.2 mm width for 90 Series sockets
• Input reverse polarity protection

Technical details

• Relay type: Solid State Relay (SSR)
• Input type: DC (optocoupler)
• Nominal input voltage: 24 V DC
• Input voltage range: 19.2 to 28.8 V DC
• Output type: DC switching
• Nominal output voltage: 24 V DC
• Rated output current: 5 A
• Max peak output current: 10 A (10 ms)
• Max output voltage: 30 V DC
• Min output current: 10 mA
• Output voltage drop: < 0.2 V @ 5 A
• Number of poles: 1 NO
• Isolation voltage: 2.5 kV AC
• Operating temperature: -20 to +60 °C
• Mounting type: plug-in (90 Series sockets)
• Switching frequency: max 300 Hz
• Response time ON: < 0.1 ms
• Response time OFF: < 0.5 ms
• Protection: input reverse polarity
• Housing width: 6.2 mm

Our verdict

A high-speed DC SSR that delivers reliable switching in a space-saving package, ideal for demanding automation tasks.
