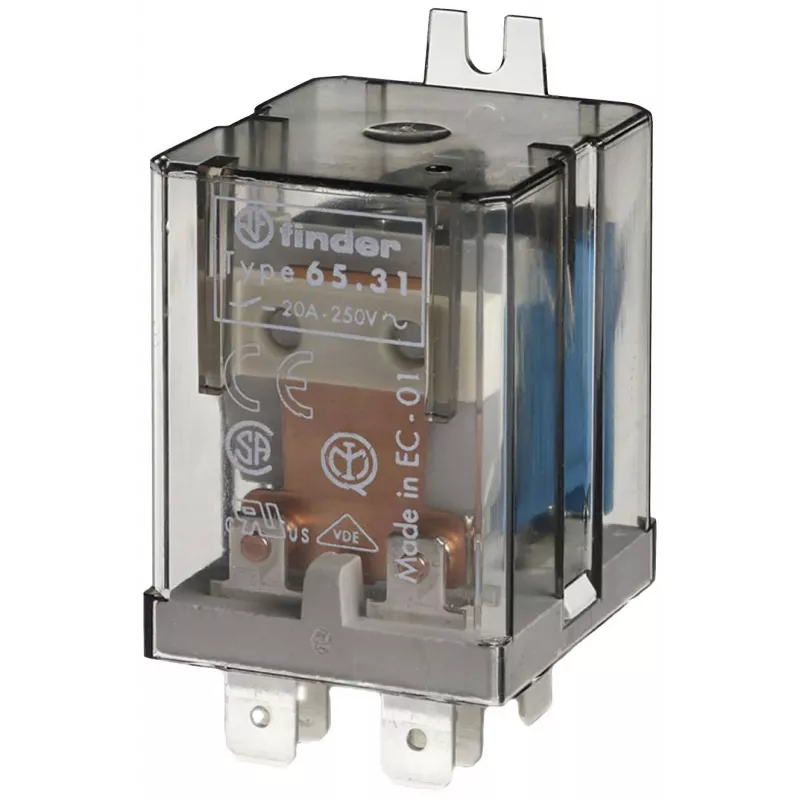

Finder 65.31.9.024.4309 relè di potenza 24V DC 30A 1NO Faston

Power relay with 1 normally open contact, rated for 30 A at 250 V AC. Coil voltage 24 V DC, Faston 6.3 mm terminals, panel mount.

Advantages

High switching capacity up to 7500 VA, flux proof protection, wide operating temperature range from -40 to +70 °C.

Suitable for

• Industrial control systems
• Heating and motor loads
• Panel mounting applications

Key specifications

• Contact configuration: 1 NO (SPST-NO)
• Rated current: 30 A
• Coil voltage: 24 V DC
• Coil resistance: 480 Ohm
• Coil power consumption: 1.2 W
• Terminal type: Faston 6.3 mm
• Contact material: AgCdO
• Dielectric strength coil-contact: 4000 V AC
• Mechanical life: 10 x 10^6 operations
• Electrical life at rated load: 100 x 10^3 operations
• Release time: approx. 10 ms
• Max switching power AC1: 7500 VA
• Insulation type: Basic insulation
• Mounting: Panel mount
• Protection degree: RT I (flux proof)

Recommendations

Verify coil voltage and contact rating before installation. Ensure proper panel mounting and use appropriate Faston connectors.
