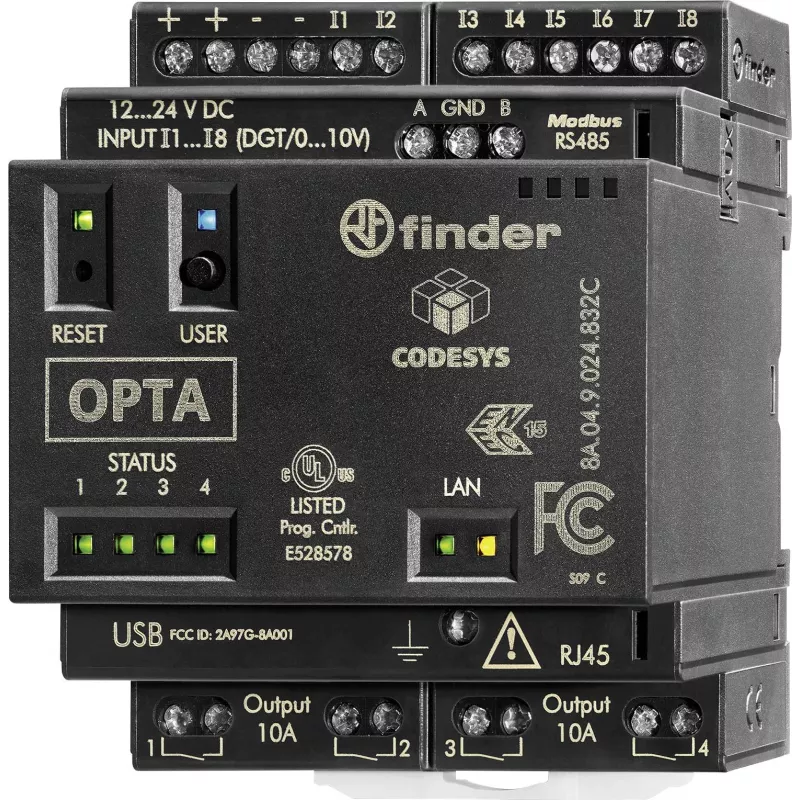

Finder relè logico programmabile (PLR) modulo di controllo PLC, 24 V DC, 8 ingressi digitali, 4 ingressi analogici, 4 uscite a relè, 8 A, display LCD, montaggio su guida DIN, 8A.04.9.024.832C

Equipped with 8 digital inputs, 4 analog inputs (0-10 V, shared with digital inputs), and 4 relay outputs rated at 8 A, this programmable logic relay delivers flexible control for industrial automation. The integrated LCD (4 lines x 18 characters) and 4 function keys allow on-site programming and monitoring without a PC.

Overview

The Finder 8A.04.9.024.832C is a programmable logic relay (PLR) designed for small to medium automation tasks. It operates on 24 V DC and supports Ladder Diagram (LD) and Function Block Diagram (FBD) programming languages, with a program memory of 400 lines (LD) or 300 blocks (FBD). A real-time clock with battery backup enables time-based control functions.

What stands out

• 8 digital inputs, configurable as PNP or NPN
• 4 analog inputs (0-10 V) shared with digital inputs
• 4 relay outputs (normally open), each rated 8 A AC1
• Integrated LCD and keypad for standalone programming
• RS232 interface for PC programming
• Real-time clock with battery backup
• 35 mm DIN rail mounting

Technical details

• Supply voltage: 24 V DC
• Digital inputs: 8 (PNP/NPN configurable)
• Analog inputs: 4 (0-10 V, shared)
• Relay outputs: 4 (NO), max switching voltage 250 V AC / 30 V DC
• Output current: 8 A per output (AC1)
• Programming: LD, FBD; memory 400 lines (LD) / 300 blocks (FBD)
• Display: LCD, 4 lines x 18 characters
• User interface: 4 function keys
• Communication: RS232
• Real-time clock: yes, with battery backup
• Mounting: 35 mm DIN rail
• Protection degree: IP20 front panel, IP40 terminals
• Operating temperature: -25 to +55 °C
• Functions: timers, counters, comparators, logic functions

Our verdict

With its integrated display, versatile I/O, and robust relay outputs, this PLR is a practical choice for standalone control tasks in industrial environments.
