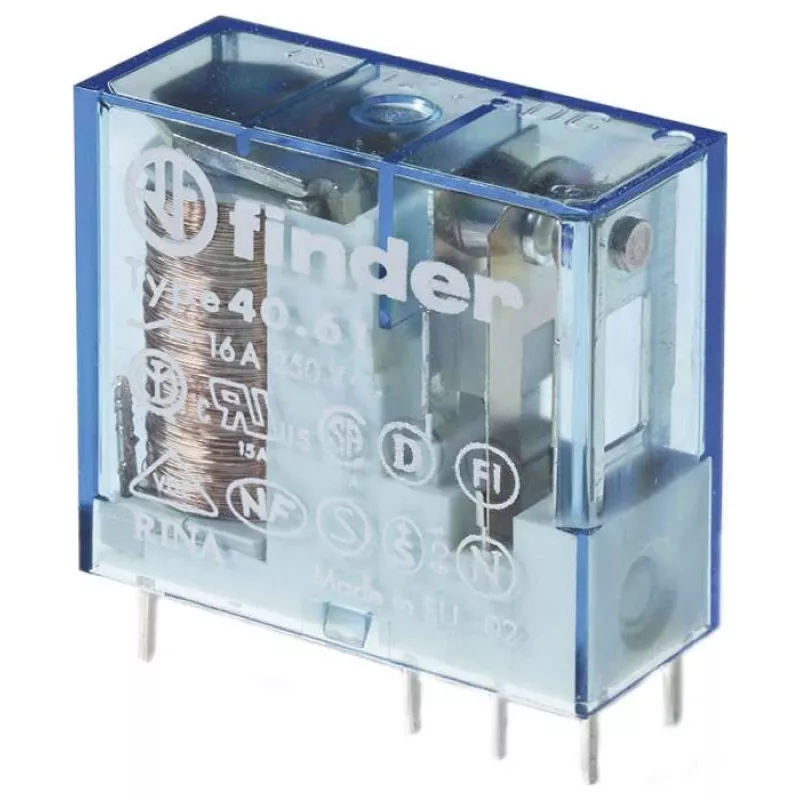

Finder Relè PCB in miniatura di potenza 1 scambio 16A 24V DC bobina 406190241000

When a control signal must switch a 16 A load on a printed circuit board, a compact relay with a 24 V DC coil is required. The Finder 406190241000 miniature power PCB relay provides one changeover contact (SPDT) with silver-nickel contacts, rated for 16 A at 250 V AC, making it suitable for appliances, HVAC, and industrial controls.

Who is it for

This relay is for design engineers and technicians who need a reliable PCB-mounted switching solution for moderate power loads, with a coil voltage compatible with common 24 V DC control circuits.

Main features

• 1 changeover contact (SPDT) with AgNi contacts
• Rated contact current: 16 A
• Coil voltage: 24 V DC
• Coil power consumption: 0.5 W
• PCB mounting with flux-proof RT II protection

Specifications

• Contact configuration: 1 CO (SPDT)
• Contact material: AgNi (Silver Nickel)
• Rated contact current: 16 A
• Max. switching voltage: 400 V AC
• Rated switching voltage: 250 V AC
• Max. switching power: 4000 VA
• Coil voltage: 24 V DC
• Coil resistance: 1152 Ω
• Dielectric strength (coil-contact): 5000 V AC
• Dielectric strength (open contacts): 1000 V AC
• Operating temperature range: -40°C to +85°C
• Mechanical life: 10 x 10^6 operations
• Electrical life at rated load: 100 x 10^3 operations
• Mounting type: PCB
• Protection degree: RT II (Flux proof)

Tips

For PCB layout, ensure adequate creepage distances for the switching voltage. The flux-proof construction allows soldering and cleaning without damage.
