Finder serie 38 modulo relè di interfaccia, 1 CO 6A, bobina 12V DC, 6,2mm, Push-in 38.51.7.012.5050

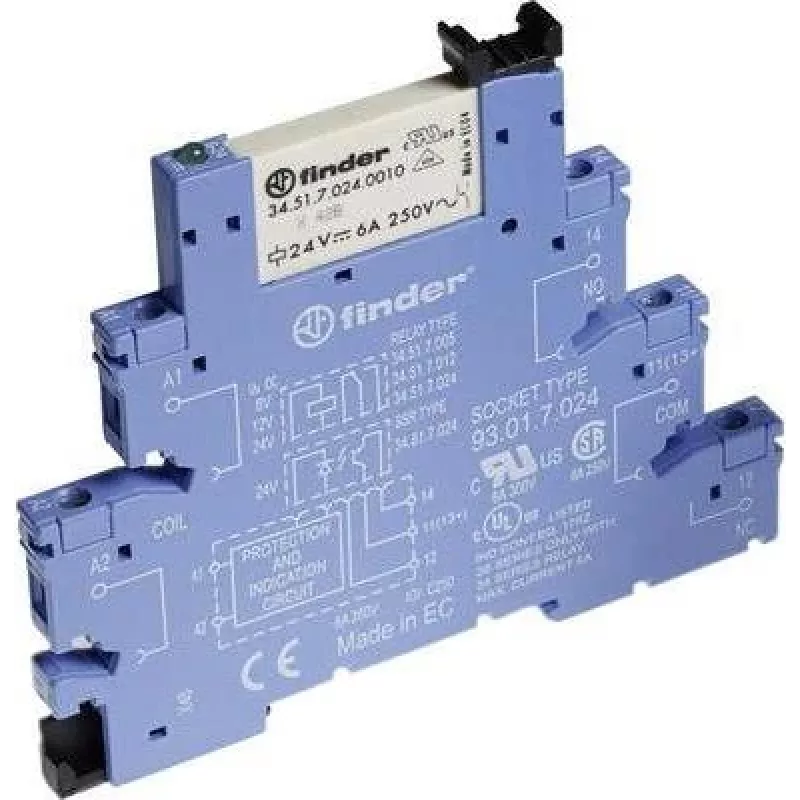

In industrial control panels, space is at a premium and reliable signal conversion is critical. The Finder 38 Series Interface Relay Module (type 38.51.7.012.5050) solves both challenges: it packs a 1 changeover (SPDT) relay with 6 A switching capability into an ultra-slim 6.2 mm DIN rail housing, providing a compact interface between PLC outputs and field devices. Its 12 V DC coil and push-in terminals ensure fast, tool-free wiring, while the integrated LED and protection coil simplify commissioning and diagnostics.

Who is it for

This module is ideal for panel builders, system integrators, and maintenance engineers working in automation, building management, and machinery control. It suits applications where multiple relays must fit in limited cabinet space, such as PLC output isolation, signal amplification, or driving small contactors and valves.

Main features

• Ultra-slim 6.2 mm width saves up to 50% rail space compared to standard relays
• 1 changeover contact (SPDT) rated 6 A / 250 V AC for versatile switching
• 12 V DC coil with low power consumption (0.17 W) and LED status indicator
• Push-in terminals for quick, secure connection without special tools
• High dielectric strength (6 kV between coil and contacts) for safe isolation
• Wide operating temperature range from -40 °C to +70 °C

Specifications

• Contact configuration: 1 CO (SPDT)
• Rated current: 6 A
• Rated voltage: 250 V AC
• Coil voltage: 12 V DC
• Mounting: DIN rail (EN 60715)
• Terminal type: Push-in
• Contact material: AgNi
• Electrical life: 100,000 operations at rated load
• Mechanical life: 10 million operations
• Protection degree: IP20
• Operating temperature: -40 °C to +70 °C
• Dimensions (W x H x D): 6.2 x 94.3 x 76 mm

Tips

Use a 12 V DC power supply with adequate capacity for the coil load. For inductive loads, consider adding a freewheeling diode or RC snubber to extend contact life. Ensure adequate ventilation in the enclosure, as the module is rated IP20 and not protected against dust or moisture.
