Finisar FTLX1475D3BCV compatibile BlueOptics SFP+ BO35J13610D 10GBASE-LR 10km

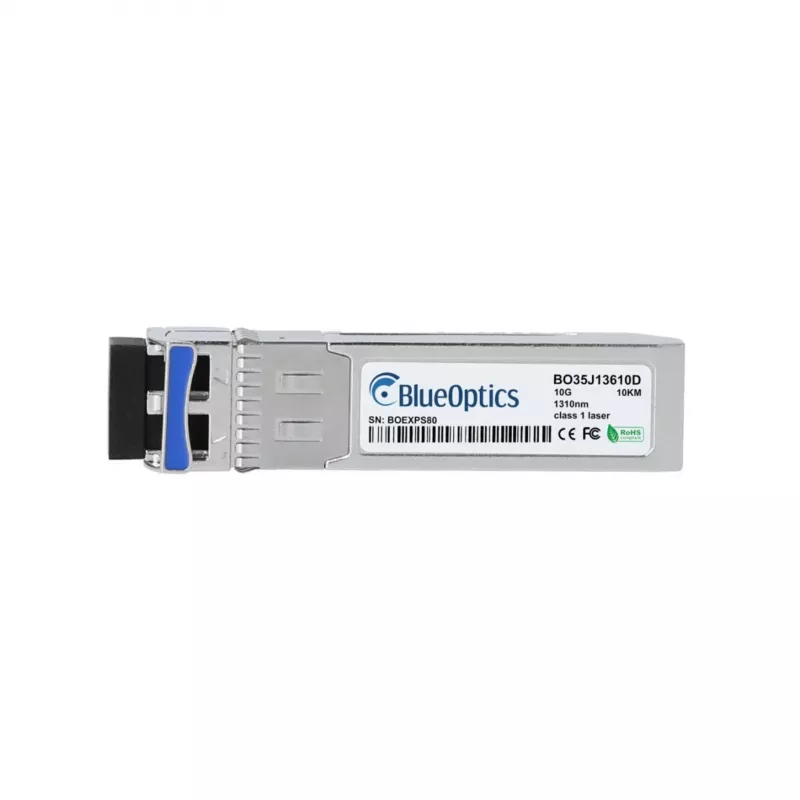

The BlueOptics BO35J13610D is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet applications. It is fully compatible with Finisar FTLX1475D3BCV and offers reliable connectivity over single-mode fiber at distances up to 10 km. This hot-pluggable module features a 1310 nm DFB laser, LC duplex connector, and supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking.

Advantages

Cost-effective alternative to OEM modules without compromising quality. Low power consumption under 1.0 W ensures energy efficiency. Robust design for commercial temperature ranges (0°C to 70°C).

Suitable for

• 10 Gigabit Ethernet networks
• Data center interconnects
• Enterprise LAN and WAN applications
• Telecommunications infrastructure

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Wavelength: 1310 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Standard: 10GBASE-LR
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C
• Supply Voltage: 3.3 V
• Laser Type: DFB Laser
• Receiver Type: PIN
• Transmitter Output Power: -6.5 dBm to -0.5 dBm
• Receiver Sensitivity: -14.4 dBm
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, use with compatible SFP+ switches and routers. Ensure proper fiber cleaning before installation. This module is a direct replacement for Finisar FTLX1475D3BCV.
