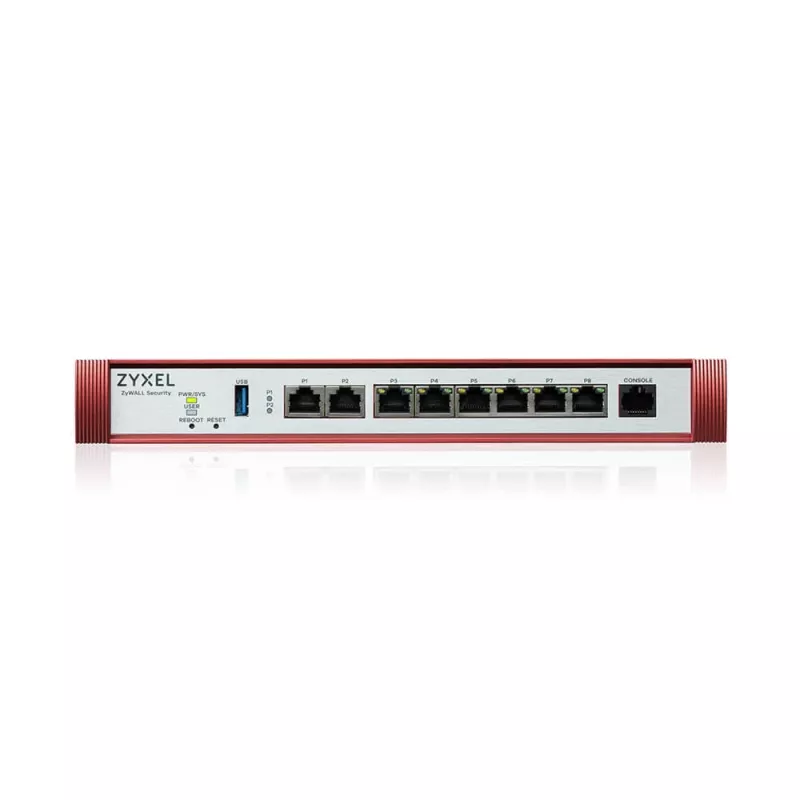

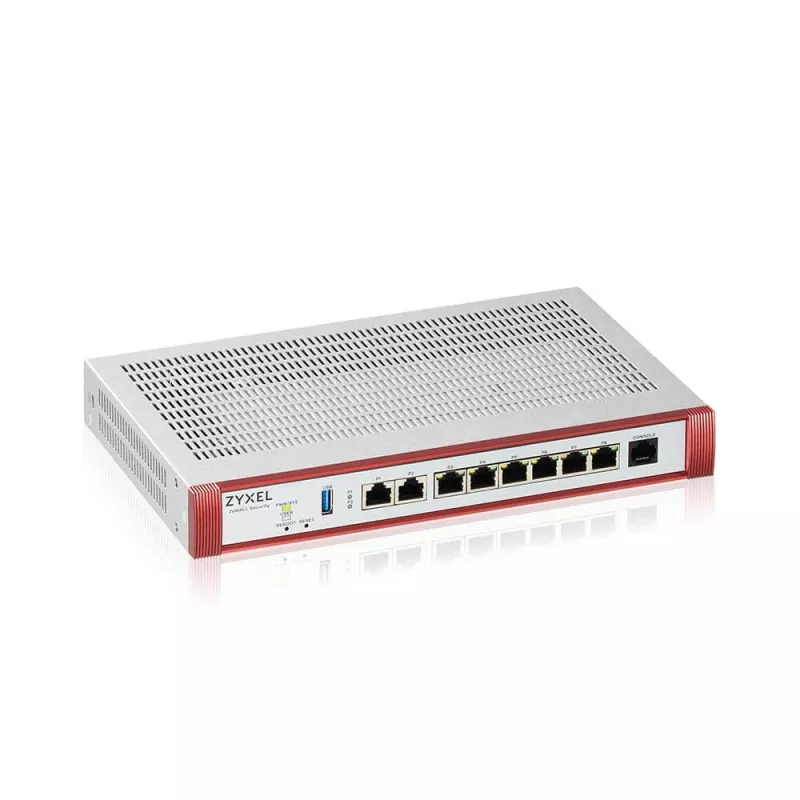

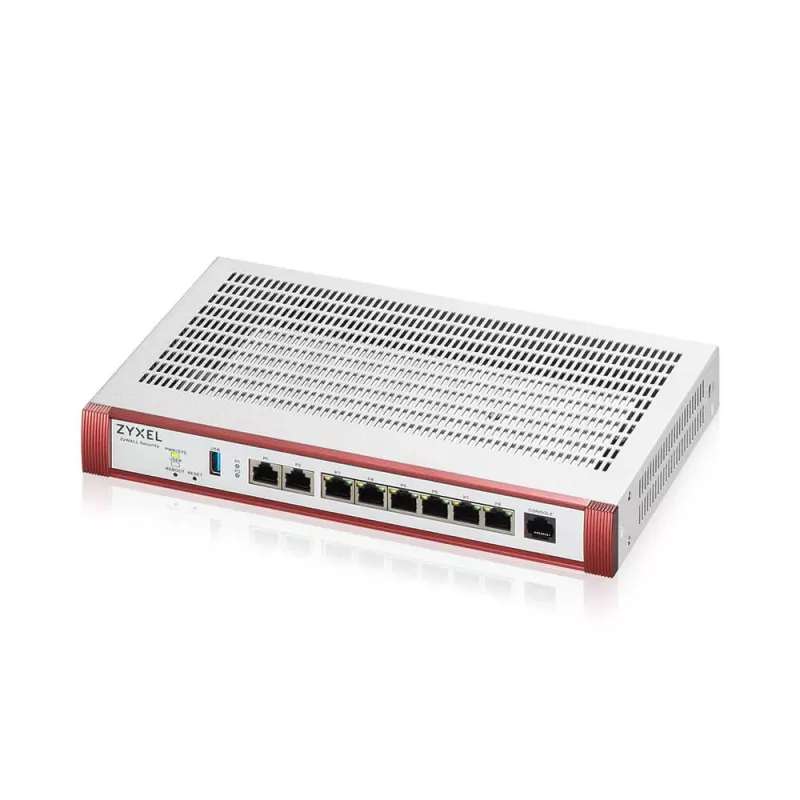

Firewall hardware Zyxel USG FLEX 200H 5 Gbit/s

The Zyxel USG FLEX 200H is a high-performance hardware firewall designed for SMBs and distributed networks, providing fast VPN and Unified Threat Management (UTM) capabilities. It combines multi-core hardware, Fastpath technology and Zyxel’s AI Security Cloud to deliver multi-layered protection for the firewall, network infrastructure and connected users while maintaining high throughput and low latency.

Advantages

Ultra-high performance is achieved through next-generation multi-core hardware and Fastpath optimizations, allowing the USG FLEX 200H to significantly boost processing efficiency and meet the demands of high-speed networks. Flexible port options include 2.5 Gbps and 10 Gbps speed support and software-defined ports for configurable WAN or LAN roles. The device can provide up to 2 integrated PoE+ ports (30 W each) to power compatible equipment directly from the firewall. Centralized cloud management via Nebula simplifies configuration and deployment across multiple devices. AI-powered cloud security adds sandboxing, anti-malware, DNS/IP/URL filtering, IPS and application control for layered threat protection. The new uOS operating system improves security, reduces system response time and streamlines policy and configuration management with an updated user experience.

Suitable for

• Small and medium-sized businesses requiring hardware firewall protection and VPN services
• Distributed offices and branch locations managed centrally via cloud (Nebula)
• Environments needing high IPS/IDS throughput and low-latency VPN (IKEv2/IPSec/SSL)
• Setups that benefit from PoE+ to power devices such as access points, VoIP phones or 5G routers

Key specifications

• Model: Zyxel USG FLEX 200H (USGFLEX200H-EU0101F)
• Throughput: up to 5 Gbit/s
• IPS/IDS throughput: 2000 Mbit/s
• VPN: IKEv2, IPSec, SSL
• Ethernet LAN: multiple rates including 10/100/1000/2500 Mbit/s; total RJ-45 ports: 8
• Port speed options: 2.5 Gbps and 10 Gbps (software-defined)
• Integrated PoE+: up to 2 x 30 W ports
• Power consumption: max 22 W; heat dissipation: 58.75 BTU/h
• Weight: 1.52 kg
• Management: Nebula cloud management; uOS operating system
• EAN: 4718937622757

How to use

Install the Zyxel USG FLEX 200H at the network edge between your internet uplink and internal LAN to enforce security policies and provide VPN access. Use the software-defined ports to assign WAN or LAN roles according to your network layout, and connect PoE+ devices directly to the integrated PoE+ ports where applicable. Configure firewall rules, IPS, VPN profiles (IKEv2/IPSec/SSL) and content filtering either locally through the device interface or centrally via Nebula cloud management. Apply security profiles (sandboxing, anti-malware, DNS/IP/URL filtering, IPS, application patrol) according to your organisation’s security policy and performance needs.

Recommendations

For optimal performance, place the USG FLEX 200H on a dedicated network segment for perimeter security, keep the uOS and security signatures up to date, and monitor load and IPS throughput to adjust policies when necessary. Use Nebula for centralized updates and configuration consistency across multiple sites.
