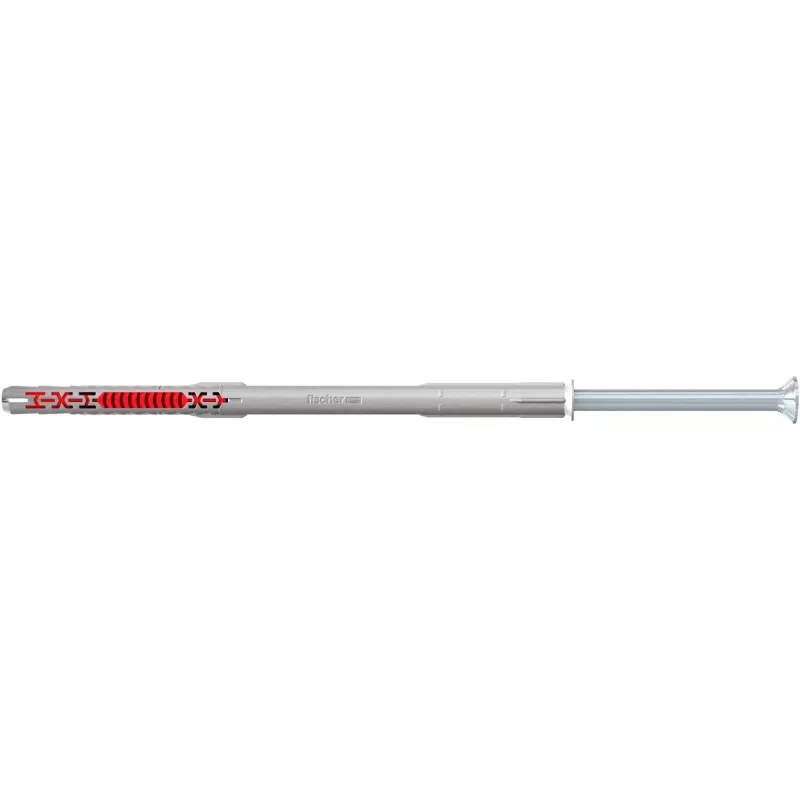

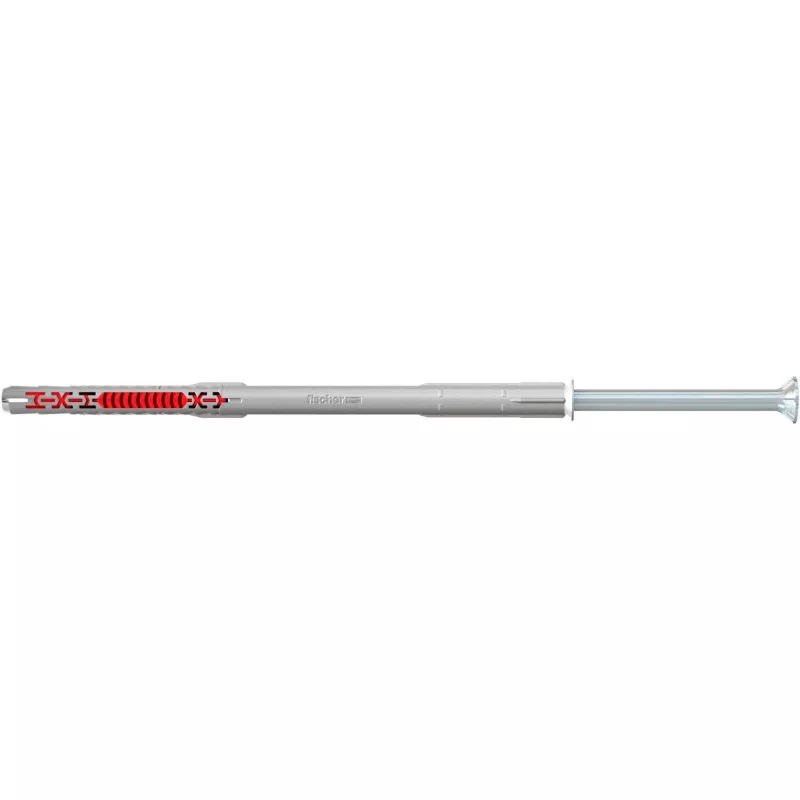

Fischer DuoXpand 10x200 T Tasselli per fissaggio telai 50 pz.

The Fischer DuoXpand 10x200 T is a high-performance frame fixing plug designed for secure and reliable fastening of facades, window and door frames, gates, squared timbers, and sub-constructions. This through-fixing plug features a 10 mm diameter and 200 mm length, with a Torx T40 drive countersunk head screw. Made from high-quality nylon and zinc-plated steel, it offers excellent corrosion protection and is suitable for a wide range of base materials including concrete, solid brick, perforated brick, aerated concrete, lightweight concrete, sand-lime solid brick, sand-lime perforated brick, and hollow block made from lightweight concrete. With ETA-07/0025 approval and fire resistance class R 120, this plug ensures safety and durability. Pack quantity: 50 pieces.

Advantages

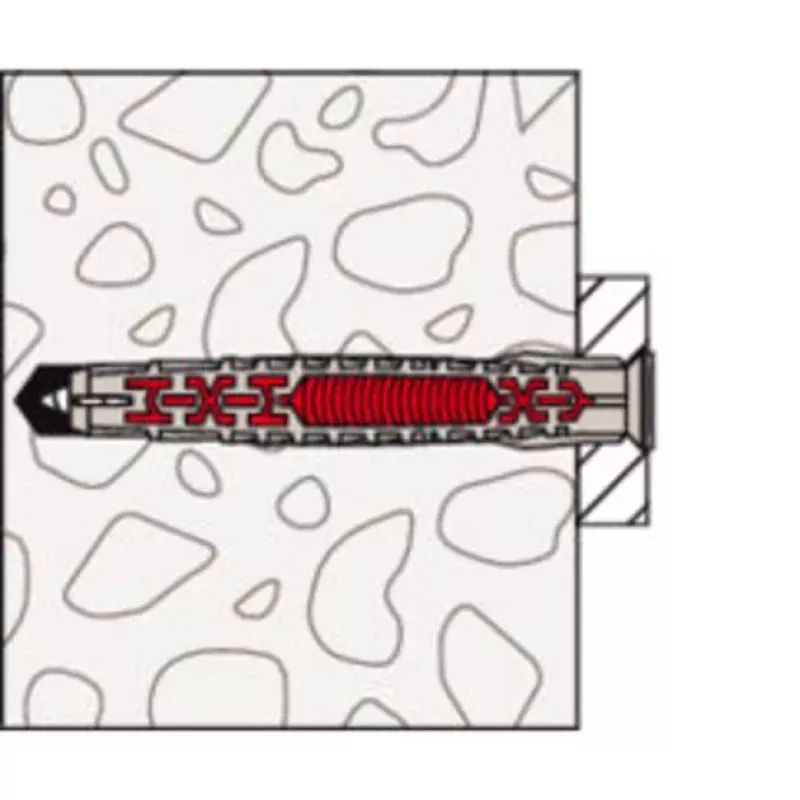

The DuoXpand system provides a unique two-zone expansion mechanism that ensures optimal load distribution and high pull-out resistance. The nylon plug expands in both the drill hole and the component, preventing rotation and ensuring a secure hold. The zinc-plated steel screw offers long-lasting corrosion protection, making it ideal for outdoor applications. The Torx drive reduces cam-out and allows for high torque transmission, simplifying installation.

Suitable for

• Facade systems
• Window and door frames
• Gates and fences
• Squared timbers and beams
• Sub-constructions for cladding

Key specifications

• Product Type: Frame Fixing Plug
• Plug Diameter: 10 mm
• Plug Length: 200 mm
• Screw Type: Countersunk Head Screw
• Screw Diameter: 7 mm
• Screw Length: 200 mm
• Drive Type: Torx (T40)
• Plug Material: High-quality Nylon
• Screw Material: Steel, Zinc-plated

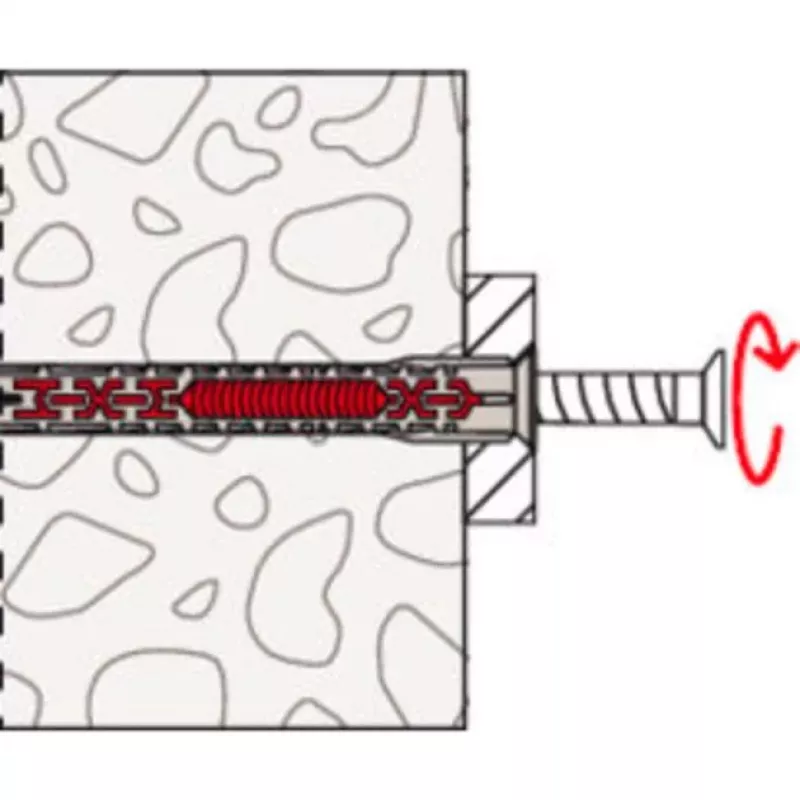

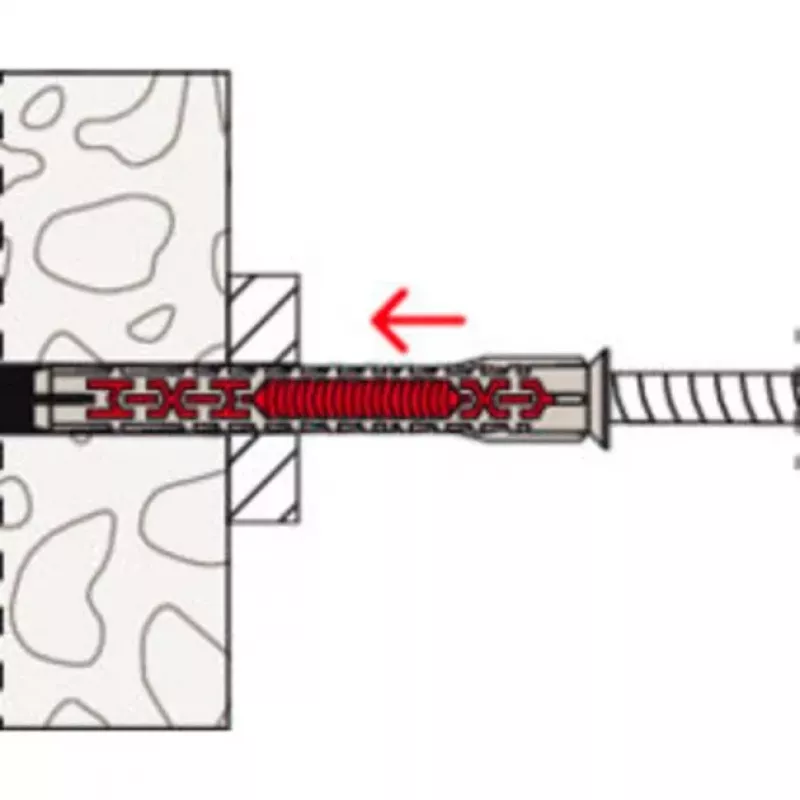

• Installation Method: Through-fixing
• Drill Hole Diameter: 10 mm
• Minimum Drill Hole Depth: 210 mm
• Effective Anchorage Depth: 70 mm
• Approvals: ETA-07/0025
• Fire Resistance: R 120
• Temperature Range: -40°C to +80°C (installation 0°C to +40°C)
• Pack Quantity: 50 pieces

Recommendations

For optimal performance, ensure the drill hole is clean and free of dust. Use the recommended drill bit diameter of 10 mm and drill to a minimum depth of 210 mm. The effective anchorage depth is 70 mm. Suitable for use in concrete (strength class C20/25 to C50/60), solid brick, perforated brick, aerated concrete, lightweight concrete, sand-lime solid brick, sand-lime perforated brick, and hollow block made from lightweight concrete. Not suitable for use in wood or metal.
