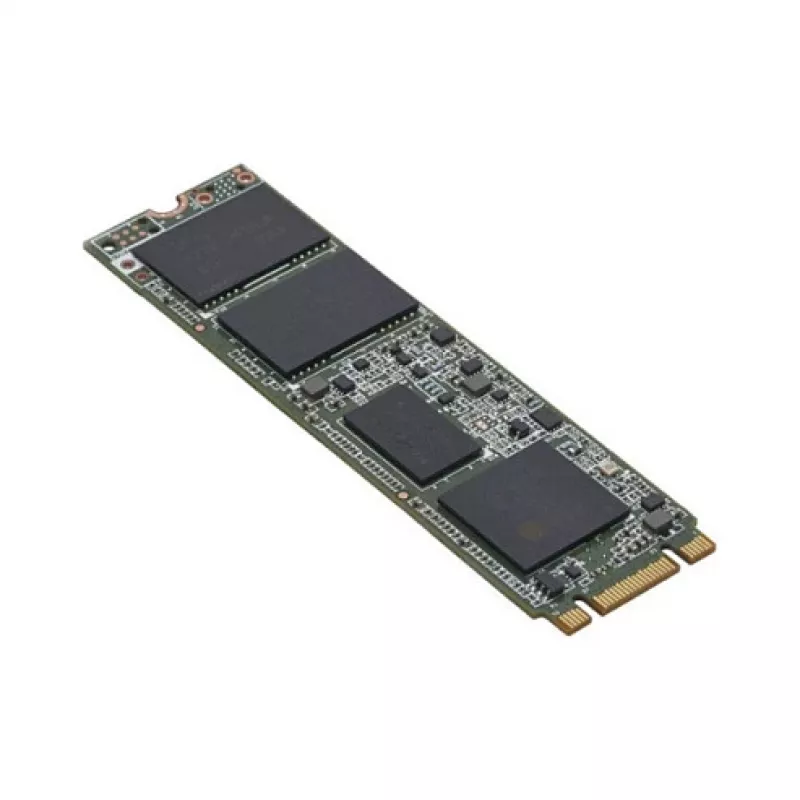

FSC Fujitsu 480GB M.2 2280 PCIe 4.0 NVMe SSD - disco a stato solido interno

Sequential read speeds up to 3500 MB/s redefine what's possible in a compact M.2 drive, making this FSC Fujitsu 480GB SSD a serious upgrade for any system. Built on PCIe Gen4 x4 NVMe 1.4, it leaves SATA SSDs far behind, slashing boot times and accelerating demanding applications.

Overview

This internal solid state drive combines a 480GB capacity with the M.2 2280 form factor, fitting seamlessly into modern laptops and desktops. It leverages 3D TLC NAND and the Phison PS5019-E19 controller to deliver consistent performance and endurance. Hardware-based AES 256-bit encryption with TCG Opal 2.0 support ensures your data remains protected, while TRIM and S.M.A.R.T. maintain long-term health and efficiency.

What stands out

• PCIe Gen4 x4 interface with NVMe 1.4 protocol for ultra-fast data transfer.
• Advanced 3D TLC NAND technology ensures durability and efficiency.
• Hardware-based AES 256-bit encryption with TCG Opal 2.0 support for data security.
• Compact M.2 2280 design fits easily into modern motherboards and laptops.
• High endurance with 240 TBW and 1.5 million hours MTBF.

Technical details

• Storage Capacity: 480 GB
• Form Factor: M.2 2280
• Interface: PCIe Gen4 x4 NVMe 1.4
• NAND Flash Type: 3D TLC
• Controller: Phison PS5019-E19
• Sequential Read Speed: Up to 3500 MB/s
• Sequential Write Speed: Up to 2800 MB/s
• TBW (Total Bytes Written): 240 TB
• MTBF: 1,500,000 hours
• Encryption: AES 256-bit, TCG Opal 2.0
• TRIM Support: Yes
• S.M.A.R.T. Support: Yes
• Operating Temperature: 0°C to 70°C
• Shock Resistance: 1500G (0.5ms half sine wave)
• Vibration Resistance (Operating): 2.17 Grms (7-800 Hz)
• Power Consumption (Active Read): Approx. 3.5 W
• Power Consumption (Active Write): Approx. 3.8 W
• Power Consumption (Idle): Approx. 0.03 W
• Endurance Rating: 0.3 Drive Writes Per Day (DWPD) for 5 years
• Warranty: 5-year limited warranty

Our verdict

For users seeking a high-performance storage solution without breaking the bank, this Fujitsu SSD delivers exceptional speed and reliability. Its PCIe 4.0 interface and robust encryption make it an excellent choice for both professionals and enthusiasts.
