GESIPA PolyGrip rivetto cieco 4,8 x 17,0 mm alluminio/acciaio, 500 pezzi 1433833

Blind rivet with a wide grip range for multi-material fastening. The PolyGrip series combines an aluminium rivet body with a steel mandrel, offering reliable clamping for varying material thicknesses.

Advantages

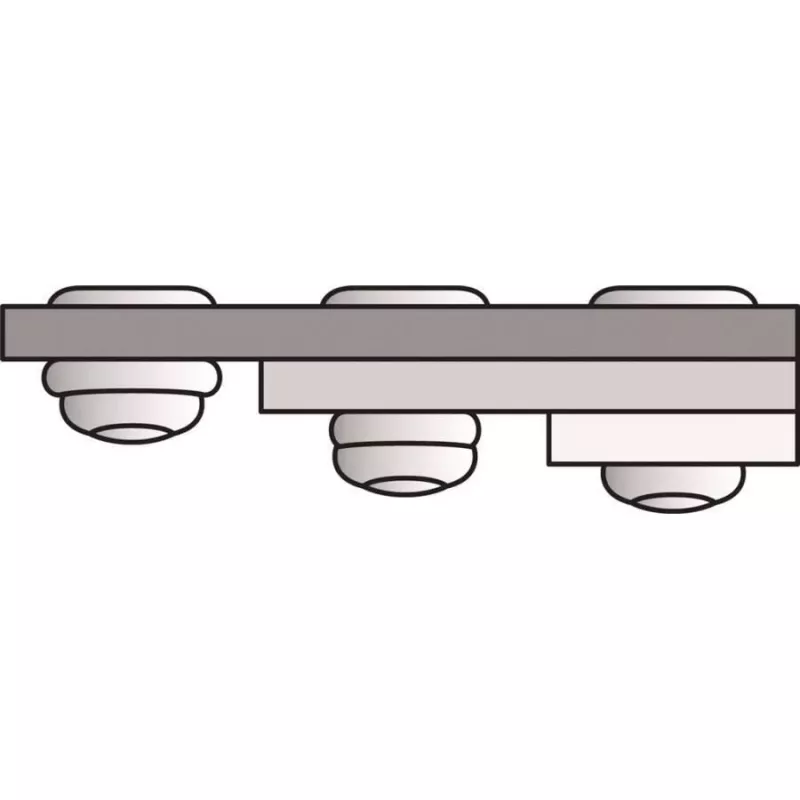

Wide grip range of 10.0–14.0 mm covers multiple sheet thicknesses with one rivet size. Dome head provides a clean finished appearance. Zinc-plated steel mandrel ensures consistent setting performance.

Suitable for

• Joining dissimilar materials such as metal to plastic or composite
• Applications where grip range variability is required
• Assembly work in sheet metal, automotive, and general manufacturing

Key specifications

• Rivet diameter: 4.8 mm
• Rivet length: 17.0 mm
• Grip range: 10.0–14.0 mm
• Drill hole diameter: 4.9–5.1 mm
• Head diameter: 9.5 mm
• Shear strength: 1.8 kN
• Tensile strength: 2.3 kN
• Rivet body material: Aluminium
• Mandrel material: Steel, zinc-plated
• Pack quantity: 500 pieces

Recommendations

Select the correct grip range based on total material thickness. Use a rivet tool with appropriate nosepiece for 4.8 mm rivets.
