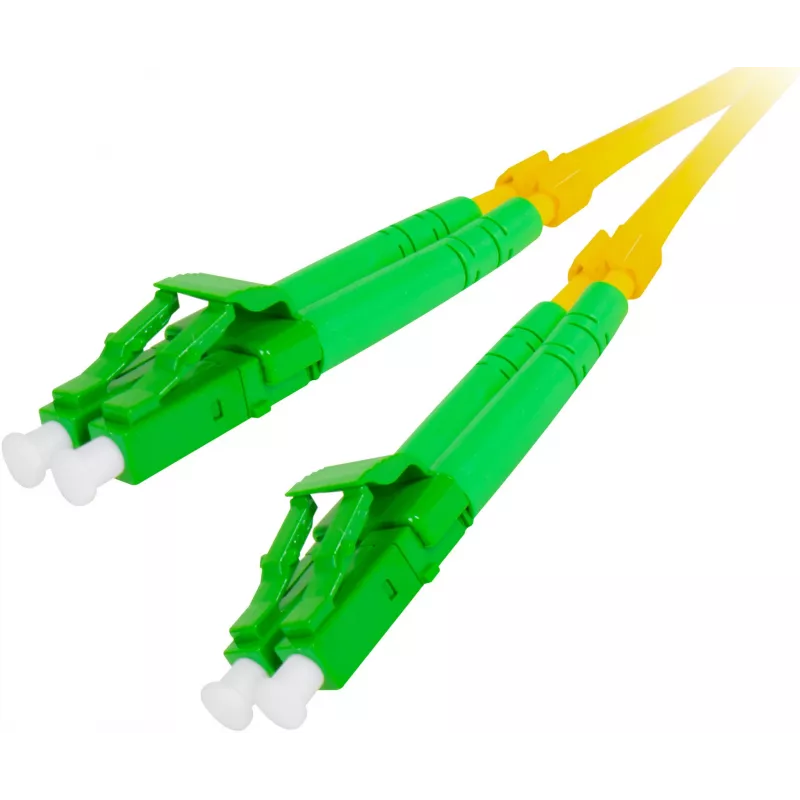

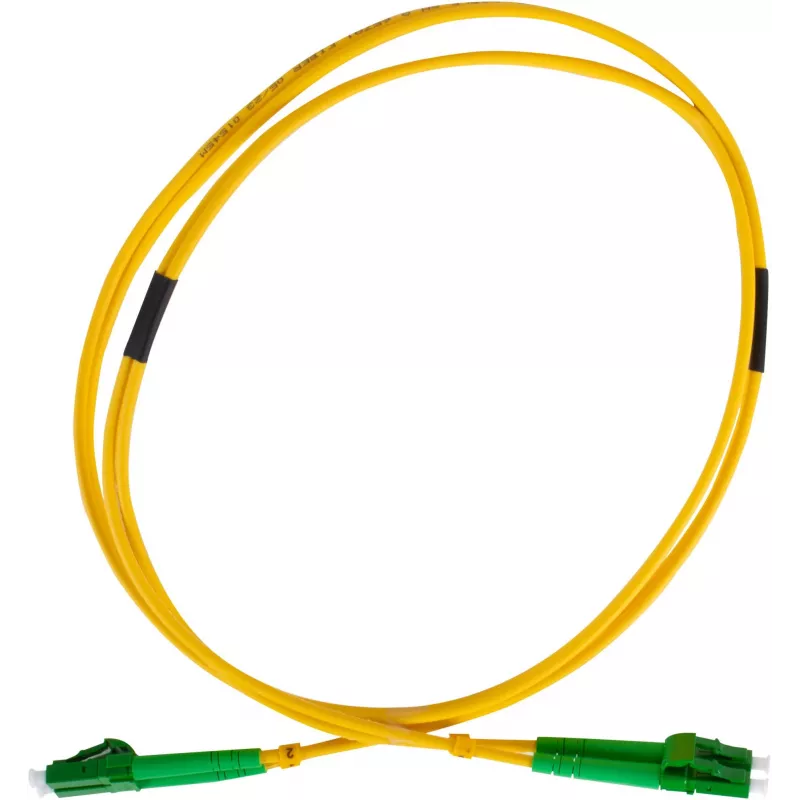

GETFORT cavo patch in fibra ottica SM LC/APC a LC/APC duplex 2m

The GETFORT GF-LALAD2 is a high-quality single-mode fiber optic patch cable designed for reliable and high-speed data transmission. With LC/APC connectors on both ends and a duplex configuration, this 2-meter cable is ideal for FTTH, CATV, and telecommunication networks. It features a yellow LSZH jacket for safety and durability, ensuring low smoke and zero halogen emissions.

Advantages

This patch cable offers low insertion loss (≤0.2 dB) and high return loss (≥60 dB), ensuring excellent signal integrity. The APC polish minimizes back reflection, making it perfect for applications requiring high precision. The LSZH jacket provides enhanced safety in enclosed spaces.

Suitable for

• Fiber optic network installations
• Data centers and server rooms
• Telecommunication systems
• FTTH (Fiber to the Home) connections
• CATV networks

Key specifications

• Fiber Mode: Single-mode (9/125 µm)
• Connector Type: LC/APC to LC/APC
• Cable Configuration: Duplex
• Cable Length: 2 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.2 dB (typical)
• Return Loss: ≥ 60 dB (typical)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 30 mm
• Durability: 500 mating cycles
• Standards: RoHS, CE, IEC 61754-20, TIA/EIA-604-10A

Recommendations

For optimal performance, ensure connectors are clean before mating. Avoid sharp bends exceeding the minimum bend radius. This cable is compatible with all standard LC/APC interfaces.
