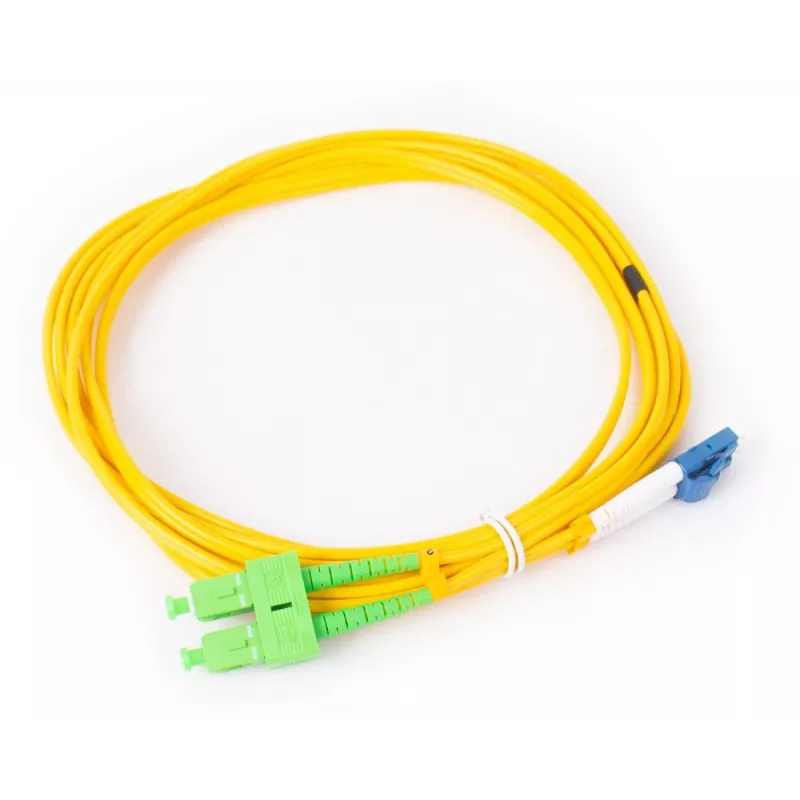

GETFORT Cavo patch in fibra ottica SM SC/APC su LC/UPC duplex 3m (9,84ft) LSZH giallo

The GETFORT GF-LUSAD3 is a high-quality single-mode fiber optic patch cord designed for reliable and low-loss connections in FTTH, data centers, and telecommunications networks. This duplex cable features SC/APC connectors on one end and LC/UPC connectors on the other, providing a versatile solution for linking different network equipment. With a length of 3 meters (9.84 feet), it offers flexibility in cable management while maintaining excellent signal integrity.

Advantages

This patch cord ensures minimal insertion loss (≤0.3 dB) and high return loss (≥60 dB for SC/APC, ≥50 dB for LC/UPC), guaranteeing superior performance for critical applications. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire, making it suitable for indoor installations. The ceramic ferrule connectors provide durability and stable optical coupling.

Suitable for

• Fiber-to-the-home (FTTH) installations
• Data center patching and cross-connects
• Telecommunications and broadband networks
• Local area networks (LAN) and wide area networks (WAN)
• Test equipment and measurement setups

Key specifications

• Fiber Mode: Single-mode (SM) 9/125 µm

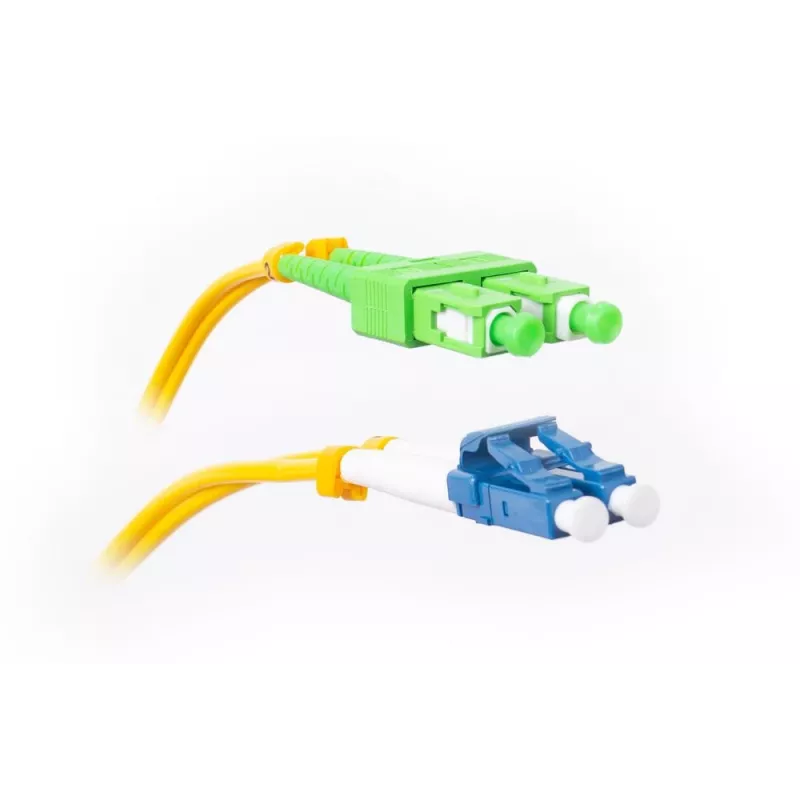

• Connector A: SC/APC
• Connector B: LC/UPC
• Cable Configuration: Duplex
• Cable Length: 3 m (9.84 ft)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: SC/APC ≥ 60 dB, LC/UPC ≥ 50 dB
• Cable Diameter: 2.0 mm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Ferrule Material: Ceramic
• Polarity: A-B
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before mating. Avoid sharp bends exceeding the minimum bend radius. This patch cord is ideal for use with GPON, EPON, and active Ethernet systems.
