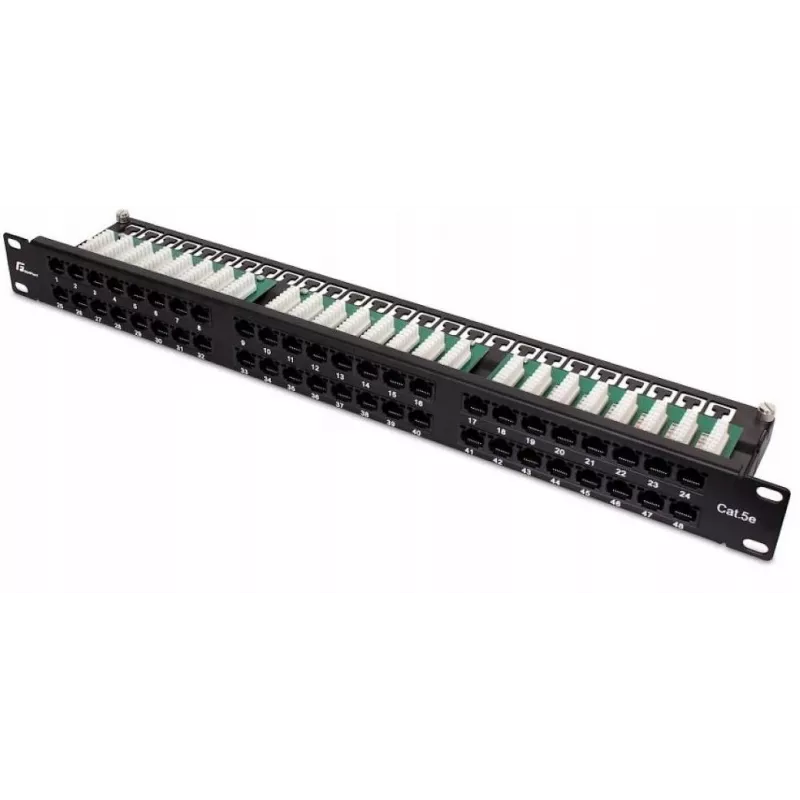

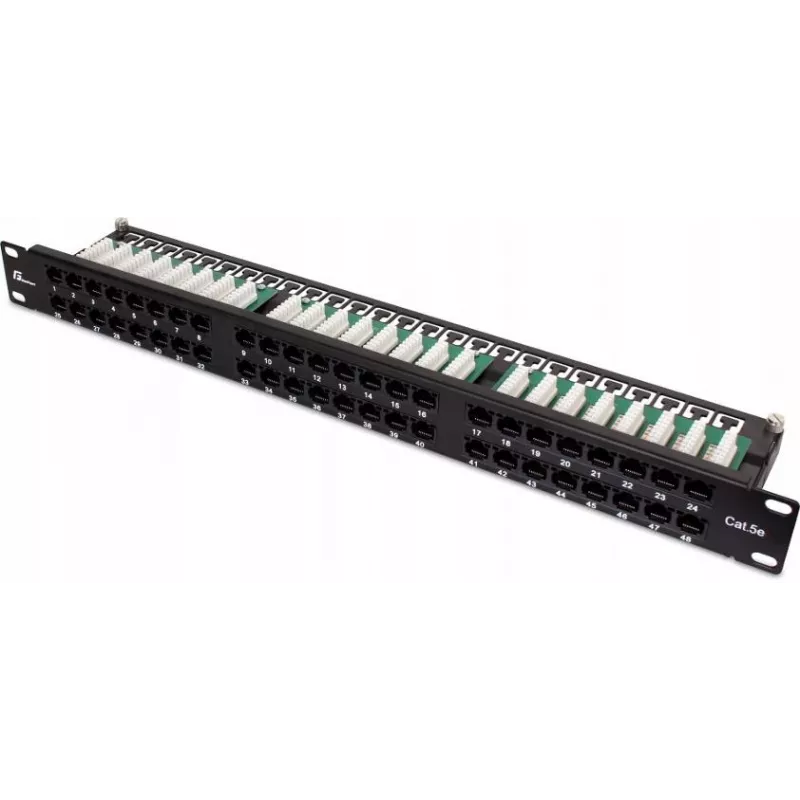

GETFORT PGF-5EUTP48-B9 patch panel UTP Cat.5e 48 porte 2U 19" per montaggio rack nero

The GETFORT PGF-5EUTP48-B9 is a high-performance 48-port UTP patch panel designed for structured cabling in data centers and network closets. It supports Cat.5e standards, ensuring reliable Gigabit Ethernet connectivity for your network infrastructure.

Advantages

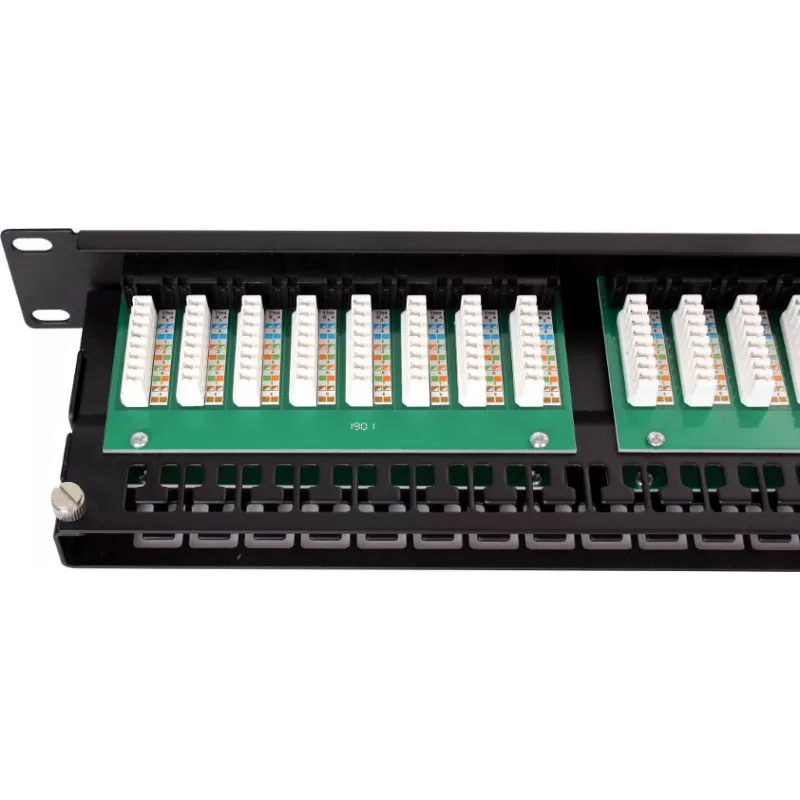

This patch panel offers a cost-effective solution for high-density patching with 48 ports in a compact 2U form factor. The IDC termination blocks support T568A/B wiring schemes, making installation quick and efficient. The robust SPCC steel housing provides durability, while the phosphor bronze contacts with 50 micro-inch gold plating ensure long-term signal integrity.

Suitable for

• Data center cabling infrastructure
• Enterprise network closets
• Telecommunications rooms
• LAN and WAN patching applications

Key specifications

• Number of Ports: 48
• Cable Type: UTP (Unshielded Twisted Pair)
• Performance Category: Cat.5e
• Mounting: 19-inch Rackmount, 2U
• Termination: IDC, supports 22-26 AWG solid or stranded
• Wiring Scheme: T568A/B
• Data Transfer Rate: Up to 1000 Mbps
• Housing Material: SPCC Steel
• Contact Material: Phosphor Bronze with 50 micro-inch gold plating
• Color: Black
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -40°C to 70°C
• Humidity: 10% to 90% RH (non-condensing)
• Certifications: RoHS, CE

Recommendations

For optimal performance, use with Cat.5e or higher rated patch cables and ensure proper cable management. The included cable ties and mounting screws facilitate easy installation.
