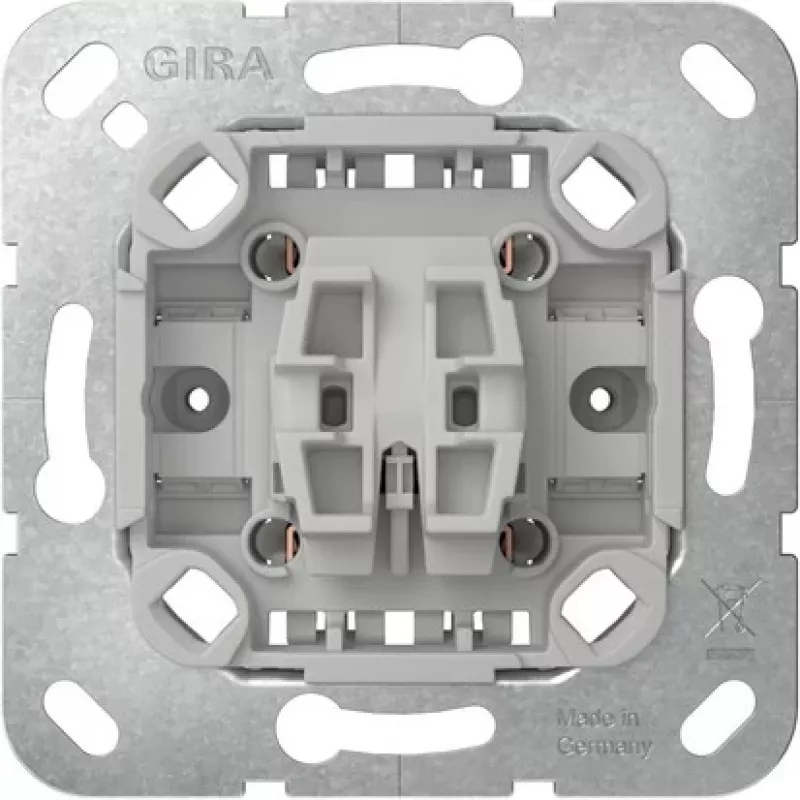

GIRA 381700 meccanismo deviatore, da incasso, 10 A, 250 V, morsetti a vite, senza ganci, per System 55

Electricians and installers use the GIRA 381700 intermediate switch insert to control lighting from three or more switching points in residential and commercial buildings. It fits flush-mounted boxes and is compatible with Gira System 55 rockers and frames.

Key specifications

• Switch function: intermediate switch (cross switch)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: screw terminals
• Number of terminals: 4
• Mounting: screw fixing without claws
• Installation type: flush-mounted (Unterputz)
• Material: thermoplastic
• Protection class: IP20
• Operating temperature: -20 to +40 °C
• Certification: VDE
• Switch type: rocker switch (supports 1 rocker)
• Compatibility: Gira System 55 (E2, Event, Esprit, Standard 55, F100)

Why choose it

This insert provides reliable mechanical switching for multi-point lighting circuits. Its screw terminals ensure secure connections, and the robust thermoplastic housing withstands daily use.

Ideal use cases

• Staircases with multiple control points
• Long corridors in offices or hotels
• Large rooms requiring convenient switching

Good to know

A compatible rocker and frame are required but not included. The switch is VDE certified and designed for indoor use only.
