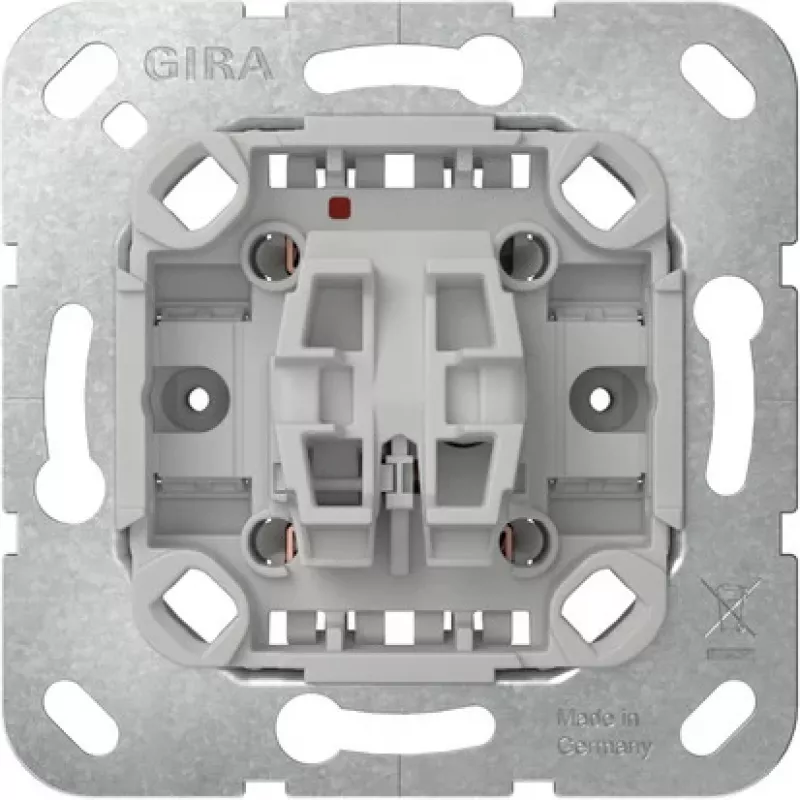

GIRA 383600 inserto pulsante, 1 polo commutatore, 10 AX, 250 V AC, da incasso

Electricians and installers use the GIRA 383600 push-button switch insert as the functional core behind compatible rockers in Gira System 55, E2, Event, Esprit, Standard 55, Flächenschalter, S-Color, and TX_44 frames. It provides momentary switching for lighting or bell circuits in residential and commercial buildings.

Key specifications

• Switch function: push-button (momentary)
• Contact configuration: 1-pole changeover (SPDT)
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Mounting type: flush-mounted
• Connection type: screw terminals
• Conductor cross-section: up to 2.5 mm² (rigid and flexible)
• Material: thermoplastic, halogen-free
• Protection class: IP20
• Operating temperature: -20 °C to +40 °C
• Number of terminals: 3 (common, normally open, normally closed)

Why choose it

The insert installs quickly with screw fixing and no spreading claws, and its screw terminals accept both rigid and flexible conductors up to 2.5 mm². The halogen-free thermoplastic housing suits modern building requirements.

Ideal use cases

• Momentary switching of lighting circuits
• Bell or signal control in residential installations
• Integration into Gira switch ranges with compatible rockers

Good to know

The insert requires a separate rocker and frame from the Gira System 55 family. It carries VDE and CE marks.
