GIRA 386700 interruttore a pulsante a bilanciere 4 vie inserto contatto NO

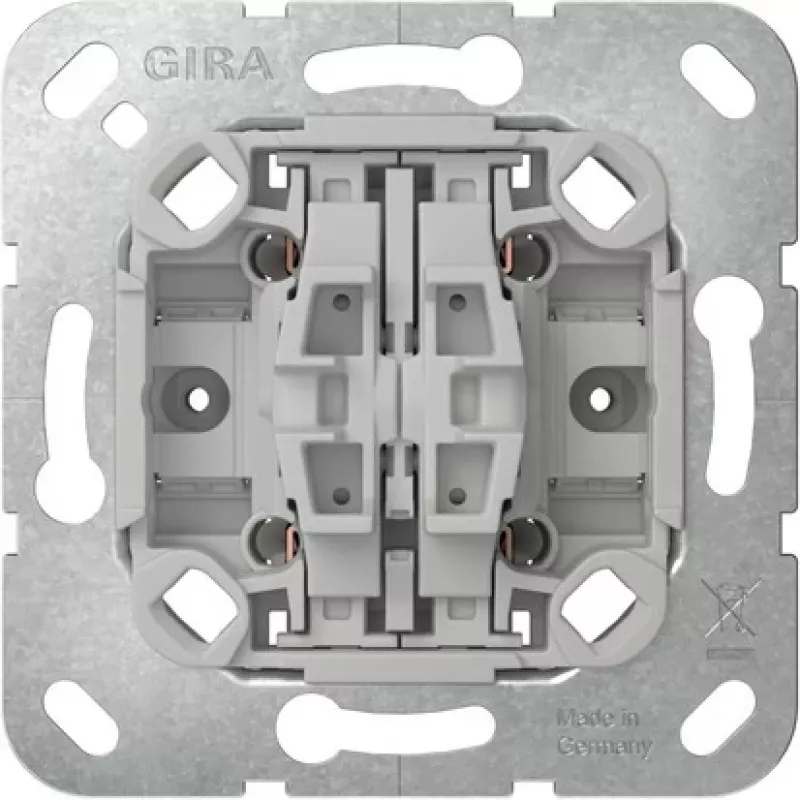

This GIRA 386700 is a 4-fold rocker push-button switch insert with normally open contacts, designed for flush-mounted installation. Unlike standard switches that maintain state, this momentary switch returns to its original position after actuation, making it ideal for applications like stairwell lighting, doorbells, or impulse-controlled circuits. The insert is supplied without rocker covers and frame, allowing you to choose from Gira's range of compatible covers to match your interior design.

Highlights

• 4-fold rocker push-button switch insert
• Normally open (NO) contact type
• Momentary switching function
• Screw fixing without claws for secure mounting
• Compatible with Gira System 55, E2, Event, Esprit, Standard 55, and S-Color ranges

In daily use

The switch insert fits into standard flush-mounted boxes and connects via screw terminals. Each of the four rocker positions operates independently, providing a momentary contact closure when pressed. The insert is rated for 250 V AC and 10 A, suitable for controlling lighting or signaling circuits. The thermoplastic housing ensures durability and electrical insulation.

Full specifications

• Switch type: Rocker push-button switch
• Contact type: Normally open (NO)
• Number of contacts: 4-fold
• Function: Momentary
• Mounting type: Insert
• Fixing method: Screw fixing (without claws)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Material: Thermoplastic (PC)
• Installation type: Flush-mounted
• Compatibility: Gira System 55, E2, Event, Esprit, Standard 55, S-Color
• Required accessories: Rocker/cover and frame (sold separately)
• Certifications: VDE

Final note

For a complete switch, pair this insert with a compatible Gira rocker cover and frame from the same design line.
