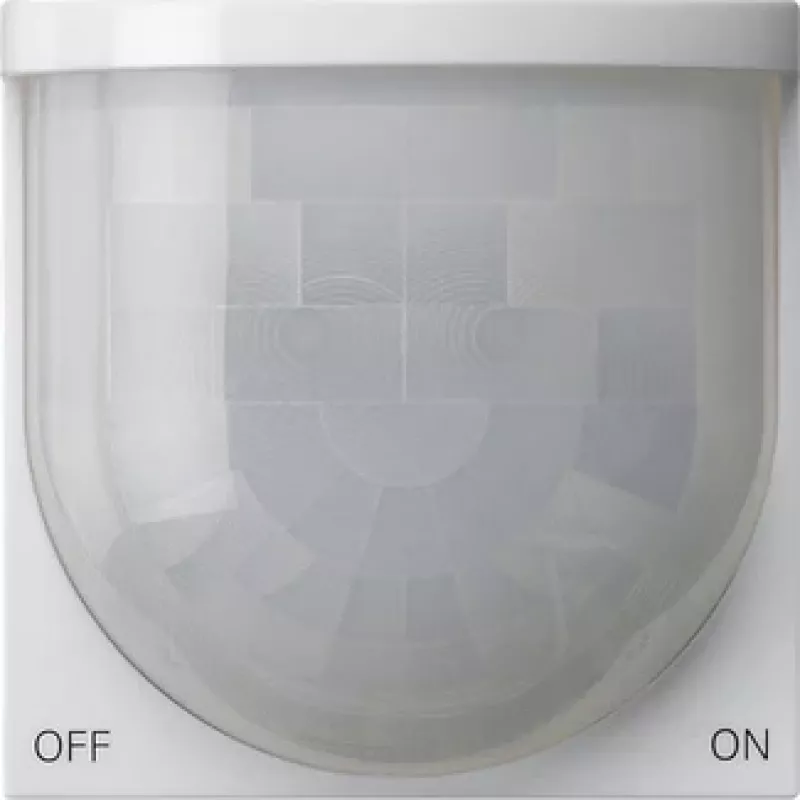

Gira KNX Rilevatore di movimento 2,20 m standard 204103

KNX motion detector with integrated brightness and temperature sensors, designed for flush-mounted installation at a recommended height of 2.20 m. It provides reliable motion and presence detection for intelligent building automation.

Advantages

Combines motion detection, presence detection, constant light control, HVAC control, alarm function, and staircase light function in a single device. The high-resolution detection area with 5 levels and 460 segments ensures precise coverage.

Suitable for

• Office and commercial buildings
• Residential automation projects
• Corridors, staircases, and open areas

Key specifications

• System technology: KNX
• Detection angle: approx. 180°
• Detection range: approx. 12 m diameter at 2.20 m mounting height
• Brightness sensor: 10–2000 lux
• Temperature sensor: integrated
• Protection class: IP20
• Colour: pure white glossy
• Material: thermoplastic, shatterproof

Recommendations

For optimal performance, install at the recommended height and configure via ETS software to suit your automation needs.
