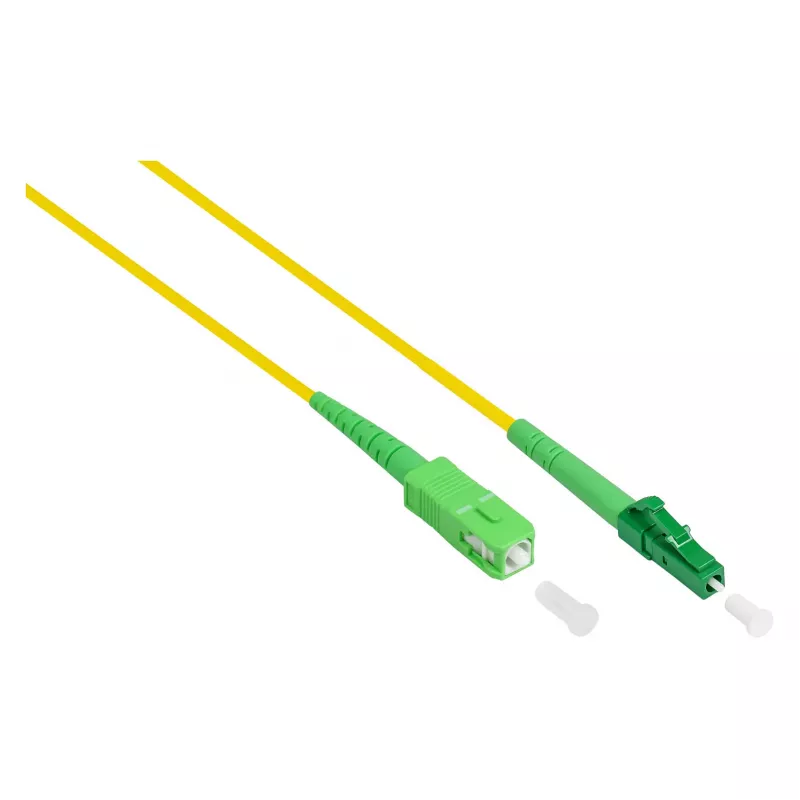

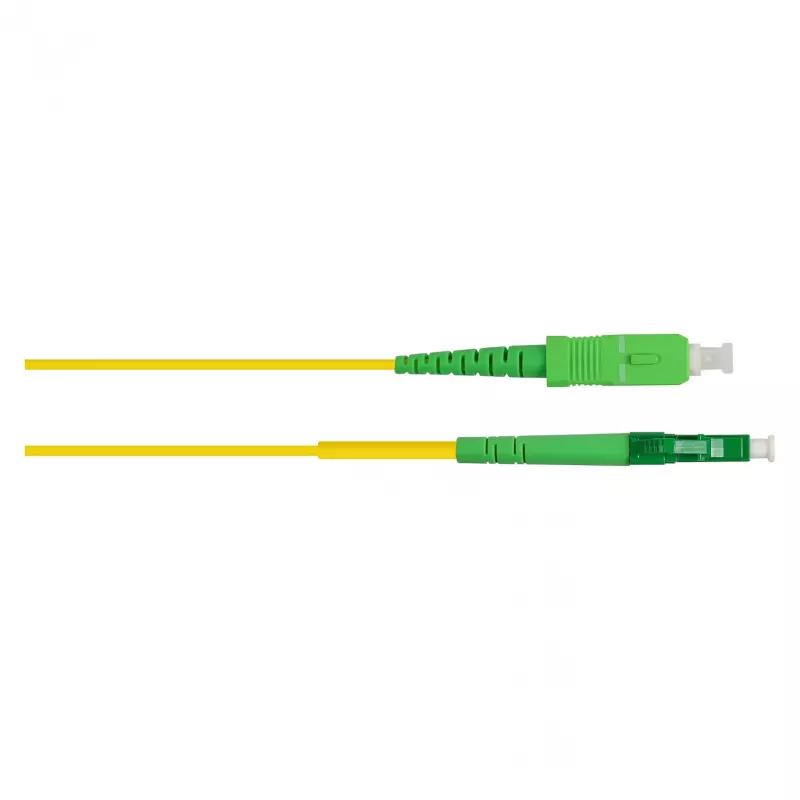

Good Connections cavo patch in fibra ottica OS2 simplex LC/SC SM 9/125 1m giallo

The Good Connections OS2 LWL Simplex Patch Cable LC/SC SM 9/125 1m is a high-performance fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, and enterprise networks. With LC to SC connectors, OS2 single-mode fiber, and a 1-meter length, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers superior performance with low attenuation and high return loss, ensuring minimal signal degradation. The LSZH jacket provides safety in enclosed spaces, while the yellow color indicates single-mode fiber for easy identification. Simplex design allows for individual fiber connections, ideal for point-to-point links.

Suitable for

• Gigabit Ethernet and 10 Gigabit Ethernet networks
• Fibre Channel storage area networks
• Data center interconnects
• Telecommunications infrastructure
• FTTx and campus networks

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode (OS2)
• Connector A: LC
• Connector B: SC
• Core/Cladding: 9/125 µm
• Length: 1 m
• Structure: Simplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Insertion Loss: < 0.3 dB
• Return Loss: > 50 dB
• Operating Temperature: -20°C to +70°C
• Attenuation: ≤ 0.35 dB/km @ 1310nm, ≤ 0.25 dB/km @ 1550nm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for short-distance single-mode connections within racks or between patch panels. Pair with Good Connections adapters and couplers for a complete solution.
